Transaxle Support Insulator - Lower, Front: Removal

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the splash shield.

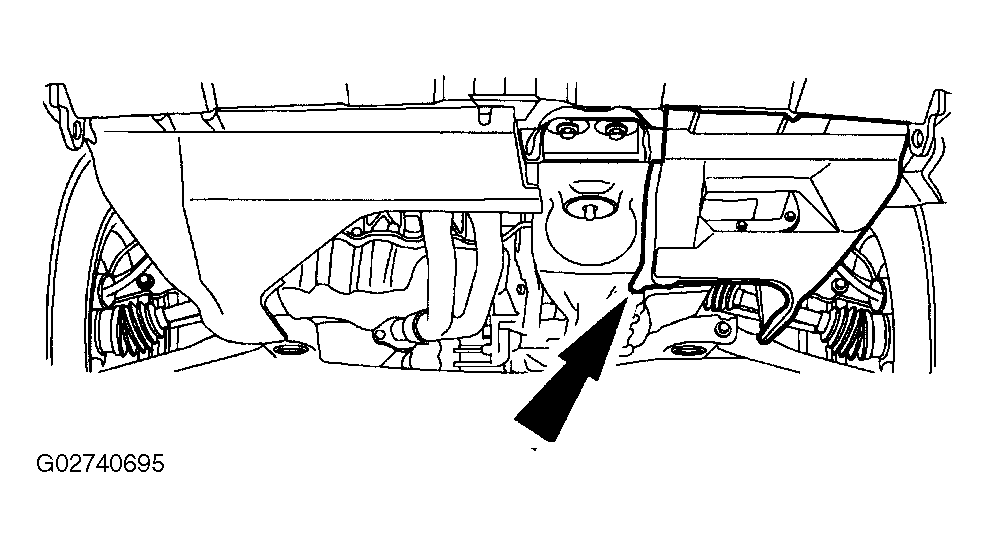

Fig 1: Removing Splash Shield
Courtesy of FORD MOTOR CO.
Remove the cross brace.

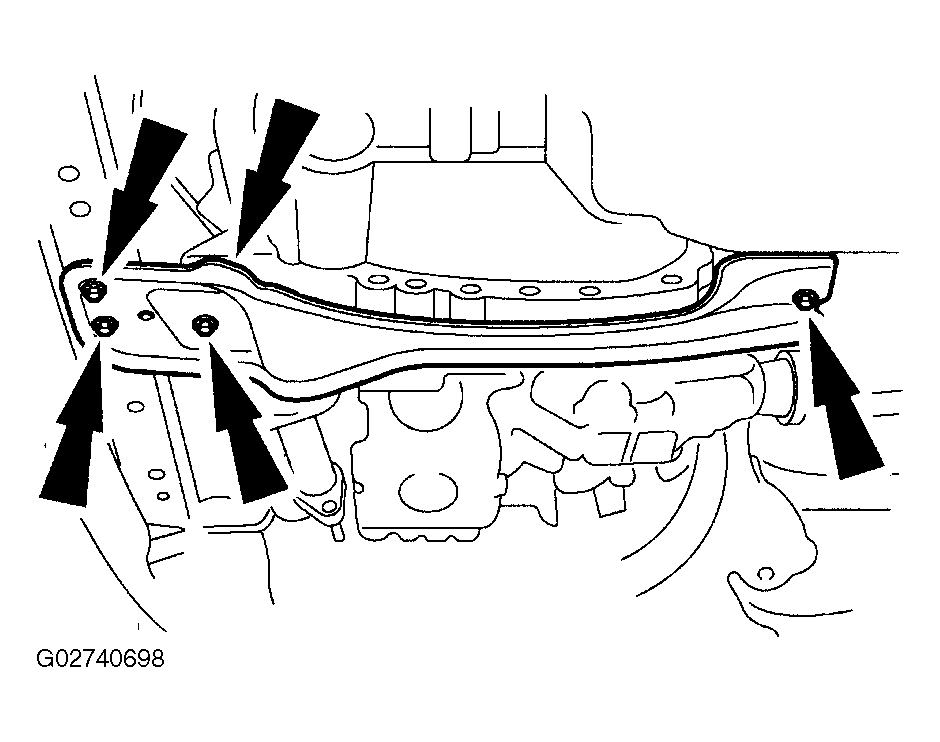

Fig 2: Removing Cross Brace
Courtesy of FORD MOTOR CO.
Remove the lower vibration dampener.

Fig 3: Removing Lower Vibration Dampener
Courtesy of FORD MOTOR CO.
Remove the cross brace.

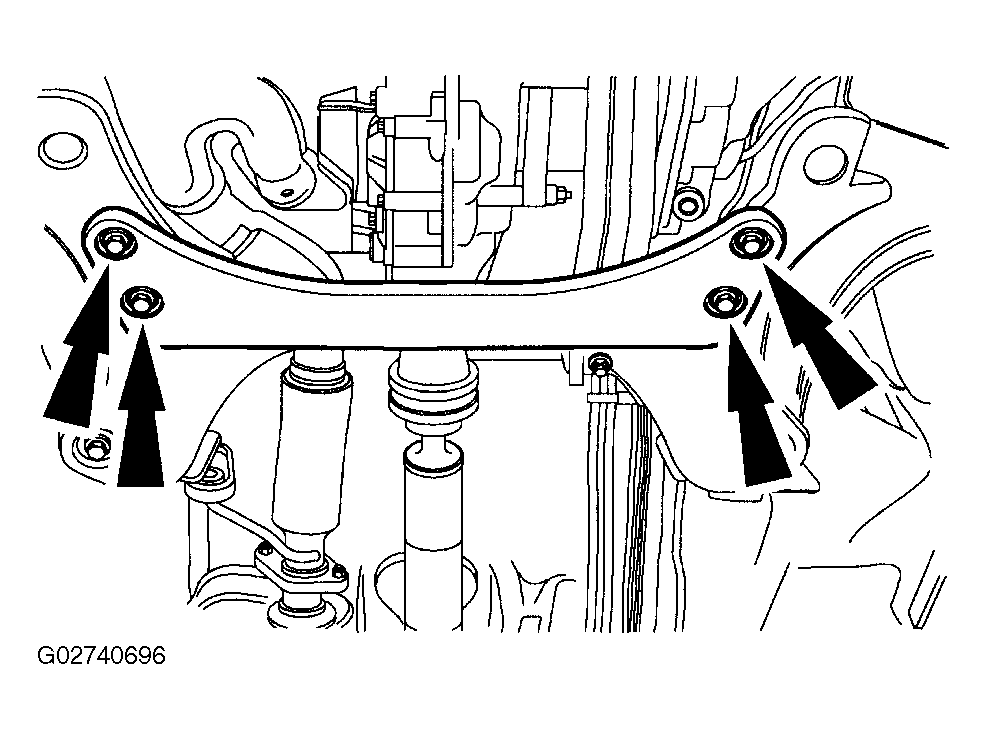

Fig 4: Removing Cross Brace
Courtesy of FORD MOTOR CO.
Remove the top and bottom mount cups.

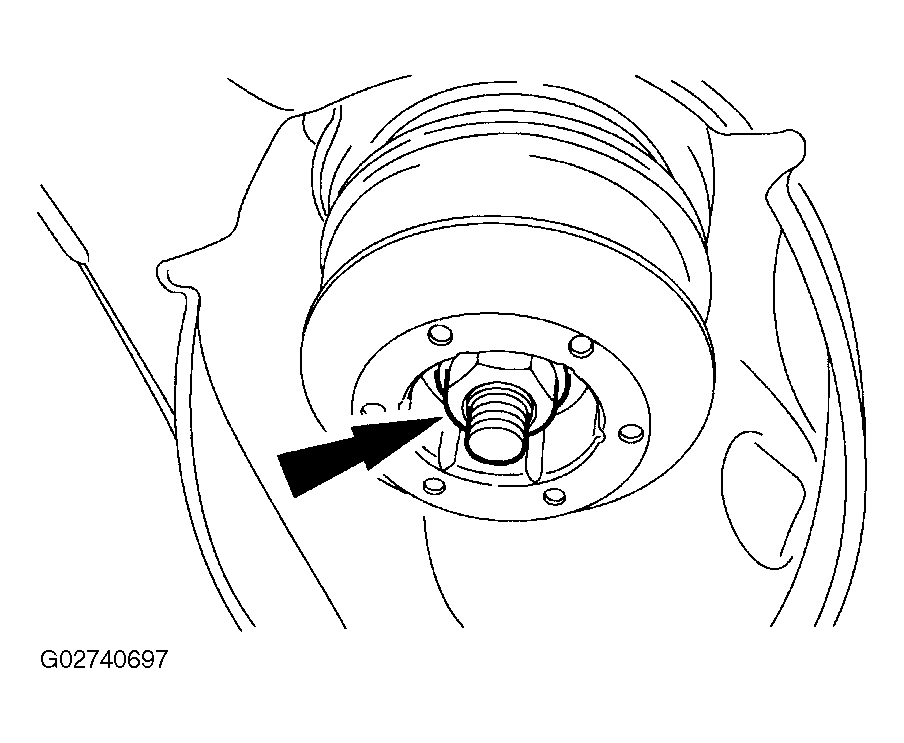

Fig 5: Removing Top And Bottom Mount Cups
Courtesy of FORD MOTOR CO.
Remove the rubber mount.

Fig 6: Removing Rubber Mount
Courtesy of FORD MOTOR CO.
