Output Shaft Speed (OSS) Sensor: Removal

  1. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  2. Remove the LH front wheel.
  3. Remove the splash shield.

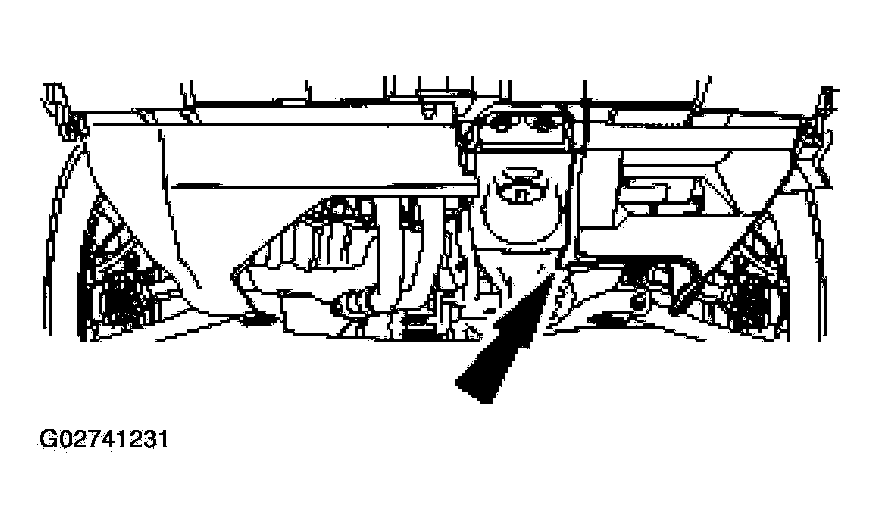

    Fig 1: Removing Splash Shield
    G02741231Courtesy of FORD MOTOR CO.
  4. Remove the output shaft speed (OSS) sensor.
    • Disconnect the OSS sensor electrical connector.
    • Remove the bolt.
    • Inspect the OSS bore.

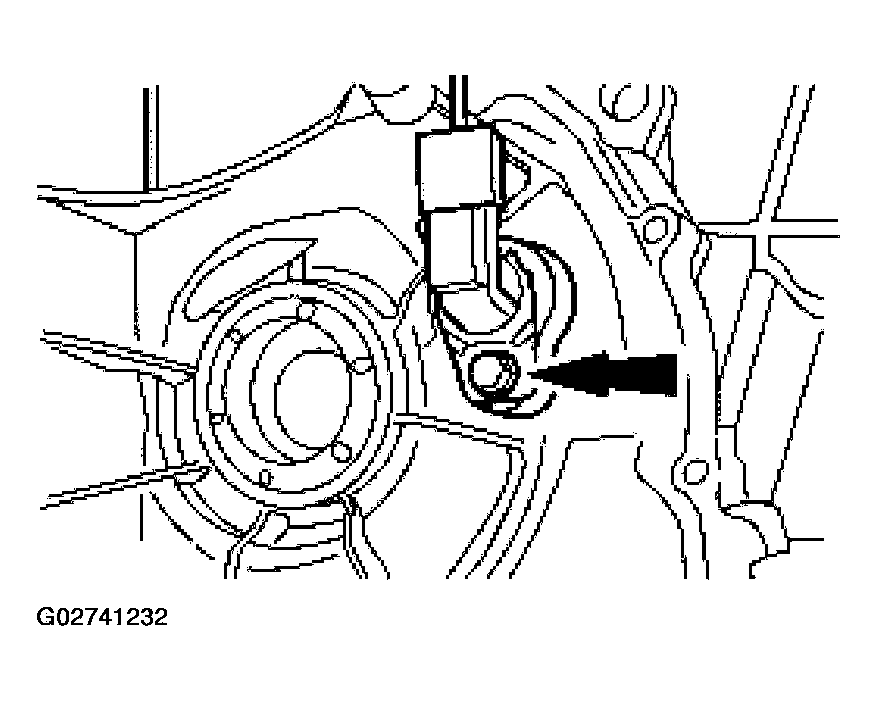

    Fig 2: Removing Output Shaft Speed (OSS) Sensor
    G02741232Courtesy of FORD MOTOR CO.
  5. Inspect the O-ring seal for nicks or cuts. Install a new seal as necessary.
    Fig 3: Locating O-Ring Seal
    G02741233Courtesy of FORD MOTOR CO.
