Reverse Clutch: Material

MATERIAL

Item	Specification
Mercon® Multi-Purpose Automatic Transmission Fluid XT-2-QDX	MERCON®

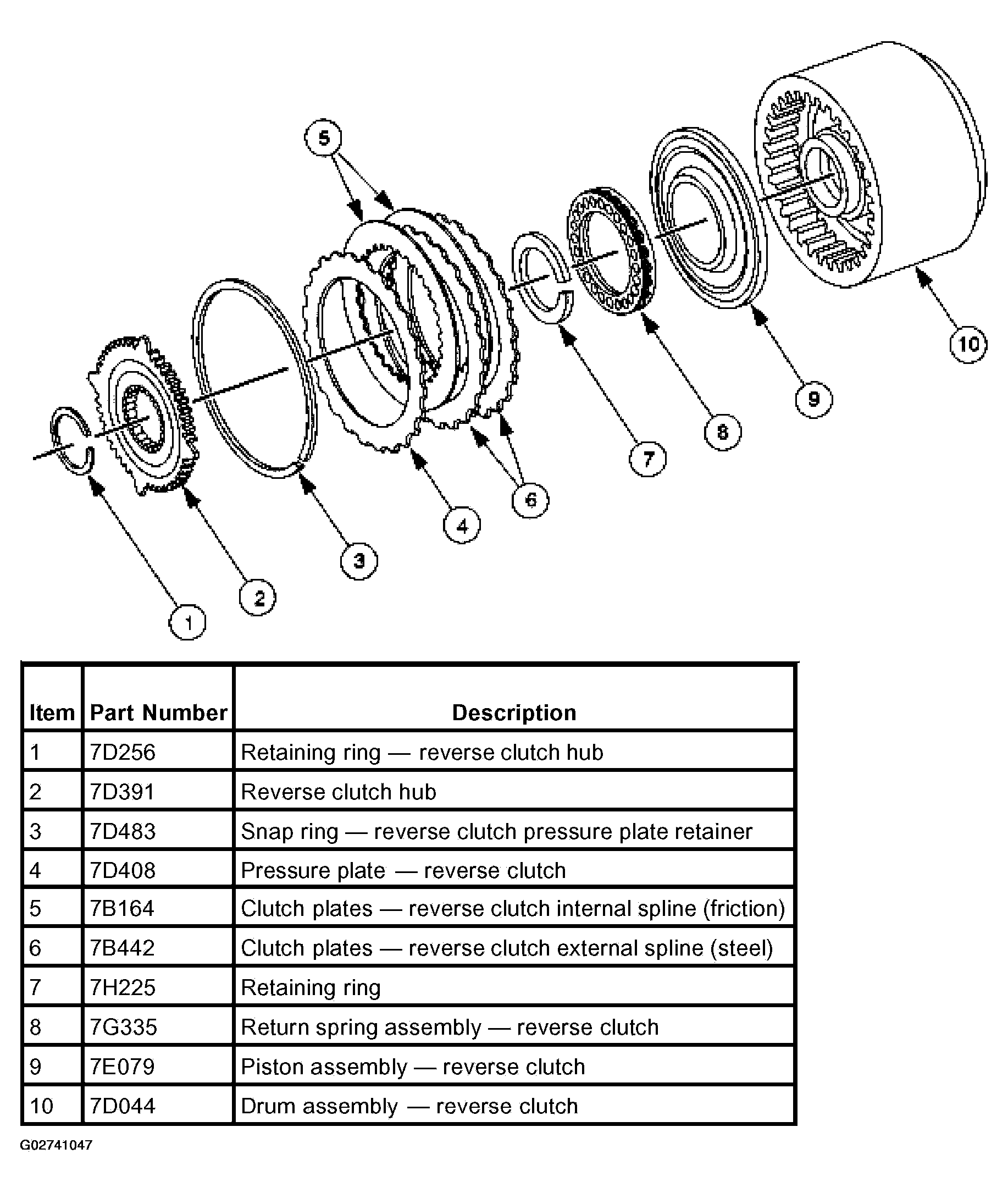

Fig 1: Exploded View Of Reverse Clutch

G02741047

Courtesy of FORD MOTOR CO.
