Selector Lever Cable: Removal

NOTE: LH drive shown; RH drive similar.
  1. Remove the upper steering column shroud.

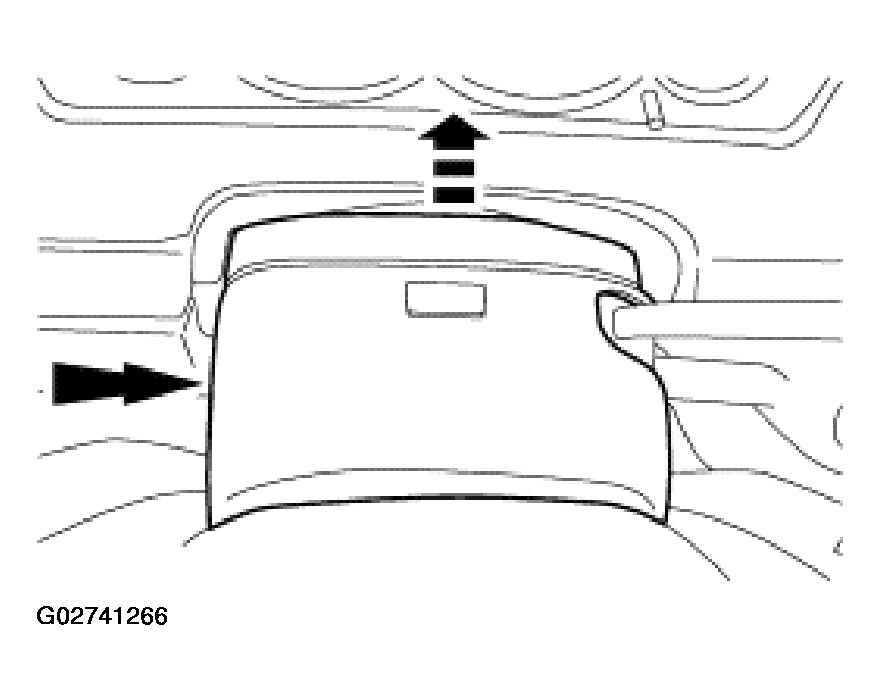

    Fig 1: Removing Upper Steering Column Shroud
    G02741266Courtesy of FORD MOTOR CO.
  2. Remove the lower steering column shroud.
    1. Remove the screws.
    2. Remove the lower steering column shroud.

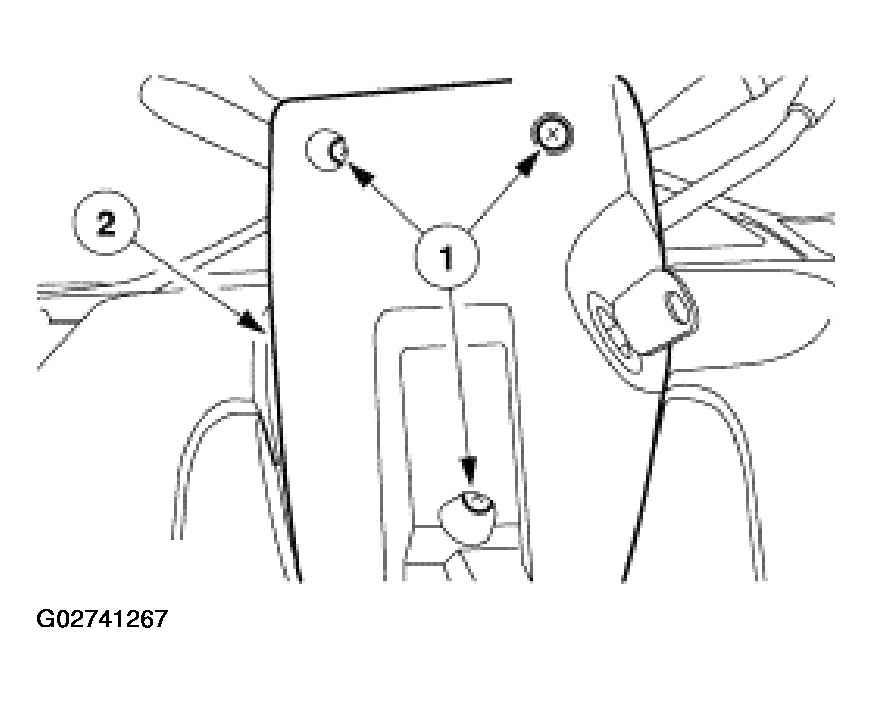

    Fig 2: Removing Lower Steering Column Shroud
    G02741267Courtesy of FORD MOTOR CO.
  3. Disconnect the gearshift cable from the steering column bracket.
    1. Disconnect the gearshift cable from the gearshift lever.
    2. Disconnect the gearshift cable from the steering column bracket.

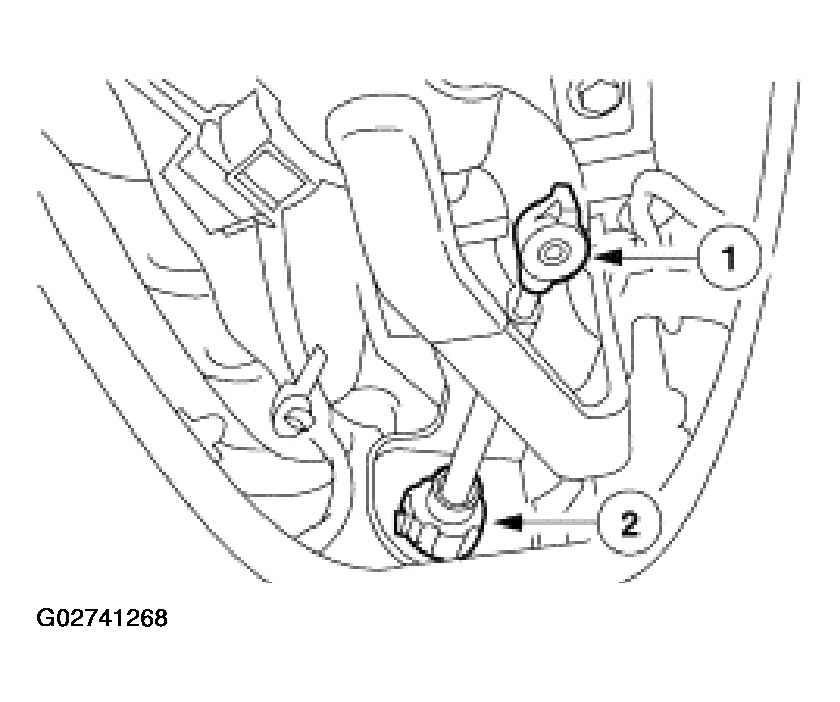

    Fig 3: Disconnecting Gearshift Cable From Steering Column Bracket
    G02741268Courtesy of FORD MOTOR CO.
  4. Remove the gearshift cable nuts.

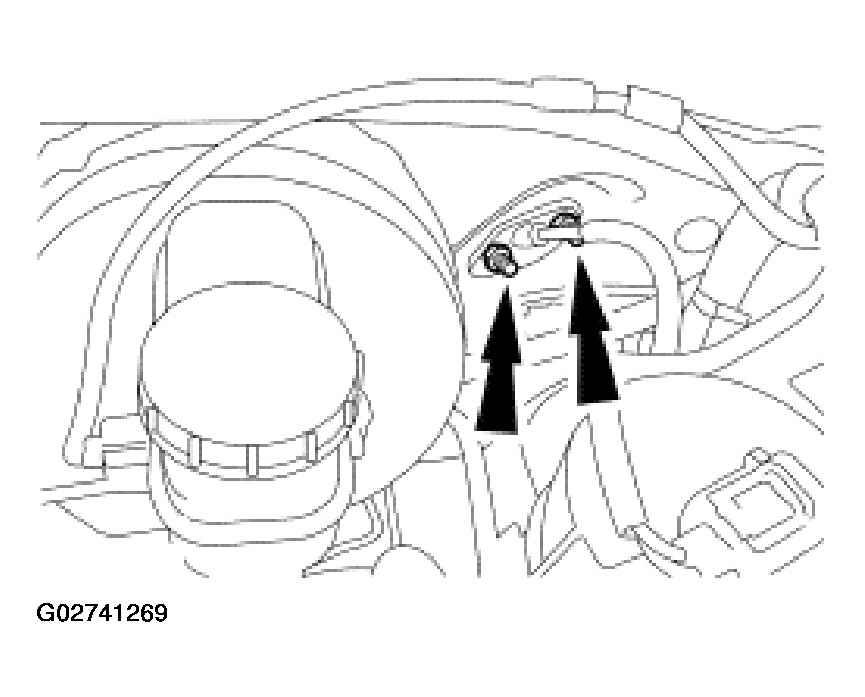

    Fig 4: Removing Gearshift Cable Nuts
    G02741269Courtesy of FORD MOTOR CO.
  5. Detach the gearshift cable from the transaxle shifter lever.

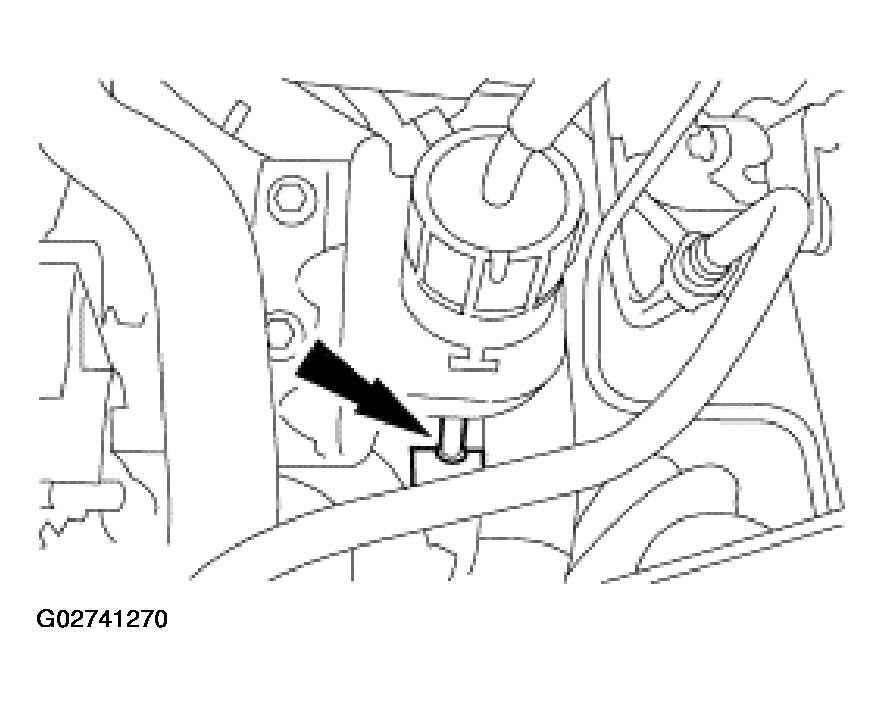

    Fig 5: Detaching Gearshift Cable From Transaxle Shifter Lever
    G02741270Courtesy of FORD MOTOR CO.
  6. Disconnect the gearshift cable from the bracket by depressing the locking tabs at the bracket.

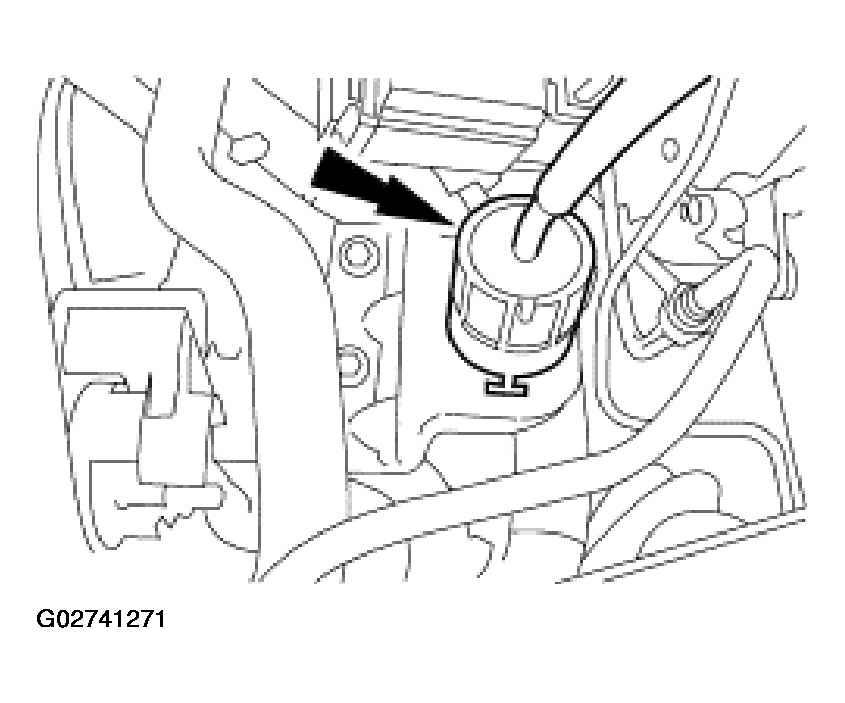

    Fig 6: Disconnecting Gearshift Cable From Bracket
    G02741271Courtesy of FORD MOTOR CO.
  7. Remove the gearshift cable.

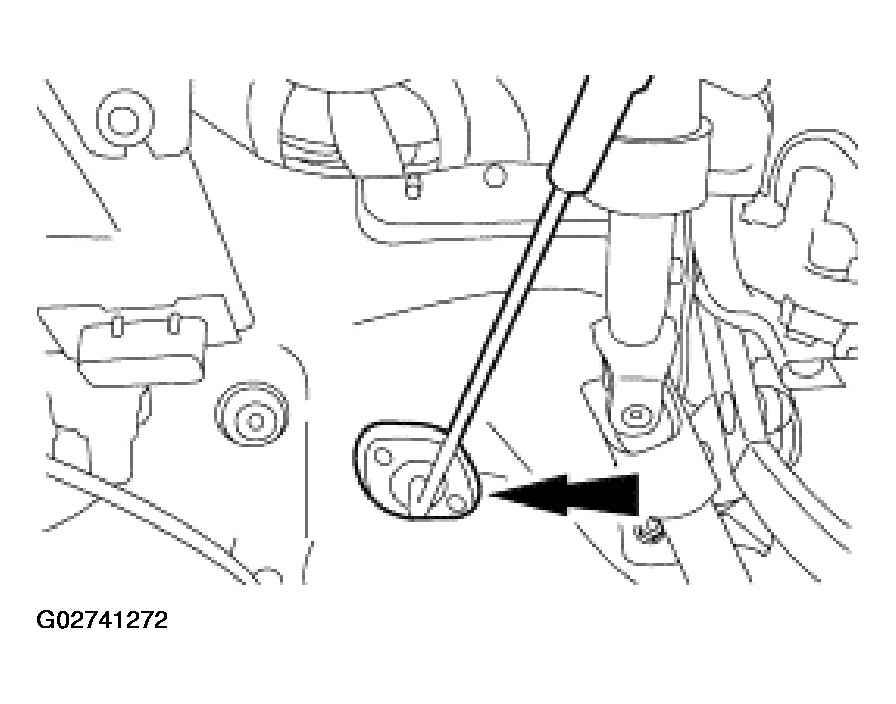

    Fig 7: Removing Gearshift Cable
    G02741272Courtesy of FORD MOTOR CO.
