Output Shaft: Notes

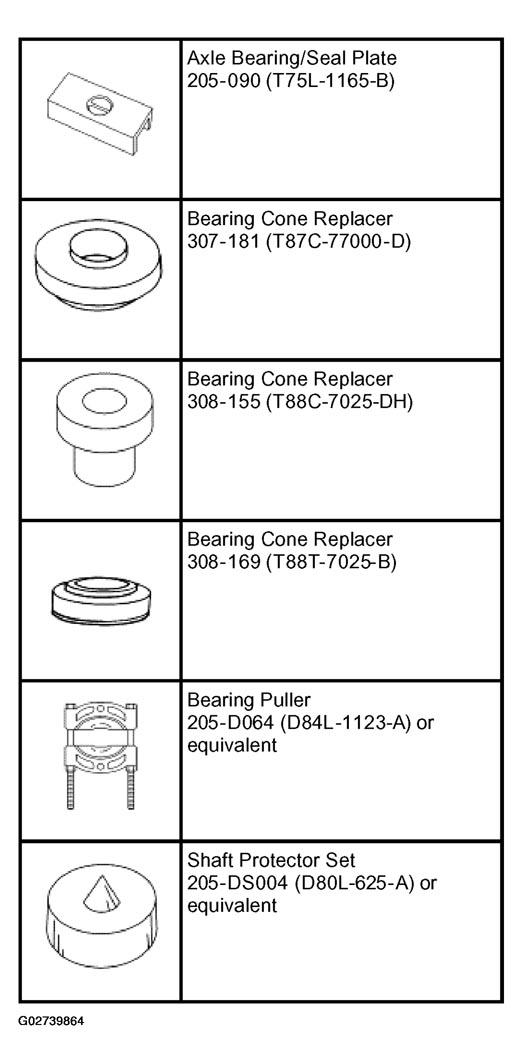

Fig 1: Identifying Special Tools

G02739864

Courtesy of FORD MOTOR CO.

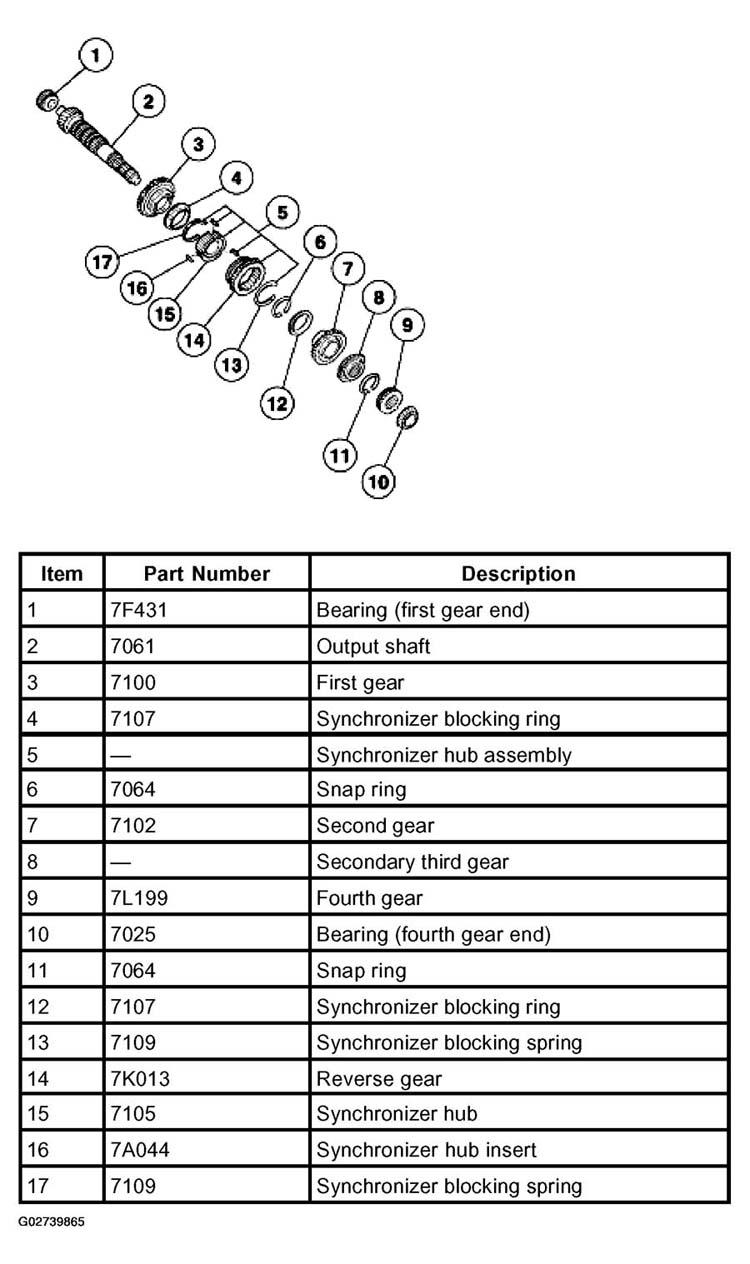

Fig 2: Exploded View Of Output Shaft Components

G02739865

Courtesy of FORD MOTOR CO.
