Frame Contact Hoist

CAUTION: Damage to suspension, exhaust and steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.

The lifting points are part of the uni-body structure. See Fig 1 .

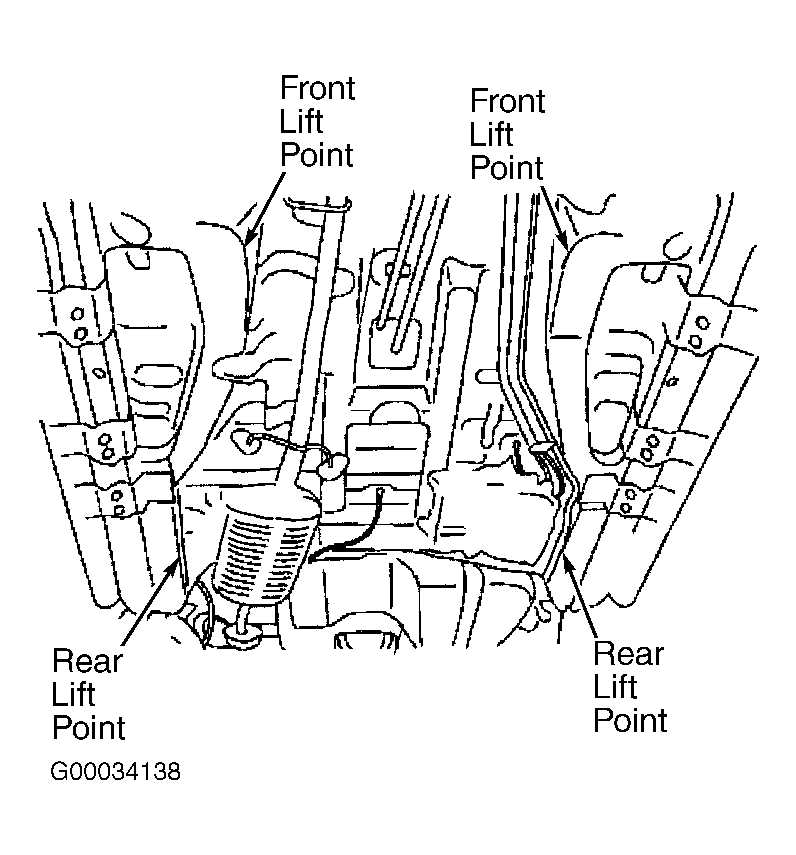

Fig 1: Hoist Contact Points
G00034138Courtesy of FORD MOTOR CO.
