Rotary Blade Coupling: Installation
WARNING: This page is about a different variant/trim than selected.
- Clean the gasket mating surfaces of the differential housing, the differential housing cover and the rotary blade coupling housing.
- Apply a new continuous bead of clear silicone rubber to the rotary blade coupling housing.

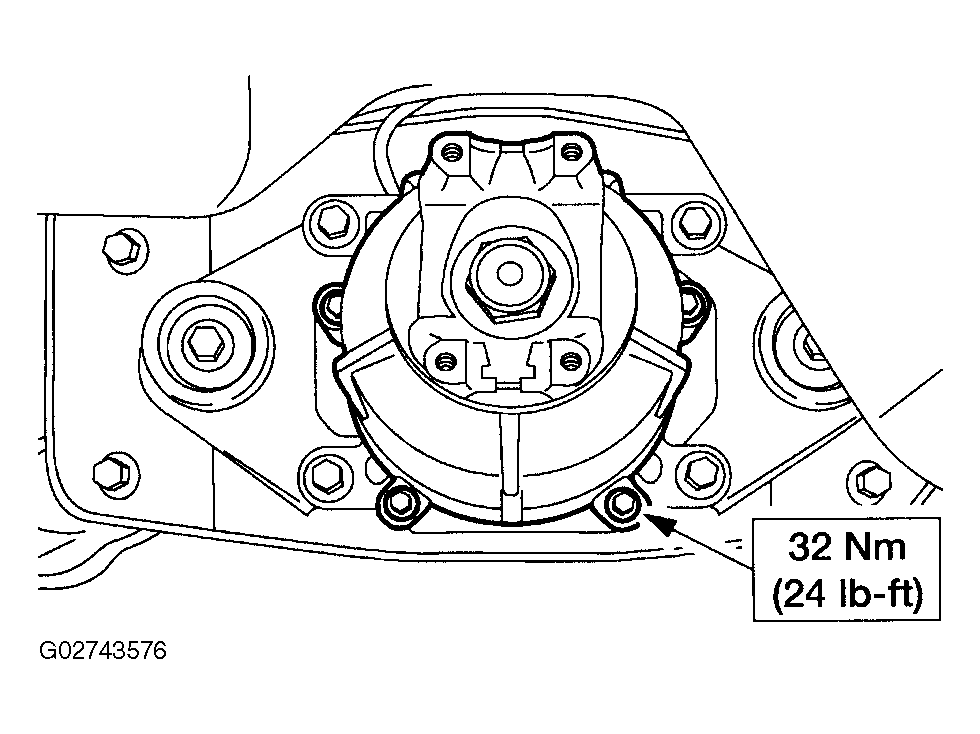

- Install the rotary blade coupling assembly and six bolts.

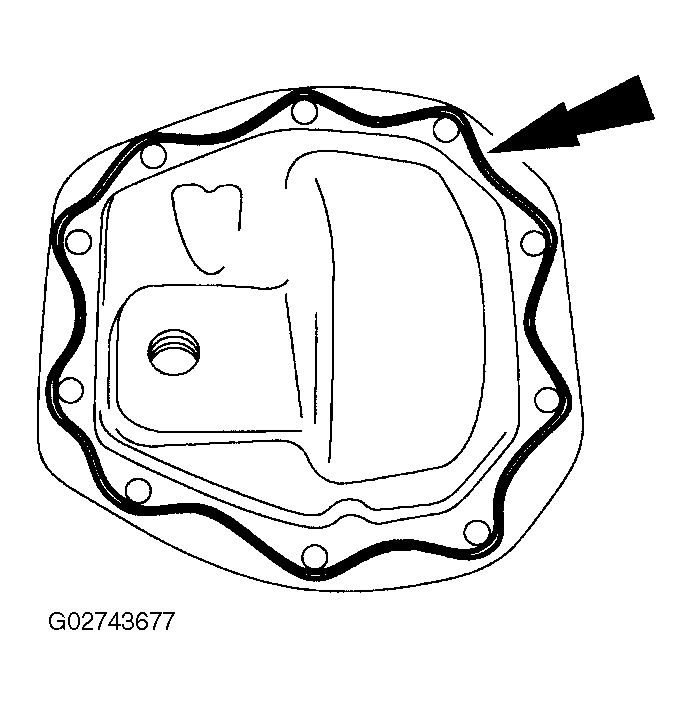

- Apply a new continuous bead of clear silicone rubber to the differential housing cover as shown in the illustration.

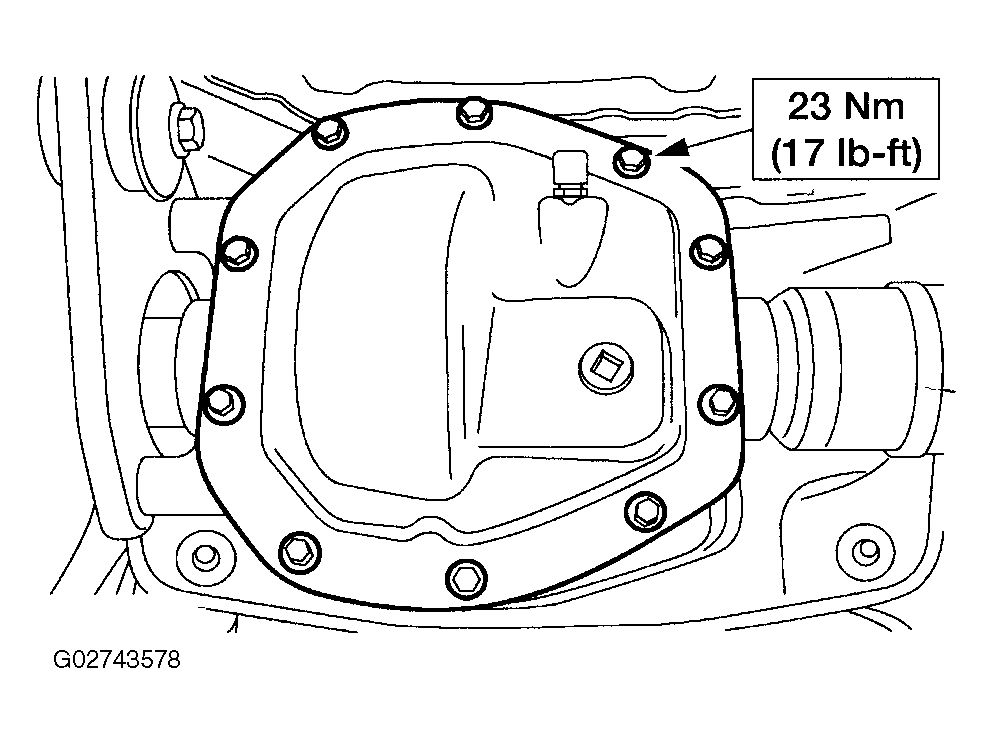

- Install the differential housing cover and bolts.

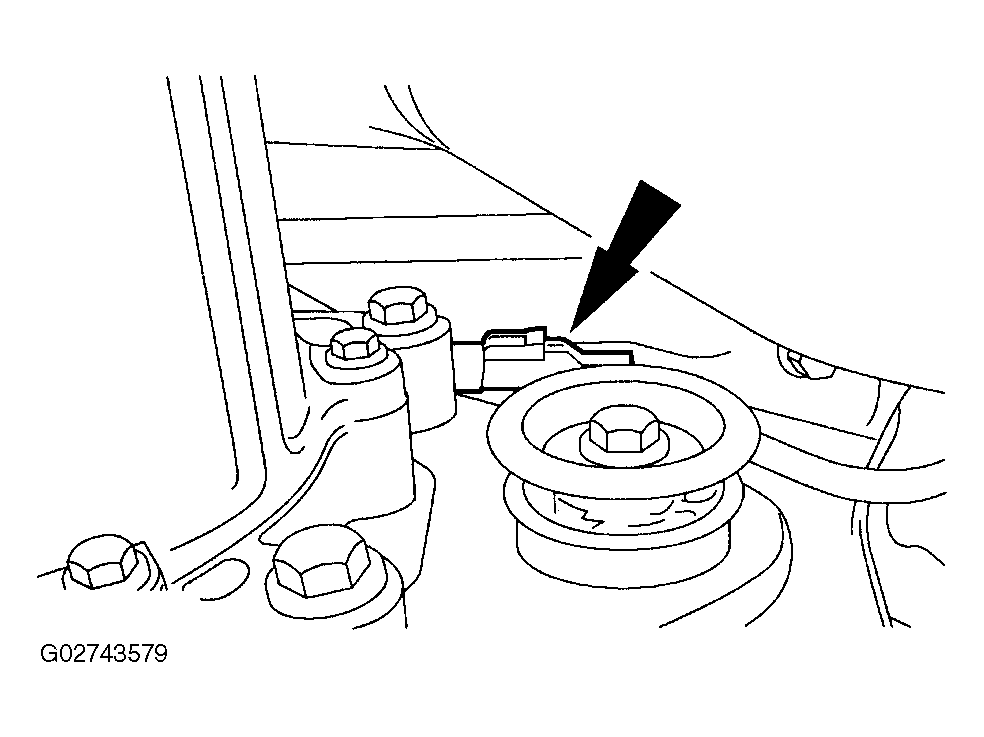

- Connect the electrical connector.
- Install the driveshaft. For additional information, refer to DRIVESHAFT
- Fill the rear axle with 1.4 liters (2.95 pints) of rear axle lubricant.

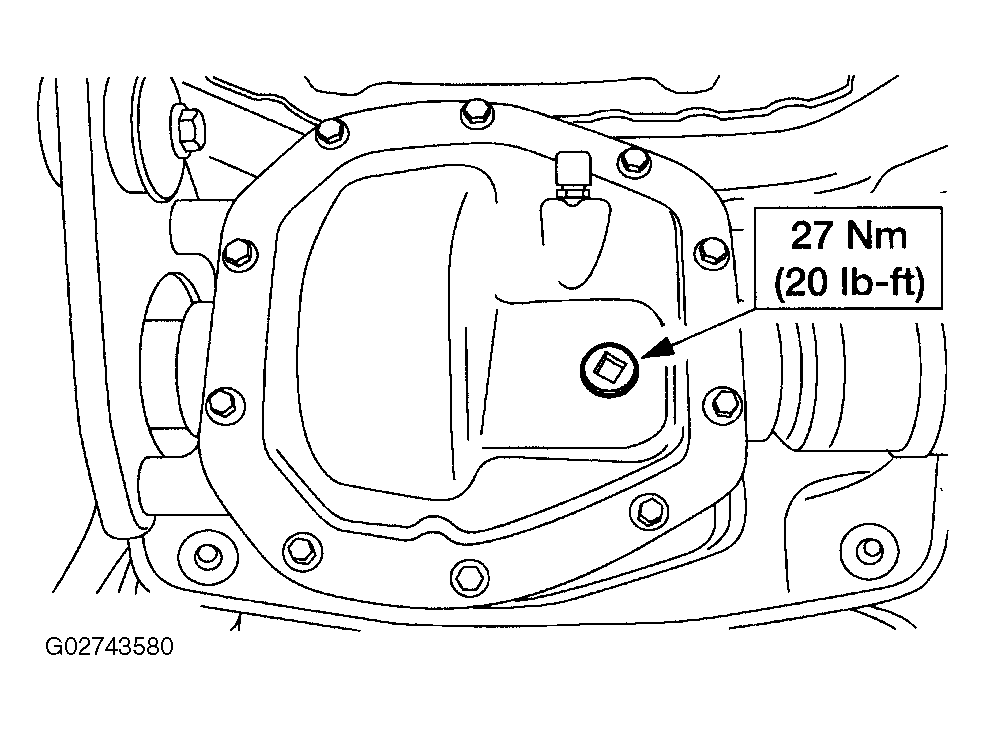

- Tighten the filler plug.
CAUTION:
Make sure the machined surfaces on the rear axle housing, the differential housing cover and the rotary blade coupling housing are clean and free of oil before installing the new silicone sealant. The inside of the rear axle must be covered when cleaning the machined surface to prevent contamination.
NOTE:
Make sure the grommet is seated all the way in the slot.
NOTE:
The rotary blade coupling assembly must be installed within 15 minutes of application of the silicone, or new sealant must be applied. If possible, allow one hour before filling with lubricant to make sure the silicone sealant has properly cured.
NOTE:
The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. If possible, allow one hour before filling with lubricant to make sure the silicone sealant has properly cured.
