Spark Plugs: Removal

CAUTION: Do not pull on the ignition wire directly, as it may separate from the connector inside the boot.

Grasp the spark plug boot firmly and with a twisting-pulling motion remove the spark plug wires from the spark plug.

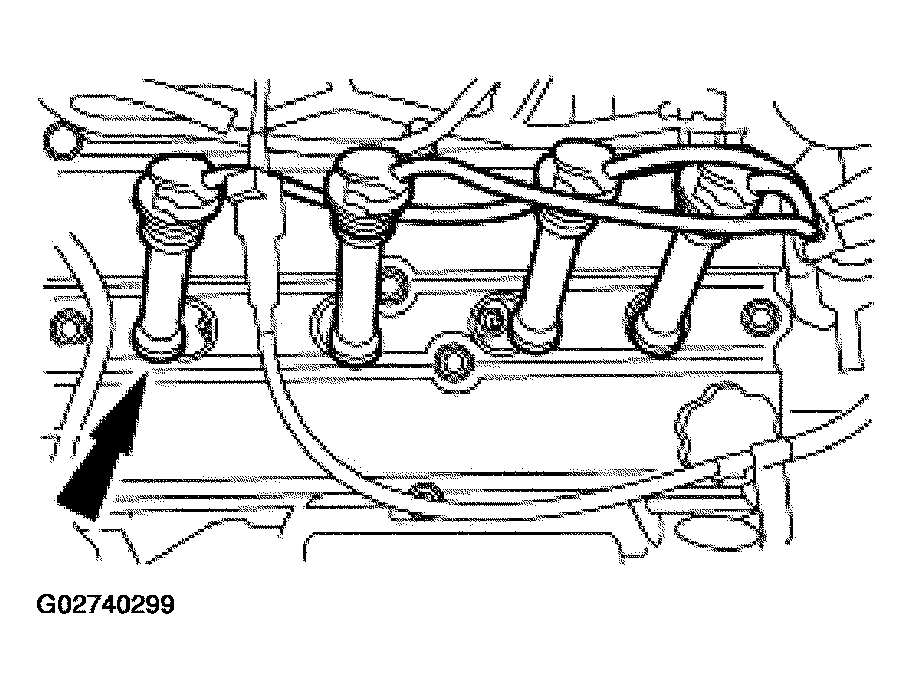

Fig 1: Removing Spark Plug Wires From Spark Plug
Courtesy of FORD MOTOR CO.

NOTE: If an original spark plug is reused, install it in the same cylinder from which it was removed. New spark plugs can be used in any cylinder.

NOTE: Use compressed air to remove any foreign material from the spark plug well before removing the spark plugs.

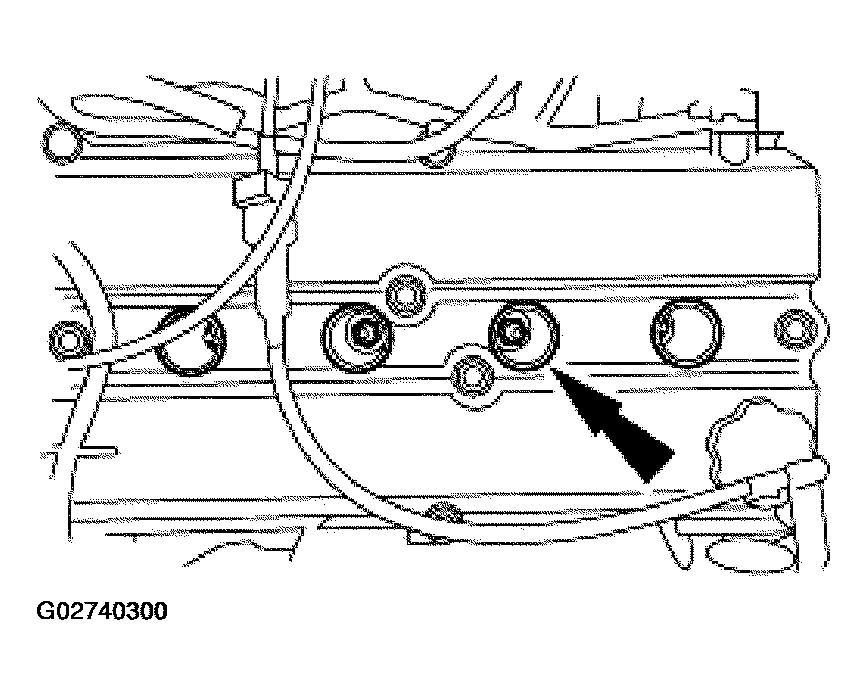

Fig 2: Removing Spark Plugs

Courtesy of FORD MOTOR CO.

Remove the spark plugs.
Inspect the spark plugs. For additional information, Refer to ENGINE SYSTEM-GENERAL INFORMATION .
