Spark Plug Wires: Removal

    CAUTION: Do not pull on the ignition wire directly, as the wire may separate from the connector inside the spark plug boot.

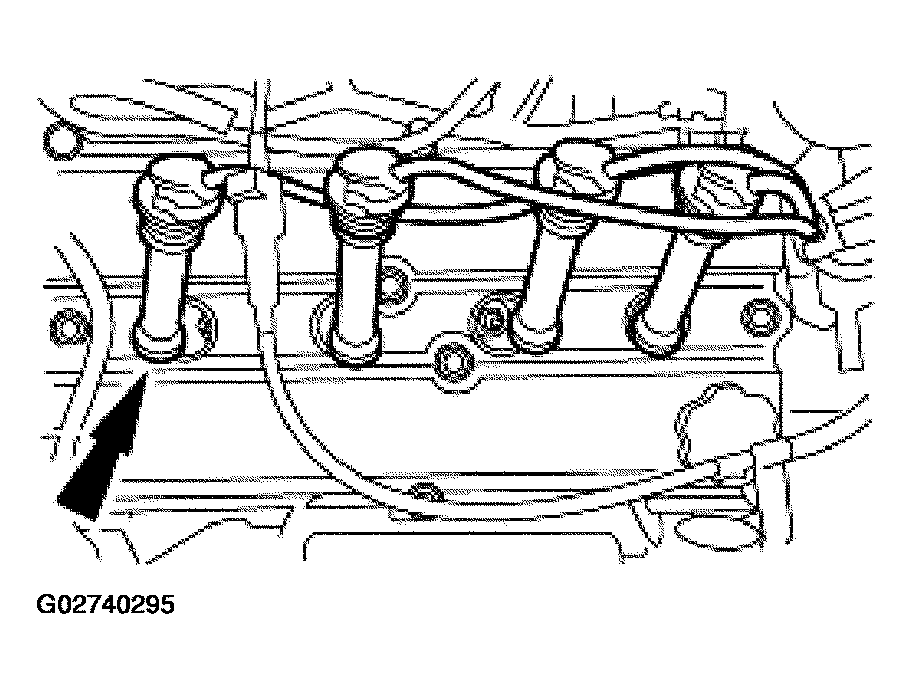

    Fig 1: Disconnecting Ignition Wires From Spark Plugs
    G02740295Courtesy of FORD MOTOR CO.
  1. Grasp the spark plug boot firmly and with a twisting-pulling motion, disconnect the ignition wires from the spark plugs.
  2. Disconnect the ignition wires from the ignition coil (12029) and remove the wires.

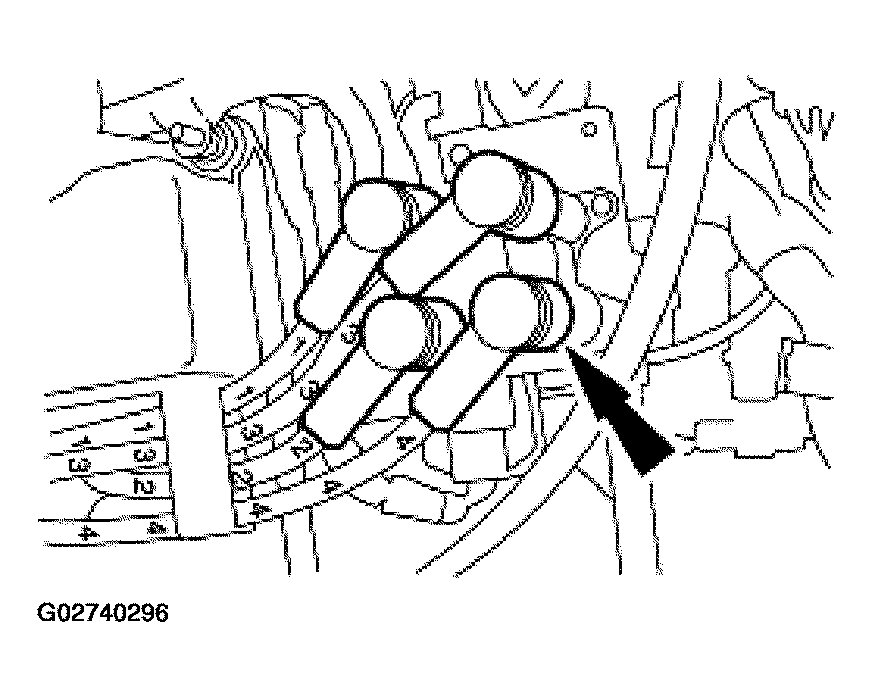

    Fig 2: Disconnecting Ignition Wires From Ignition Coil
    G02740296Courtesy of FORD MOTOR CO.
