Home >> Ford >> 2004 >> Escape 2.0 B >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine-2.0L ZETEC >> In-Vehicle Repair >> Flywheel >> Removal

In-Vehicle Repair: Flywheel: Removal

  1. Remove the clutch. For additional information, refer to CLUTCH .
  2. Remove the bolts and the flywheel.

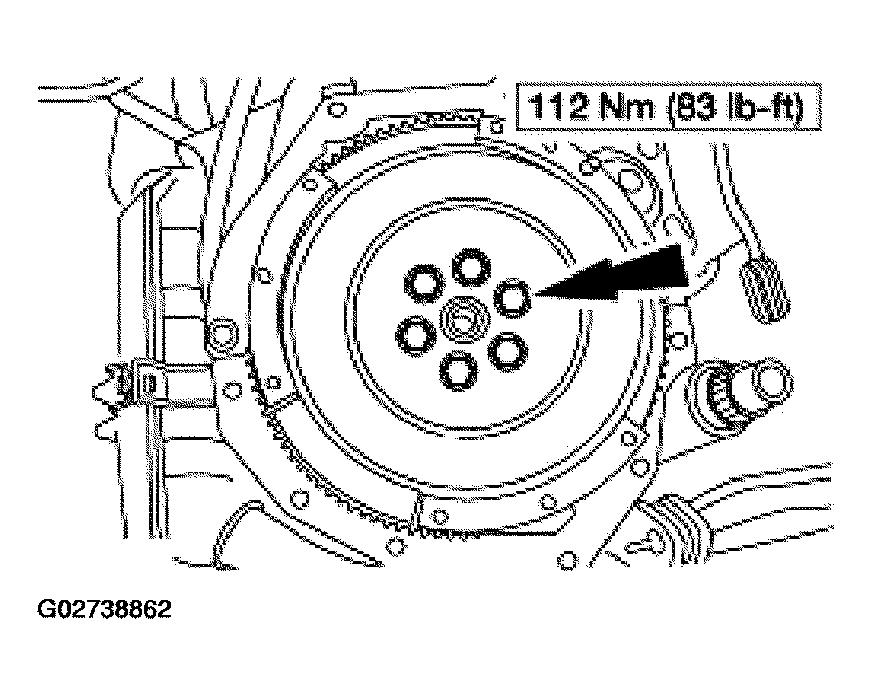

    Fig 1: Removing Flywheel Bolts
    G02738862Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
