Upper Engine Components

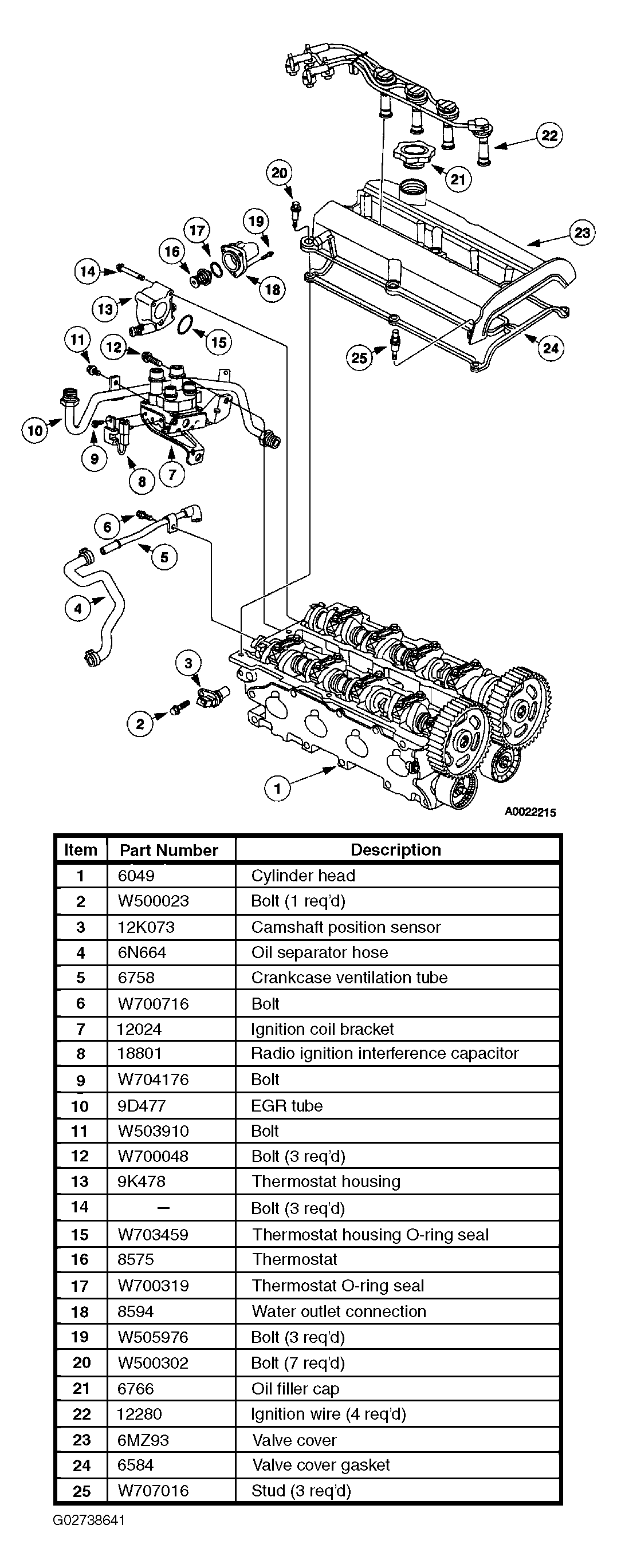

Fig 1: Identifying Upper Engine Components
G02738641Courtesy of FORD MOTOR CO.
