Lower Engine Components

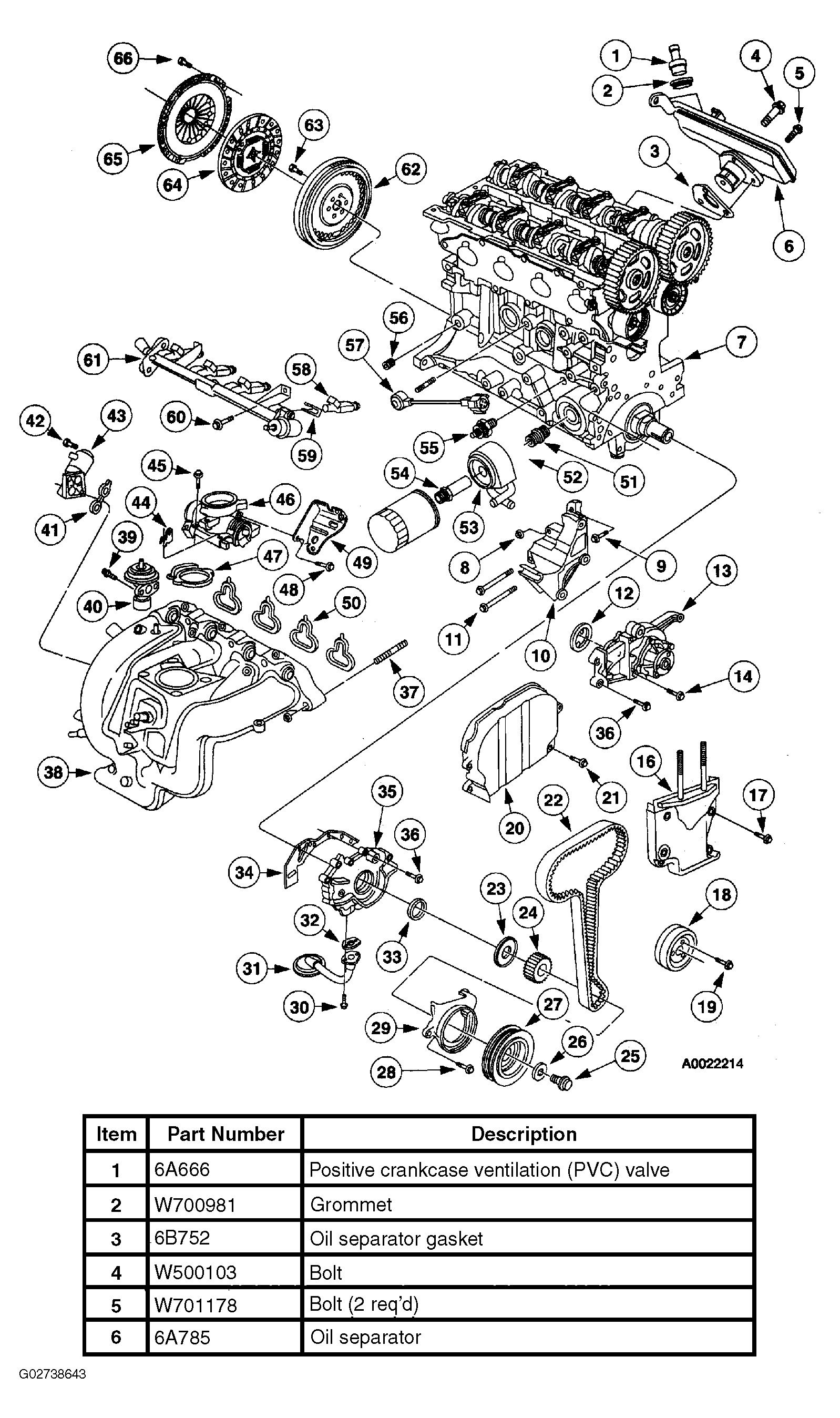

Fig 1: Identifying Lower Engine Components (Items 1-6)

G02738643

Courtesy of FORD MOTOR CO.

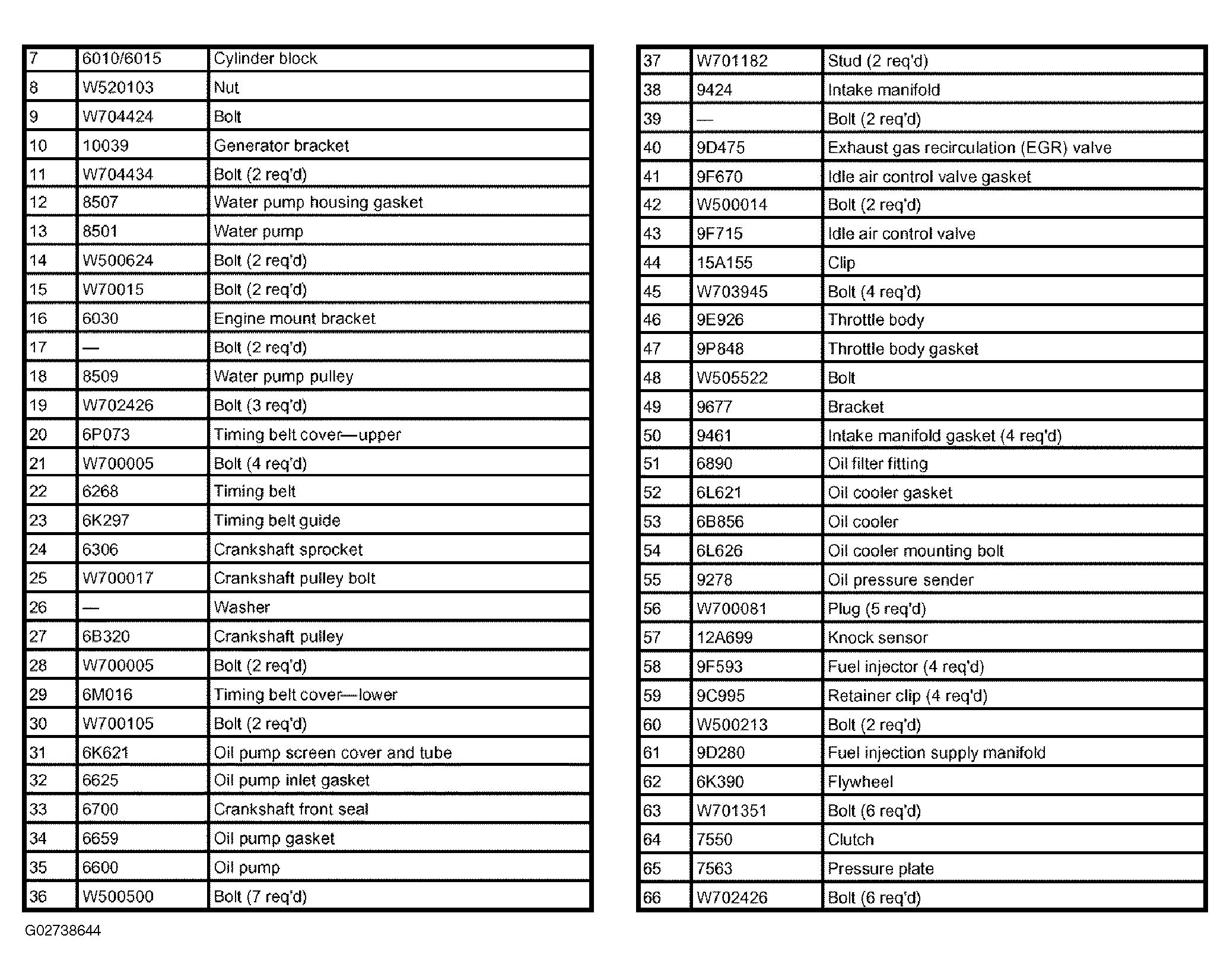

Fig 2: Identifying Lower Engine Components (Items 7-66)

G02738644

Courtesy of FORD MOTOR CO.
