Valve Seat Width

  1. Measure the valve seat width. If necessary, grind the valve seat to specification.
    • Measure the intake valve seat width.
    • Measure the exhaust valve seat width.
    • Recheck the valve spring installed length after the seats have been ground, and shim the valve springs as necessary to achieve the correct installed spring length.
    • Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) .

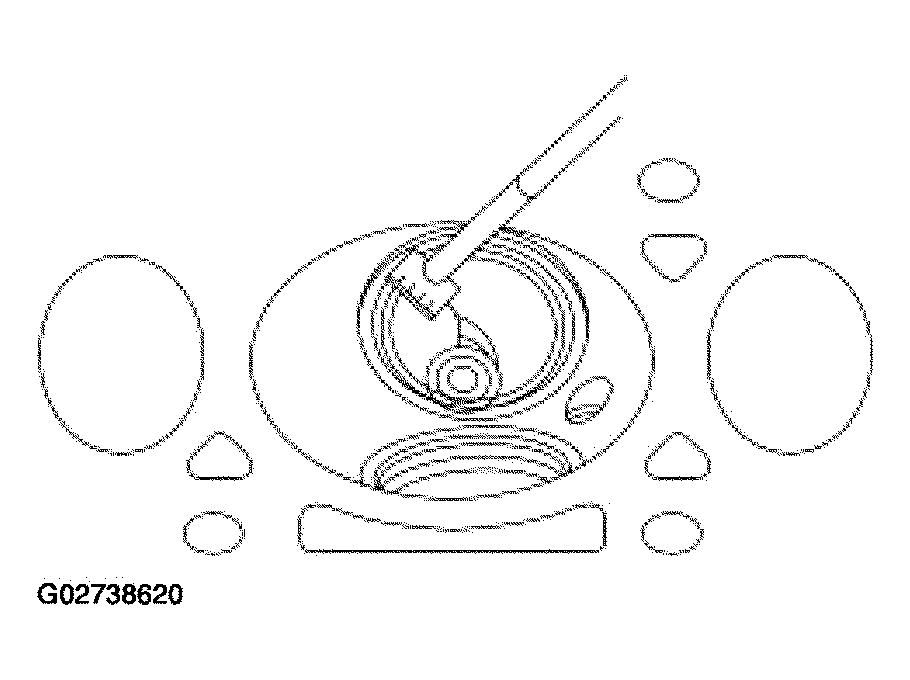

    Fig 1: Measuring Valve Seat Width
    G02738620Courtesy of FORD MOTOR CO.
