Connecting Rod Bushing Diameter

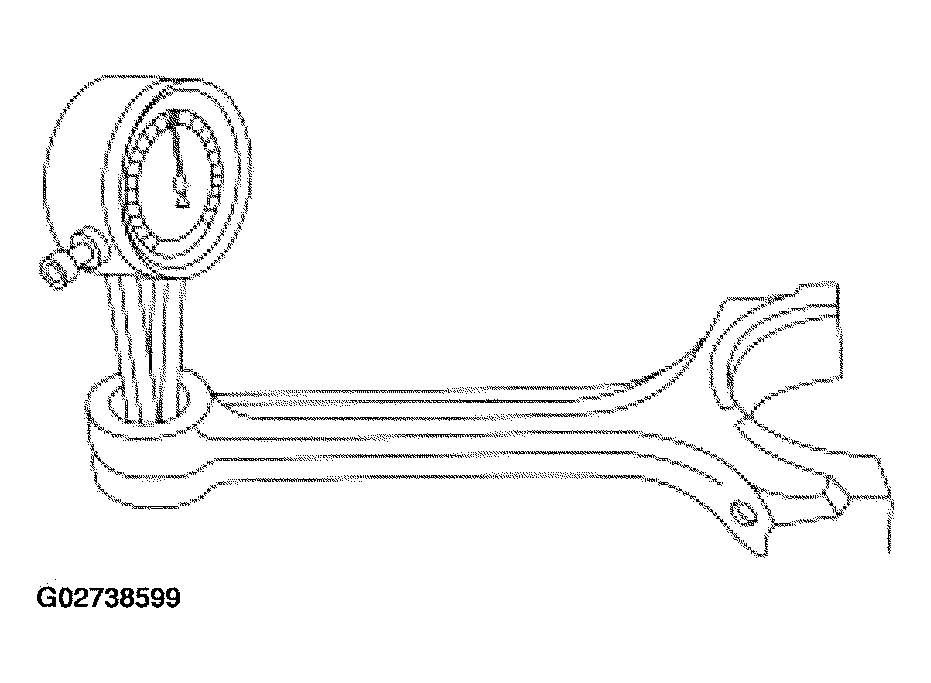

- Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
- Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) for specifications .
- If out of specification, install new components as necessary. Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) for the procedure .
