Disassembly And Assembly: Halfshaft: Assembly

NOTE: Make sure all components are clean and free of foreign material.
  1. Lubricate the outboard CV joint with Ford High Temperature Constant Velocity Joint Grease E43Z-19590-A or equivalent meeting Ford specification ESP-M1C207-A.

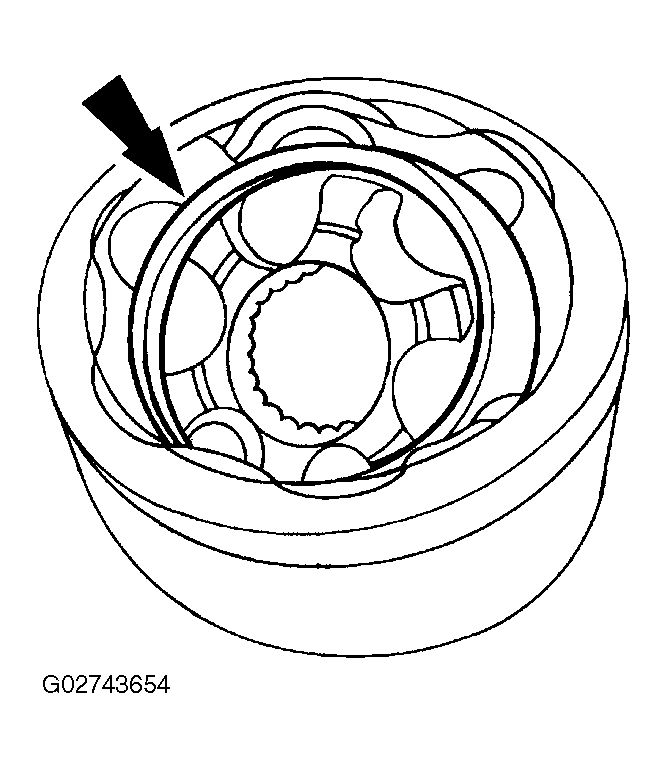

    Fig 1: Lubricating Outboard CV Joint
    G02743654Courtesy of FORD MOTOR CO.
  2. Install the outboard halfshaft boot.

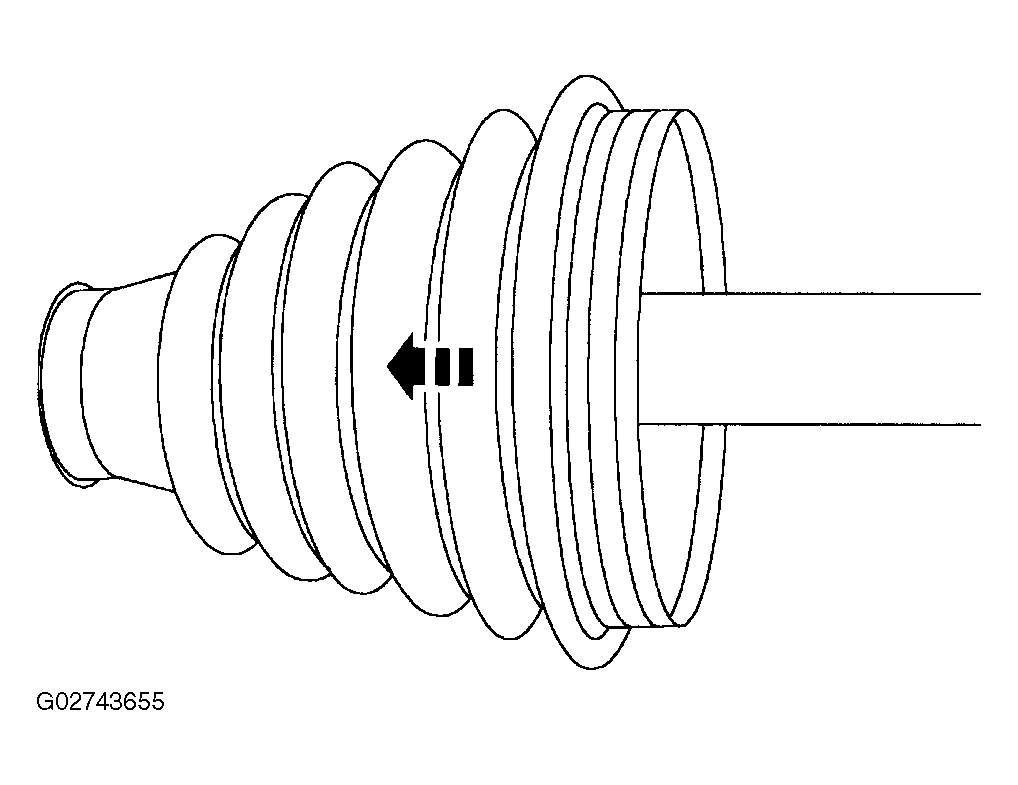

    Fig 2: Installing Outboard Halfshaft Boot
    G02743655Courtesy of FORD MOTOR CO.
  3. Install a new halfshaft shaft bearing retainer circlip.

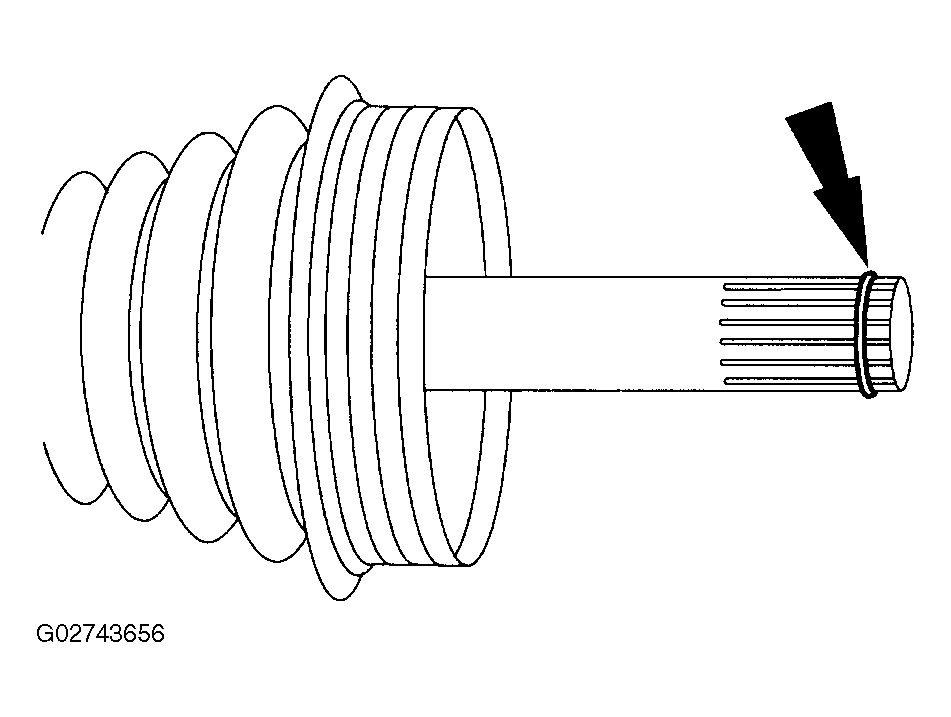

    Fig 3: Installing New Halfshaft Shaft Bearing Retainer Circlip
    G02743656Courtesy of FORD MOTOR CO.
  4. Use a soft-face hammer to install the outboard CV joint by gently tapping it onto the halfshaft.

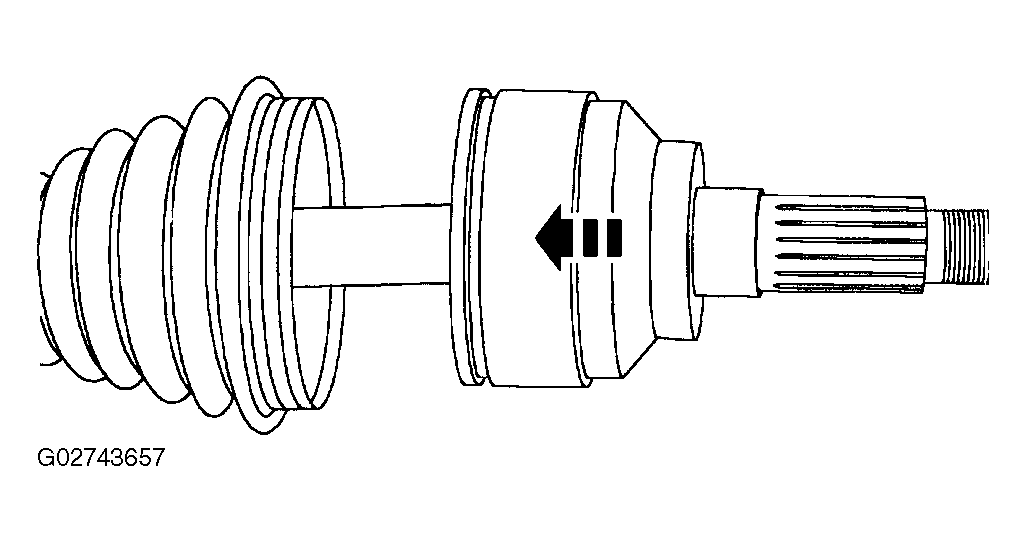

    Fig 4: Installing Outboard CV Joint
    G02743657Courtesy of FORD MOTOR CO.
  5. Remove any excess grease on the mating surfaces and slide the outboard halfshaft joint boot forward onto the outboard CV joint.

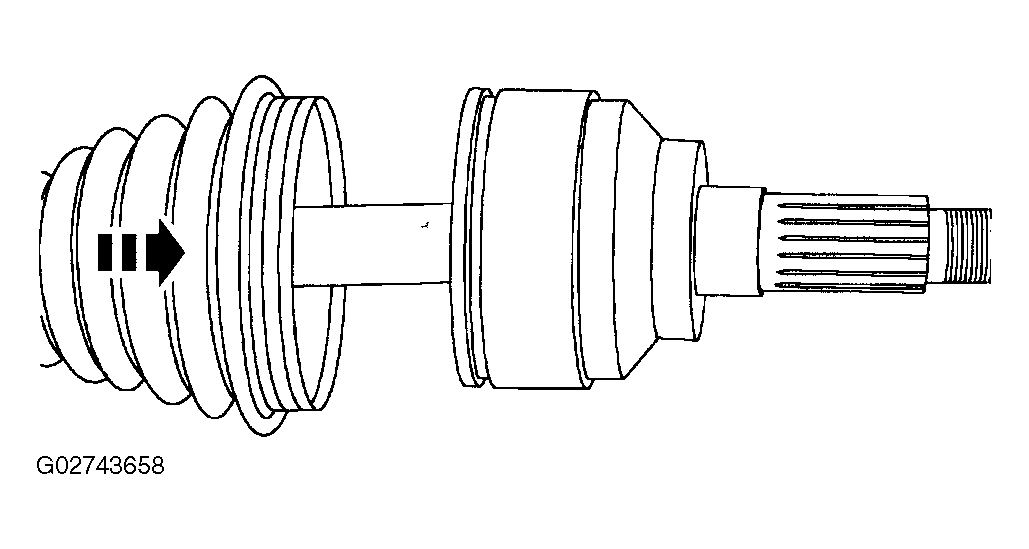

    Fig 5: Removing Excess Grease On Mating Surfaces
    G02743658Courtesy of FORD MOTOR CO.
  6. Remove any excess air trapped in the outboard halfshaft boot using a cloth covered screwdriver after adjusting the outboard halfshaft boot spacing.

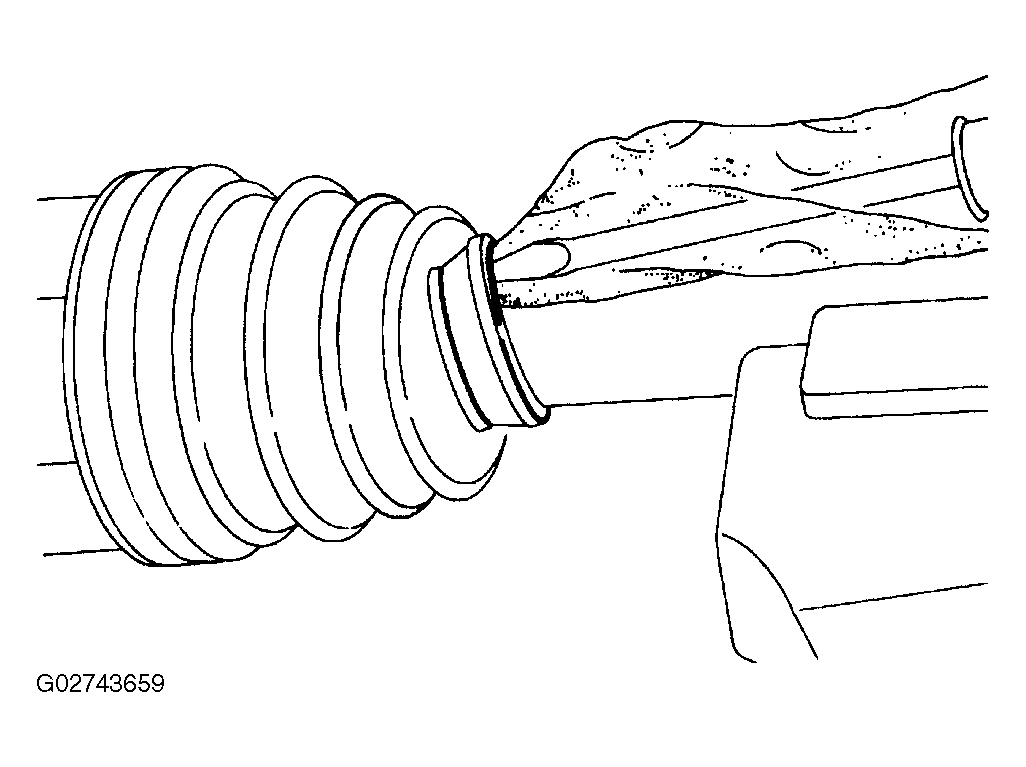

    Fig 6: Removing Excess Air Trapped In Outboard Halfshaft Boot
    G02743659Courtesy of FORD MOTOR CO.
  7. Using the special tool, install two new outboard halfshaft boot clamps.
    Fig 7: Installing Outboard Halfshaft Boot Clamps
    G02743660Courtesy of FORD MOTOR CO.
  8. Position the inboard halfshaft boot.

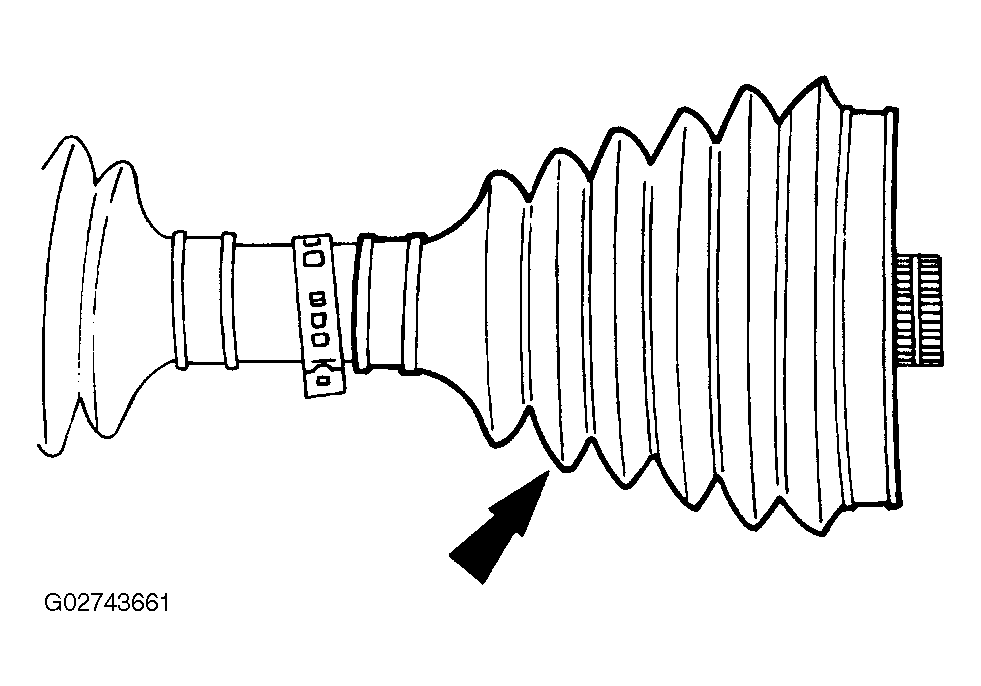

    Fig 8: Positioning Inboard Halfshaft Boot
    G02743661Courtesy of FORD MOTOR CO.
  9. Install the snap ring.

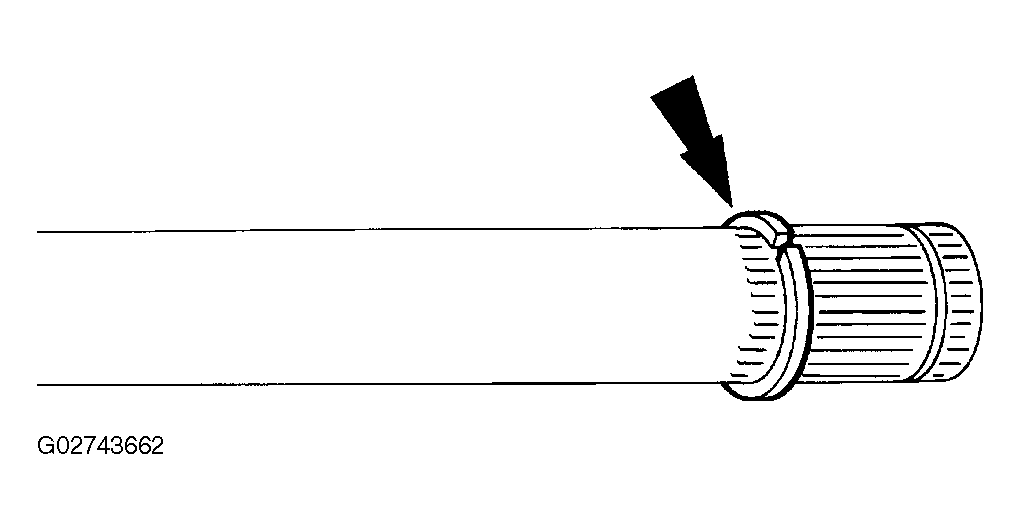

    Fig 9: Installing Snap Ring
    G02743662Courtesy of FORD MOTOR CO.
  10. Install the tripod joint on the halfshaft.
    1. Line up the marks on the halfshaft and tripod joint.
    2. Install the tripod joint on the halfshaft.

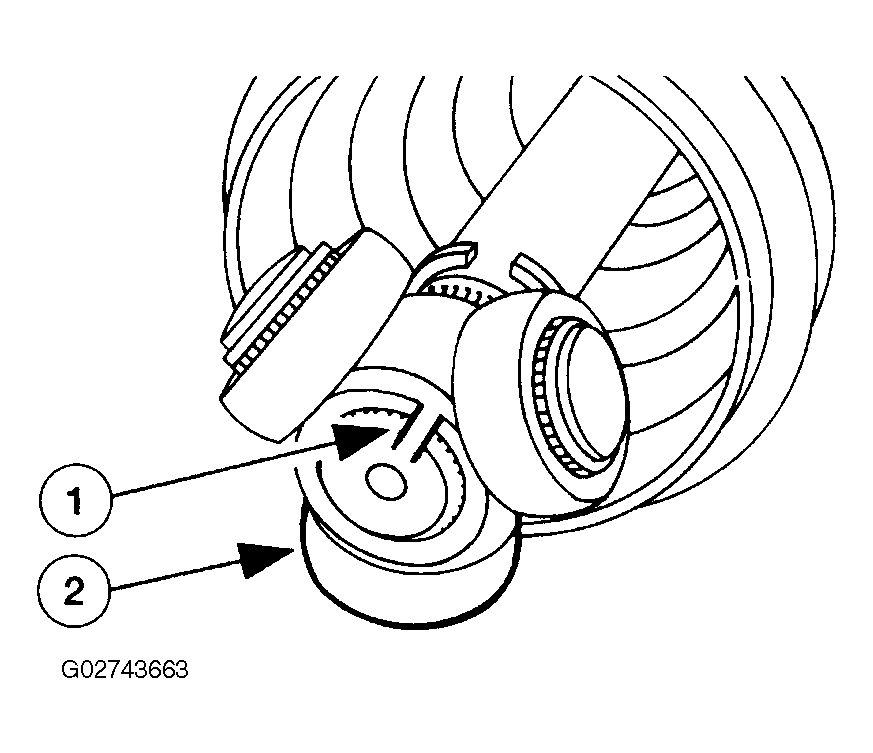

    Fig 10: Installing Tripod Joint On Halfshaft
    G02743663Courtesy of FORD MOTOR CO.
  11. Install the snap ring.

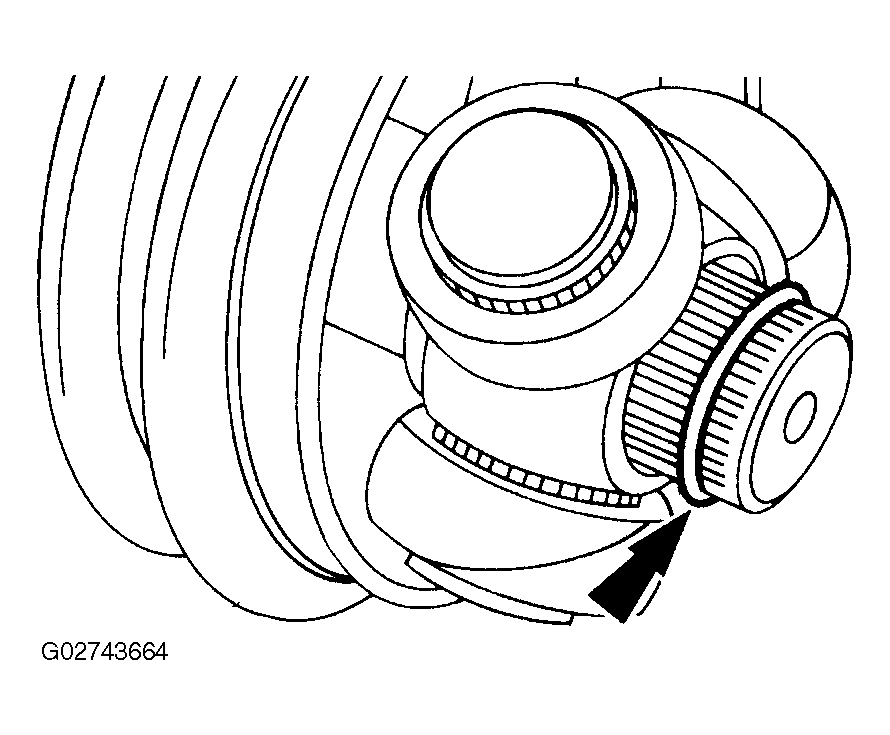

    Fig 11: Installing Snap Ring
    G02743664Courtesy of FORD MOTOR CO.
  12. Lubricate the three tripod joint needle bearings.
    • Use Ford High Temp Constant Velocity Joint Grease E43Z-19590-A or equivalent meeting Ford specification ESP-M1C207A.

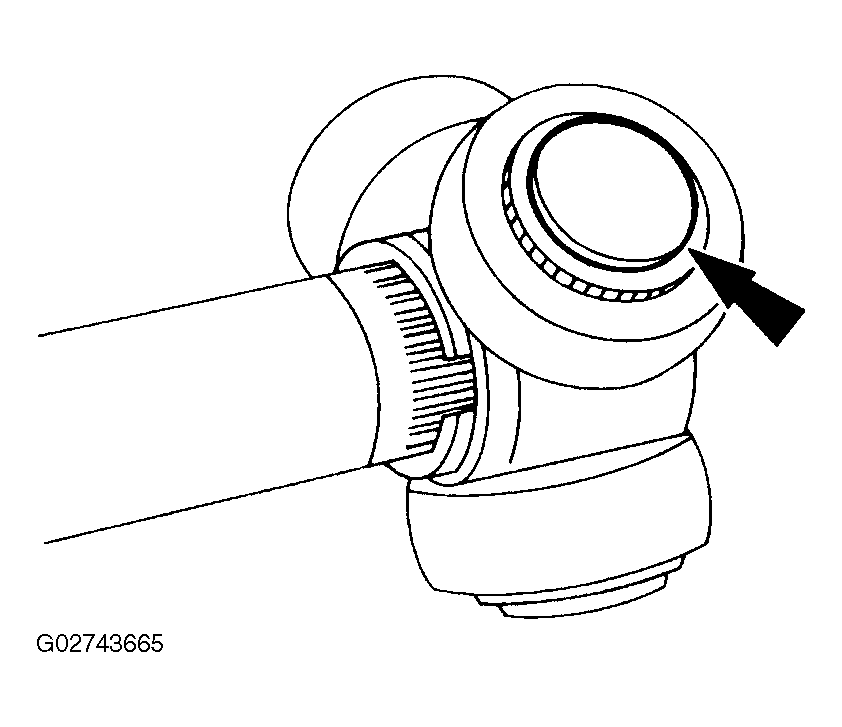

    Fig 12: Lubricating Three Tripod Joint Needle Bearings
    G02743665Courtesy of FORD MOTOR CO.
  13. Fill the tripod joint housing with Ford High Temp Constant Velocity Joint Grease E43Z-19590-Aor equivalent meeting Ford specification ESP-M1C207A.

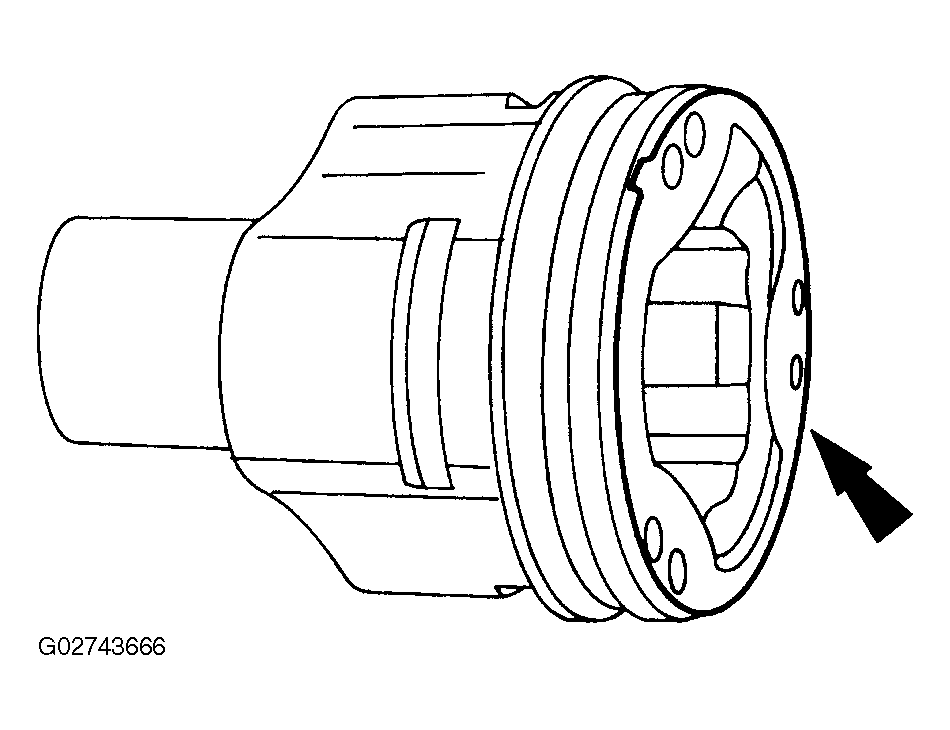

    Fig 13: Filling Tripod Joint Housing
    G02743666Courtesy of FORD MOTOR CO.
  14. Position the tripod housing onto the tripod.

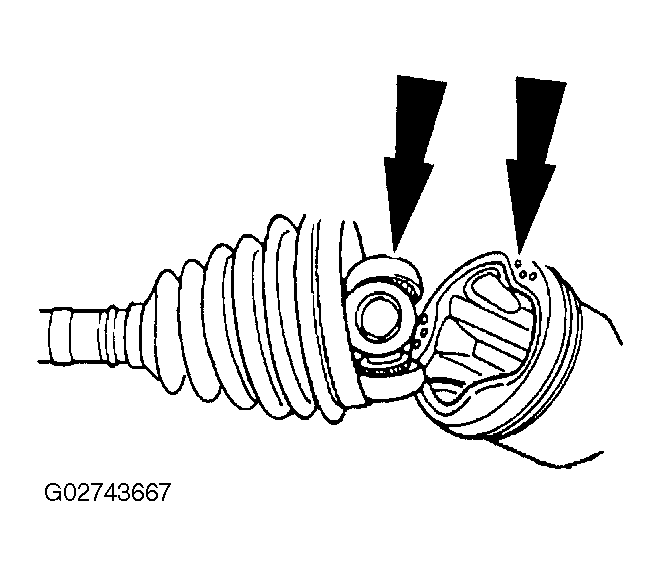

    Fig 14: Positioning Tripod Housing Onto Tripod
    G02743667Courtesy of FORD MOTOR CO.
  15. Position the inboard halfshaft boot.
    1. Position the inboard halfshaft boot.
    2. Position the inboard halfshaft boot clamp.

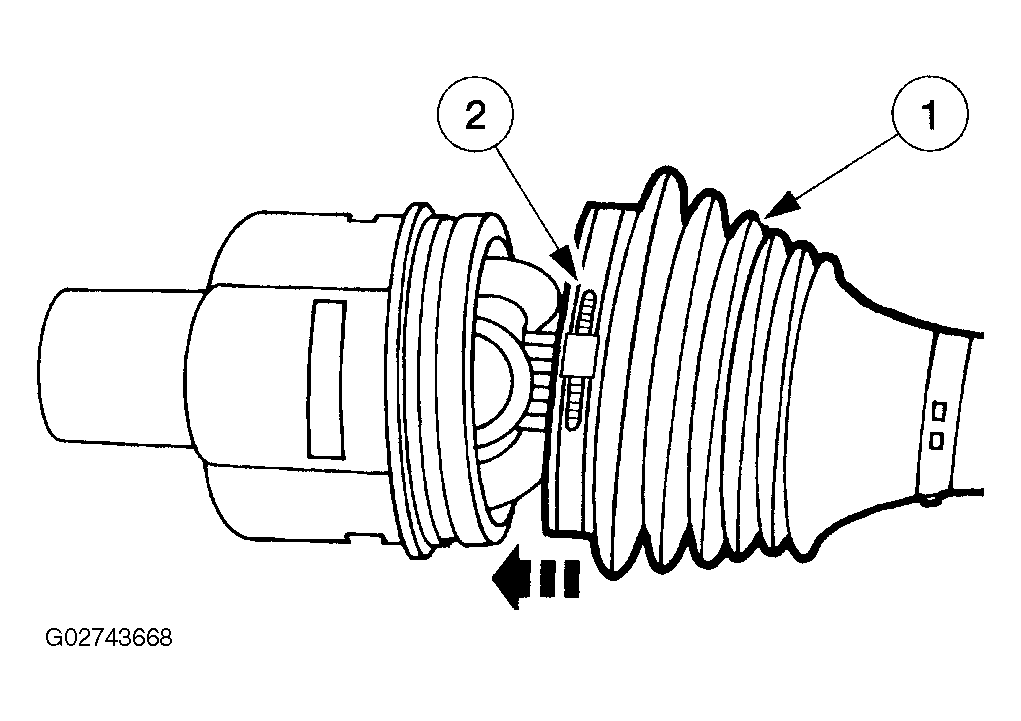

    Fig 15: Positioning Inboard Halfshaft Boot
    G02743668Courtesy of FORD MOTOR CO.
  16. Remove any excess air trapped in the halfshaft boot using a cloth covered screwdriver after adjusting the halfshaft boot spacing.

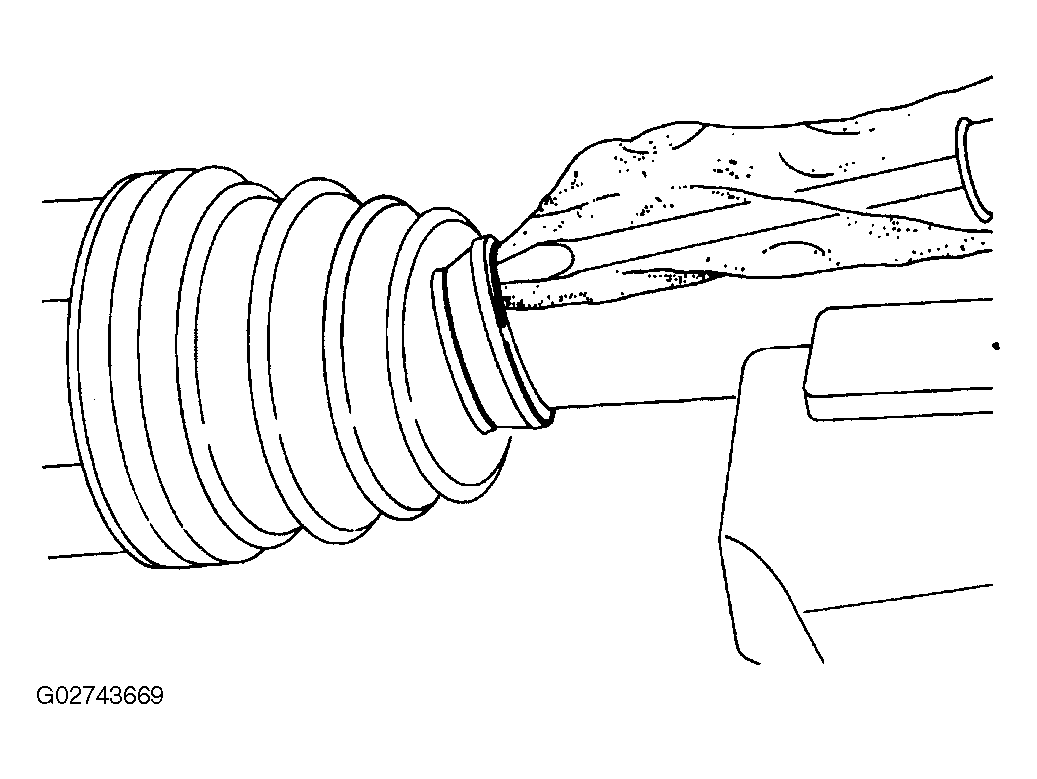

    Fig 16: Removing Excess Air Trapped In Halfshaft Boot
    G02743669Courtesy of FORD MOTOR CO.
  17. Using the special tool, install two new outboard joint boot clamps.

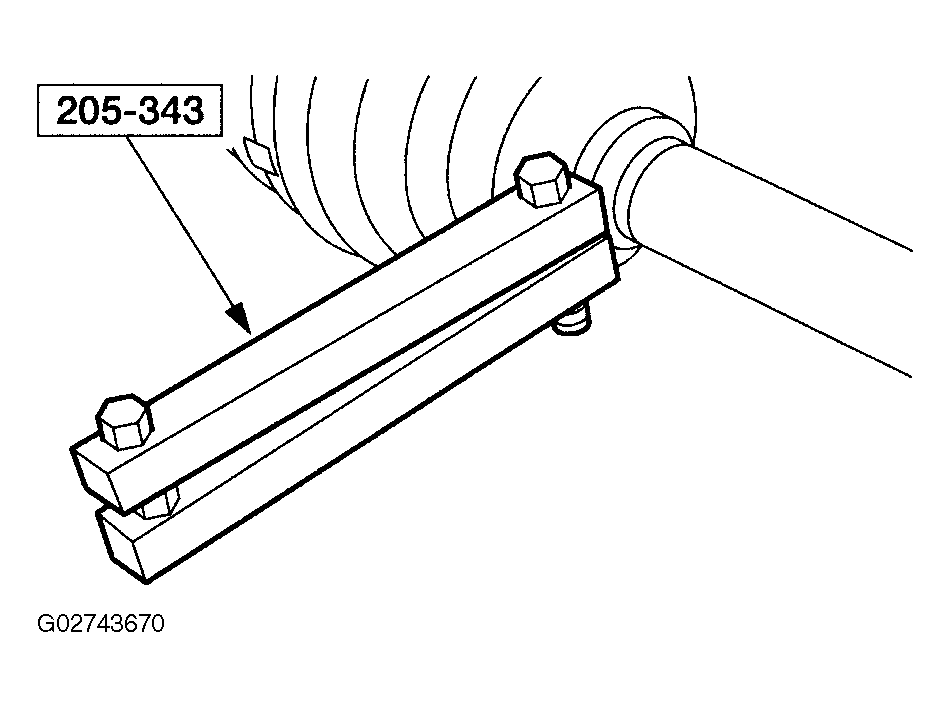

    Fig 17: Installing Outboard Joint Boot Clamps
    G02743670Courtesy of FORD MOTOR CO.
  18. Remove the halfshaft from the vise.

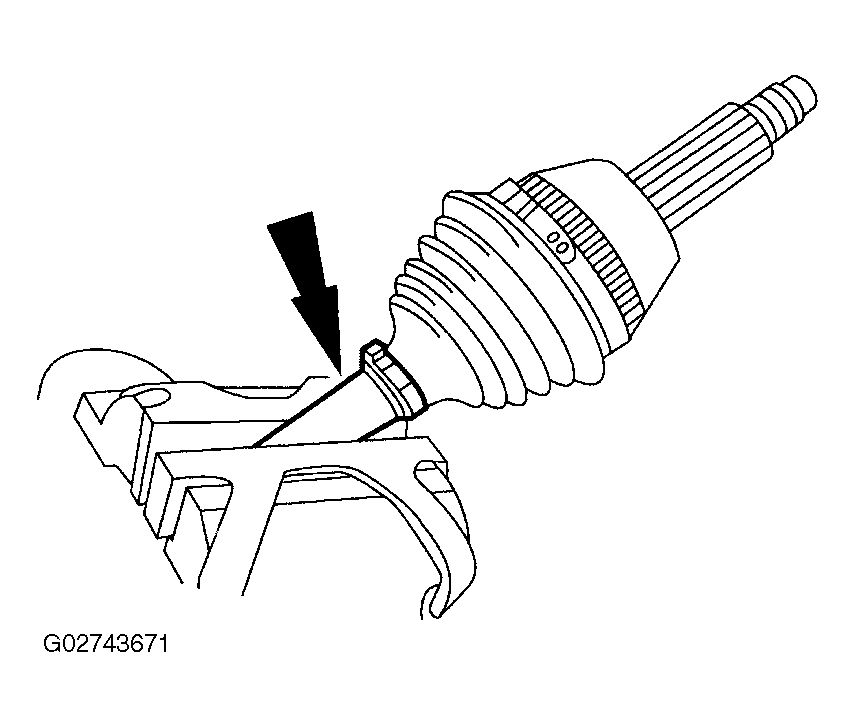

    Fig 18: Removing Halfshaft From Vise
    G02743671Courtesy of FORD MOTOR CO.
  19. Install the front wheel halfshaft. For additional information, refer to HALFSHAFT .
