Cylinder Block Distortion

Fig 1: Identifying Special Tool(s)
G02738624Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new short block assembly.

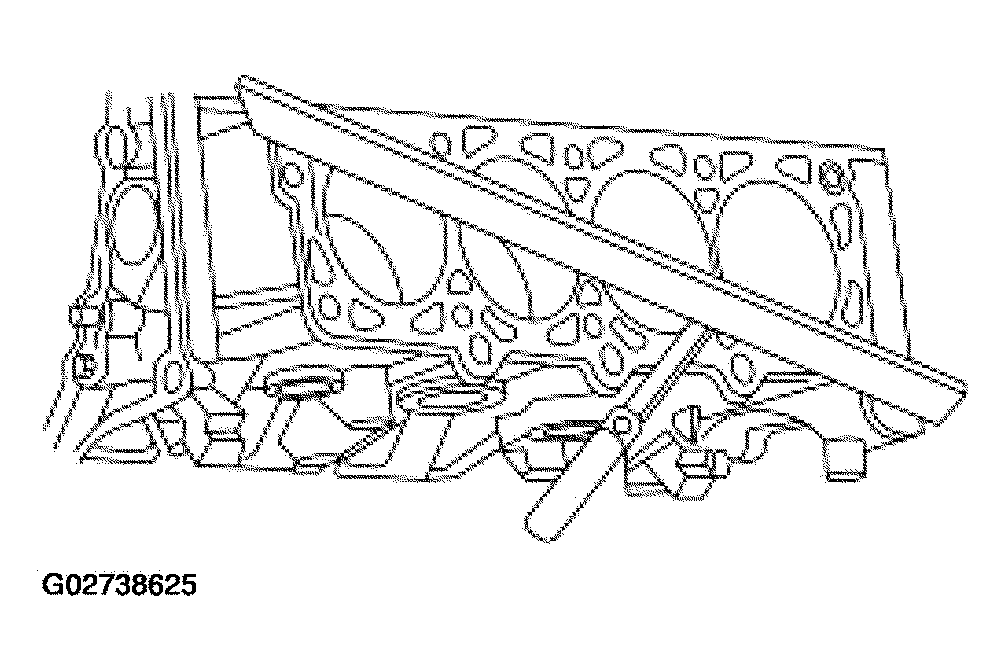

    Fig 2: Inspecting Cylinder Block For Flatness
    G02738625Courtesy of FORD MOTOR CO.
