In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position the flexplate and loosely install the bolts.
    • Tighten the bolts in the sequence shown.

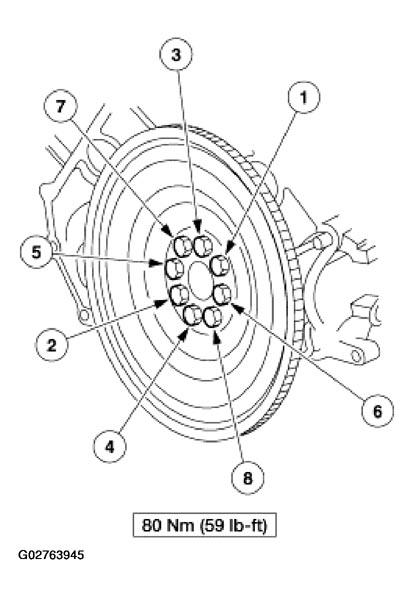

    Fig 1: Flexplate Bolt Tightening Sequence
    G02763945Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75 .
