Support Insulator - Lower, Rear: Removal

NOTE: 2.0L Zetec shown; 2.0L SPI similar. Install Three-Bar Engine Support.

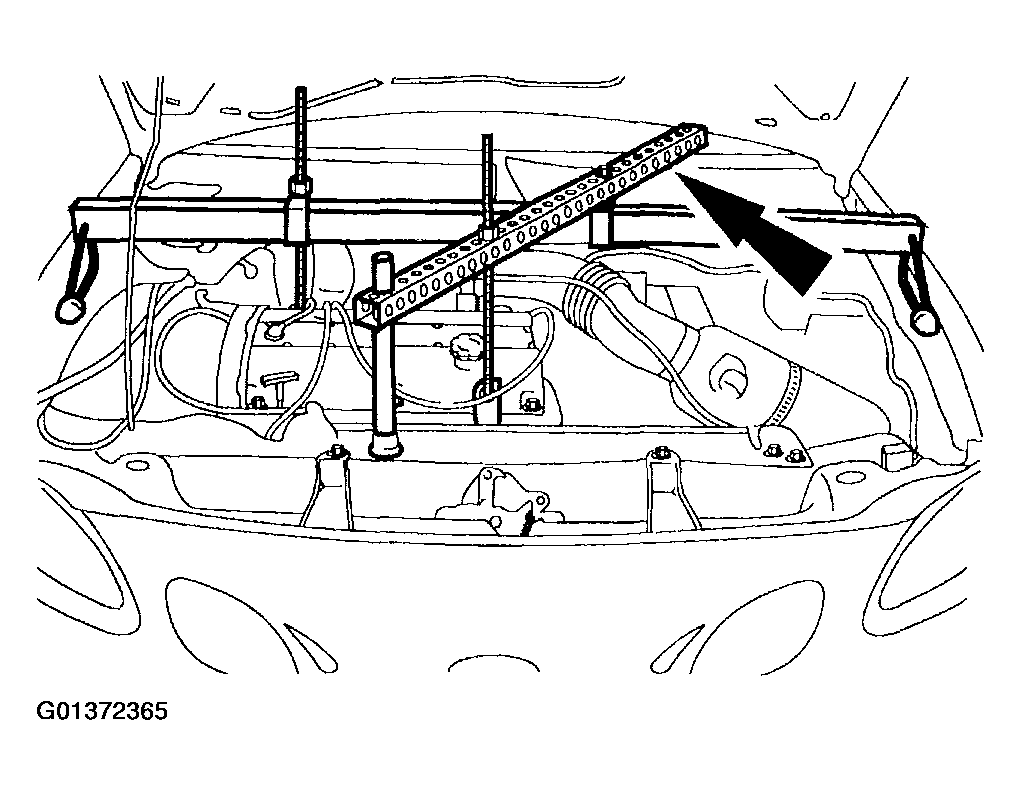

Fig 1: Installing Three-Bar Engine Support

Courtesy of FORD MOTOR CO.

Raise and support the vehicle, refer to JACKING & HOISTING .
Remove the splash shield bolts from the engine support crossmember.

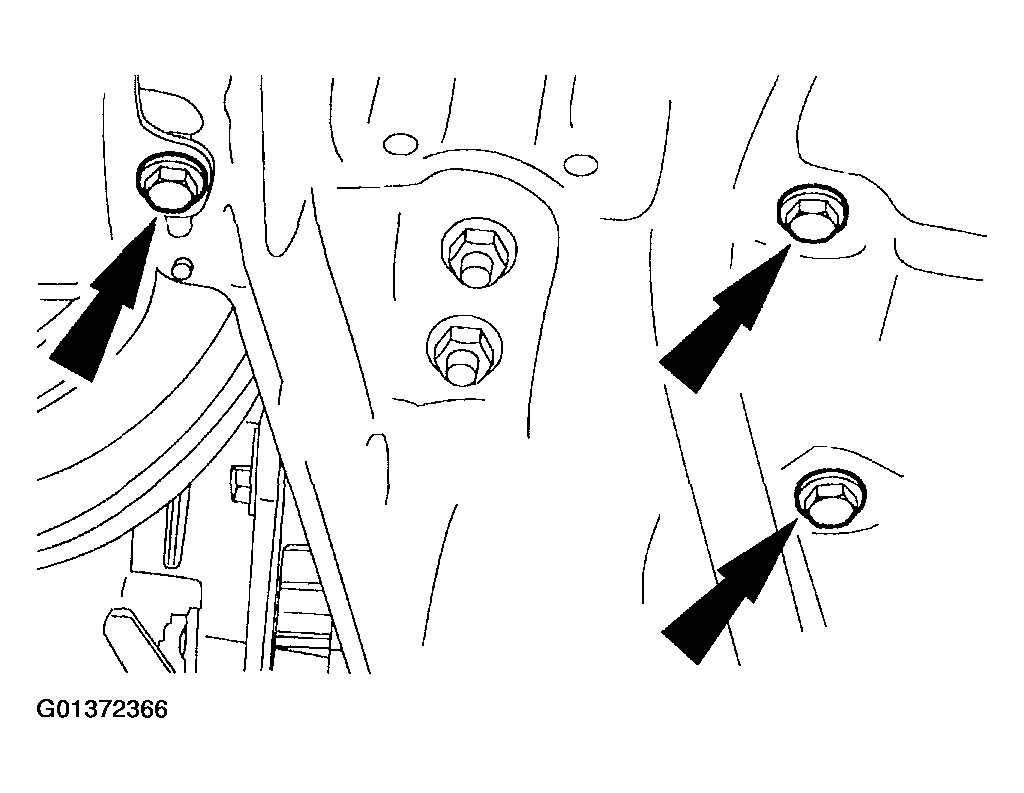

Fig 2: Removing Splash Shield Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and the crossmember.

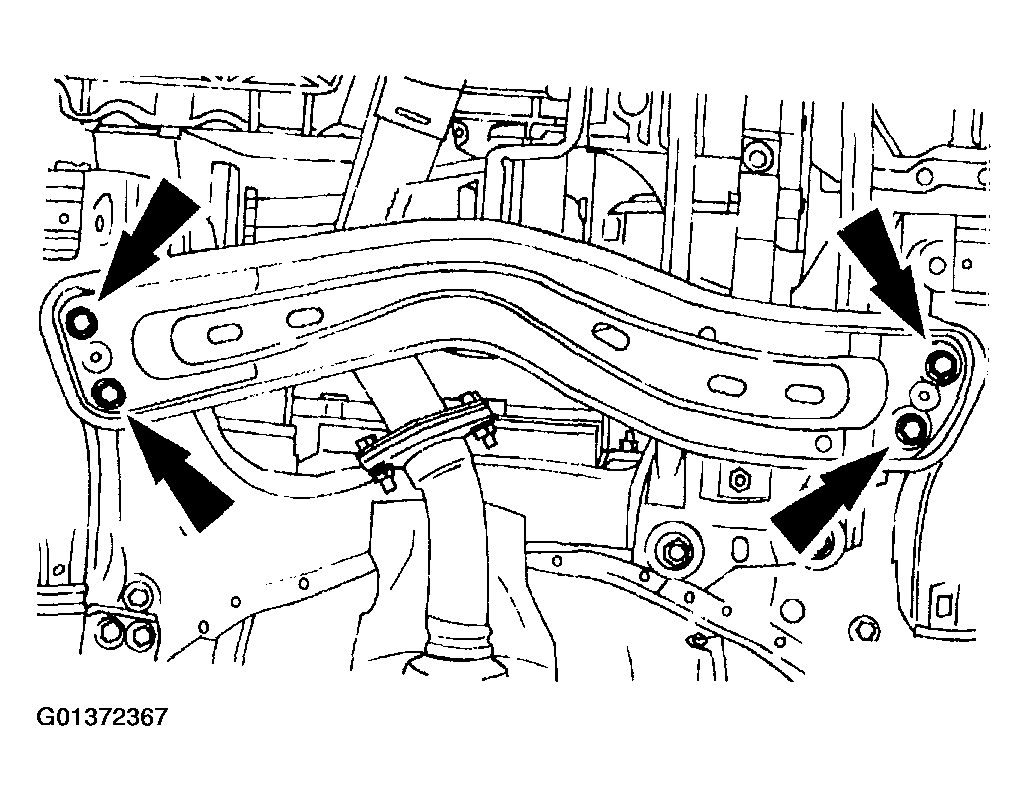

Fig 3: Removing Bolts And Crossmember
Courtesy of FORD MOTOR CO.

NOTE: Disconnect the A/C line from the retainer located on the front of the engine crossmember.

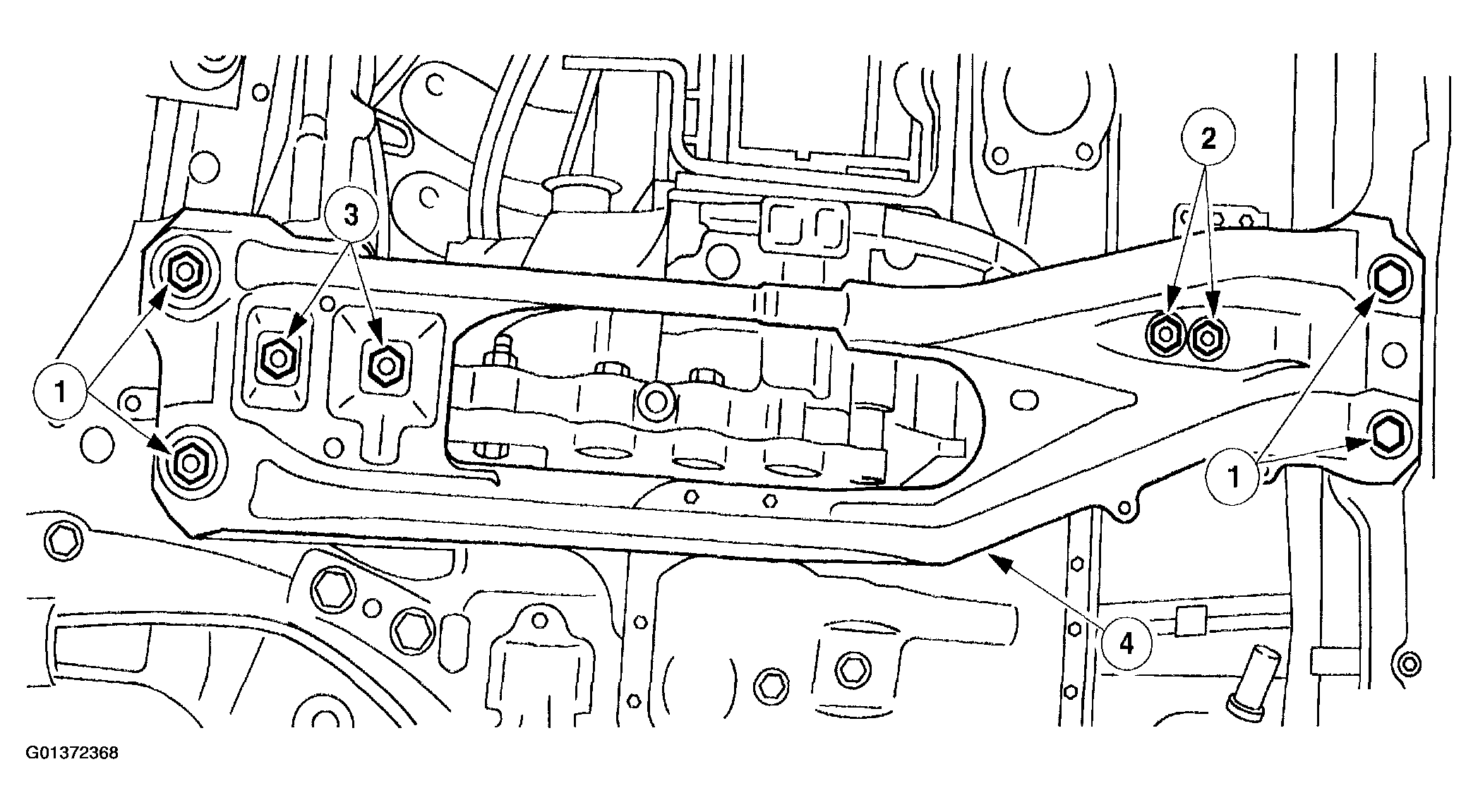

Fig 4: Removing Engine Support Crossmember

Courtesy of FORD MOTOR CO.

Remove the engine crossmember.
1. Remove the bolts and nuts.
2. Remove the lower front insulator nuts.
3. Remove the lower rear insulator nuts.
4. Remove the engine support crossmember.
Lower the vehicle.
Partially lower the rear of the engine to gain access to the lower rear insulator bolt.
- Loosen the nuts on Three-Bar Engine Support.

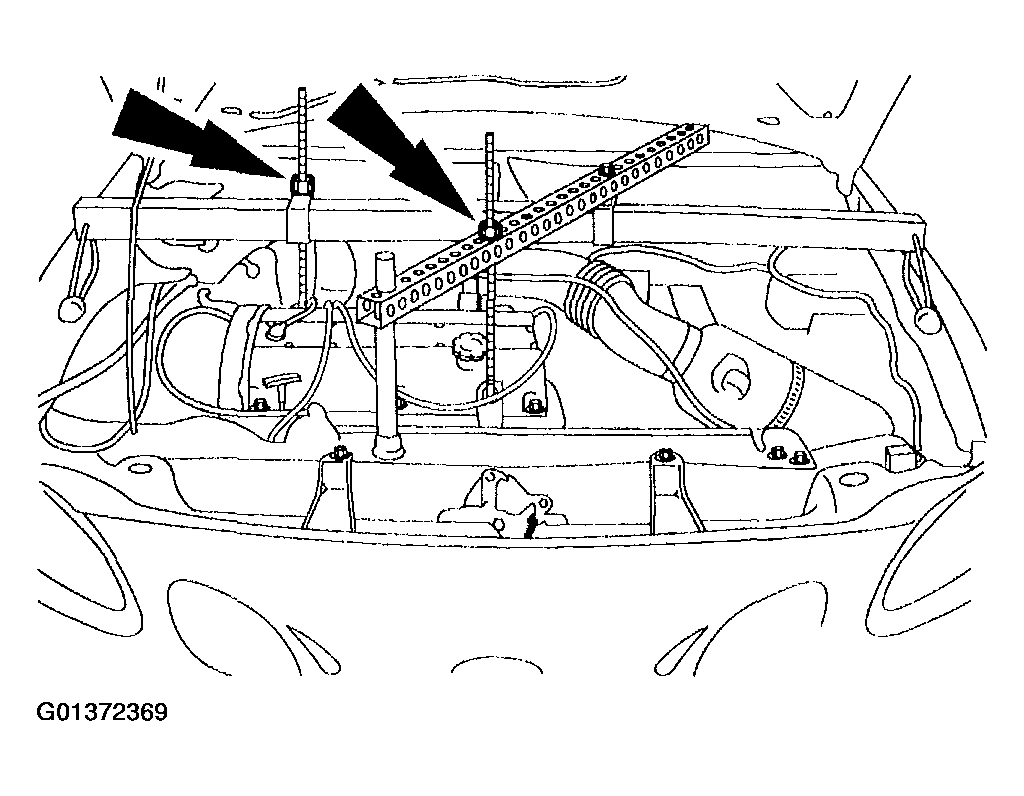

Fig 5: Partially Lowering Rear Of The Engine
Courtesy of FORD MOTOR CO.
Raise the vehicle.
Remove the lower rear support insulator.
1. Remove the nut and the bolt.
2. Remove the lower rear support insulator.

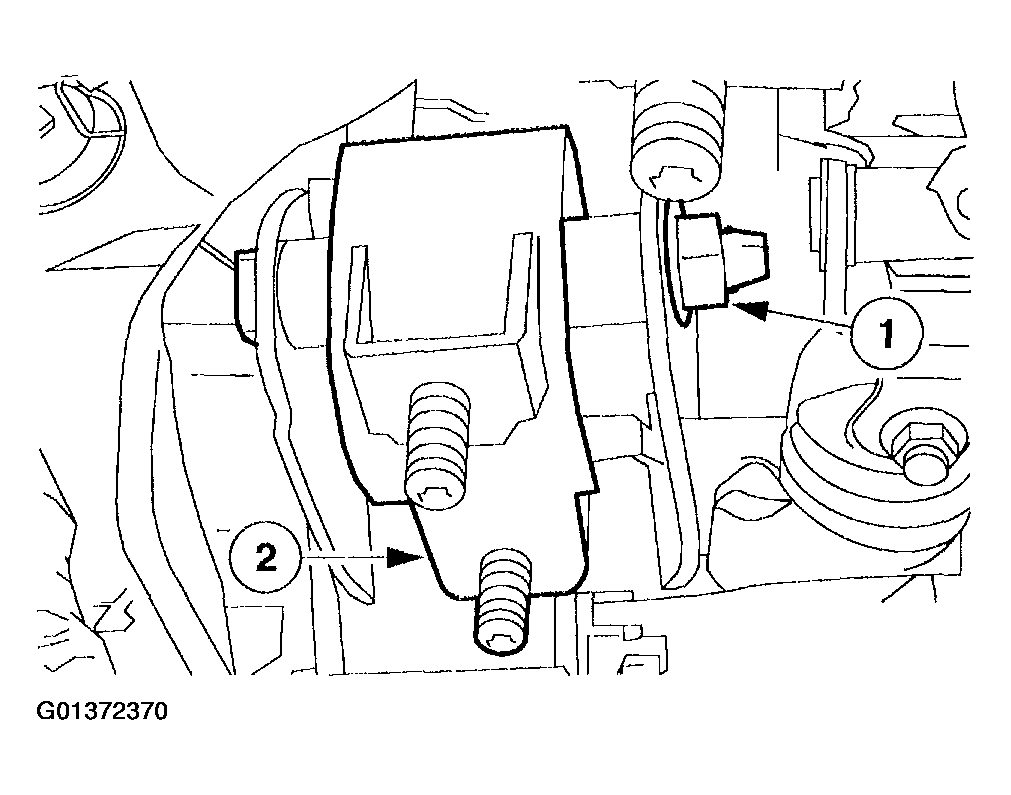

Fig 6: Removing Lower Rear Support Insulator
Courtesy of FORD MOTOR CO.
