Support Insulator - Lower, Front: Removal

NOTE: 2.0L Zetec shown; 2.0L SPI similar. Install Three-Bar Engine Support.

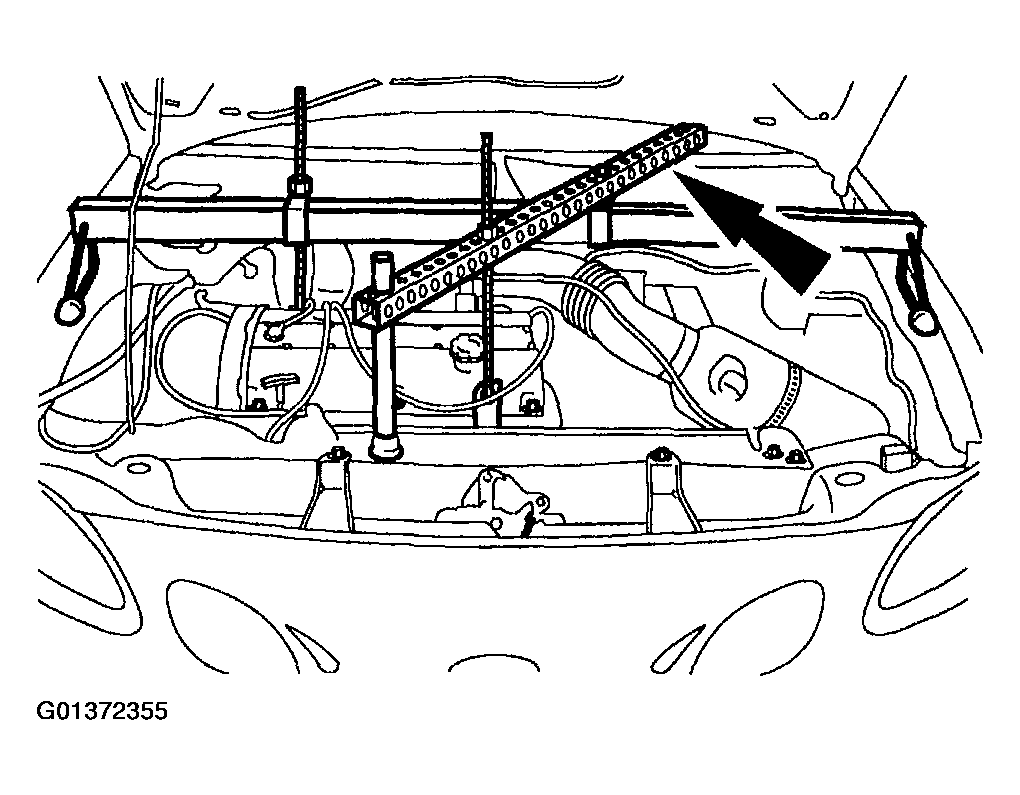

Fig 1: Installing Three-Bar Engine Support

Courtesy of FORD MOTOR CO.

Raise and support the vehicle; refer to JACKING & HOISTING .
Remove the splash shield bolts from the engine support crossmember.

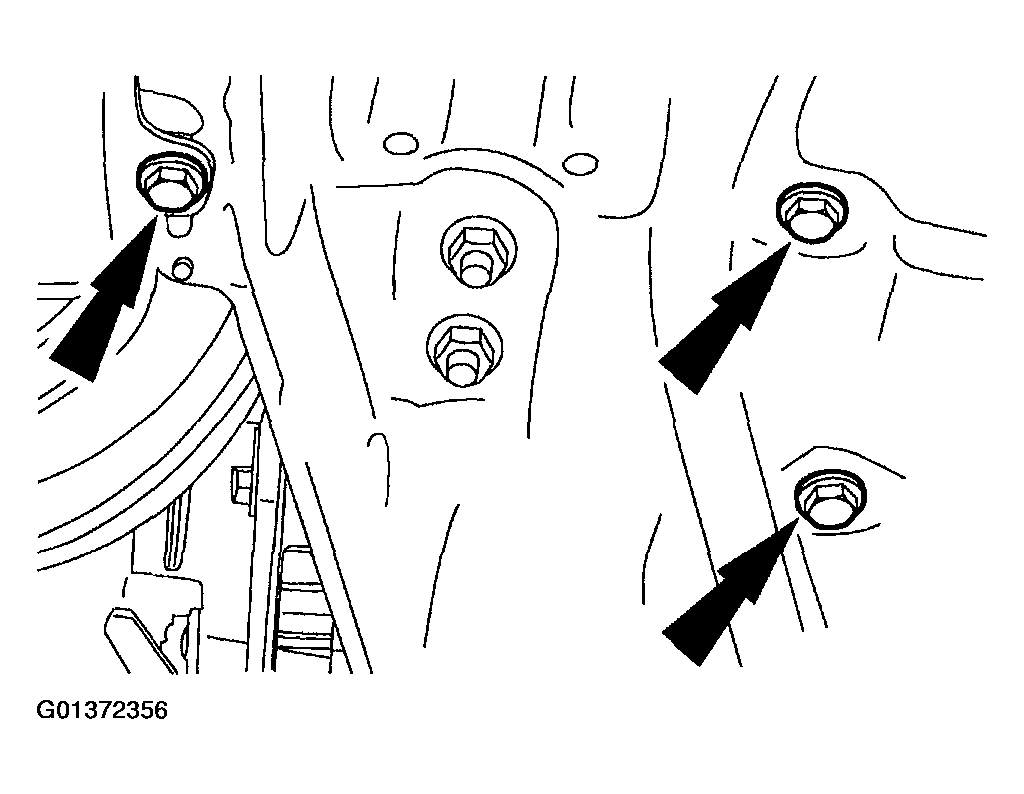

Fig 2: Removing Splash Shield Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and the crossmember.

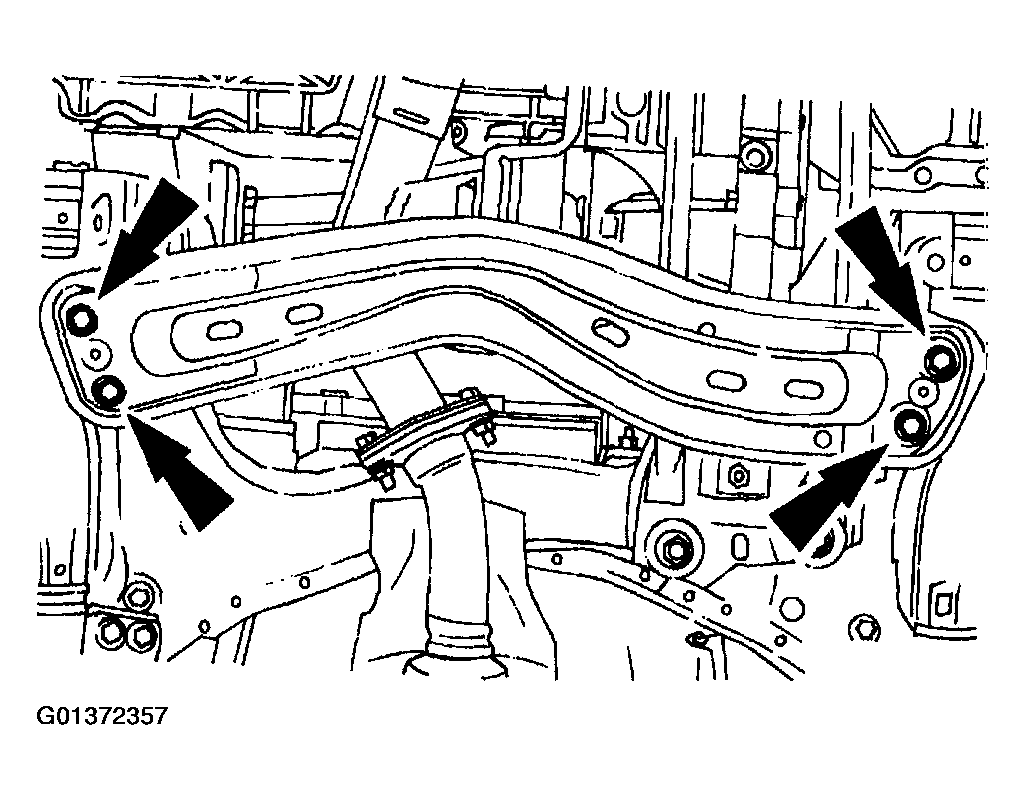

Fig 3: Removing Bolts And Crossmember
Courtesy of FORD MOTOR CO.

NOTE: Disconnect the A/C line from the retainer located on the front of the engine crossmember.

Fig 4: Removing Engine Support Crossmember

Courtesy of FORD MOTOR CO.

Remove the engine support crossmember.

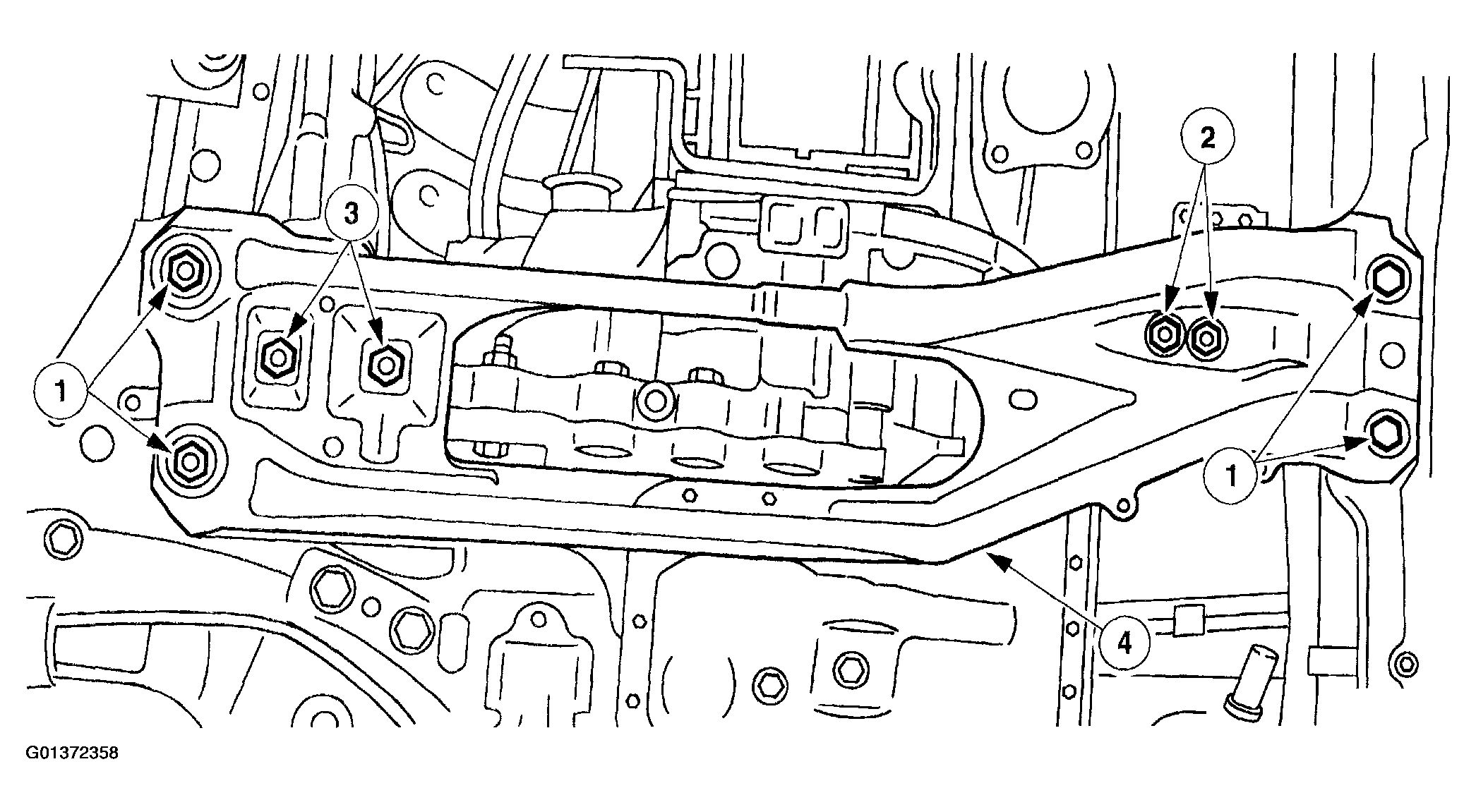

1. Remove the bolts and nuts.
2. Remove the lower front insulator nuts.
3. Remove the lower rear insulator nuts.
4. Remove the engine support crossmember.
Remove the lower front support insulator.
1. Remove the bolt.
2. Remove the lower front support isolator.

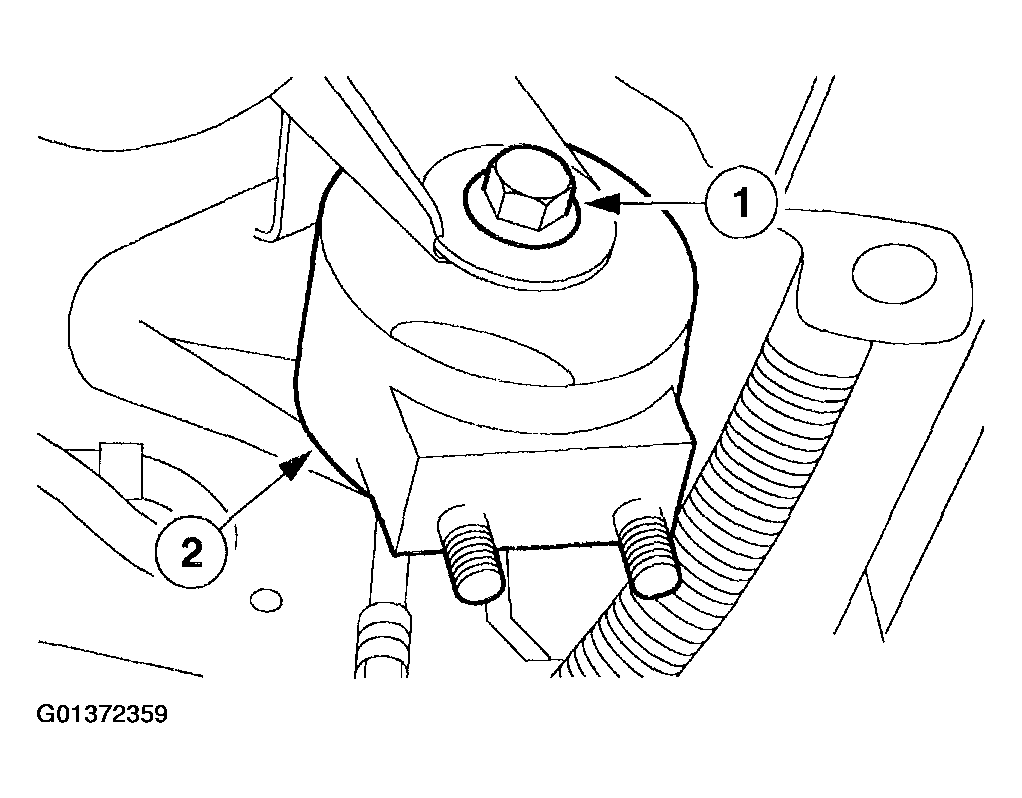

Fig 5: Removing Lower Front Support Isolator
