Support Insulator - LH: Removal

  1. Remove the battery tray; refer to BATTERY .
    2. NOTE: 2.0L Zetec shown; 2.0L SPI similar. Install Three-Bar Engine Support.

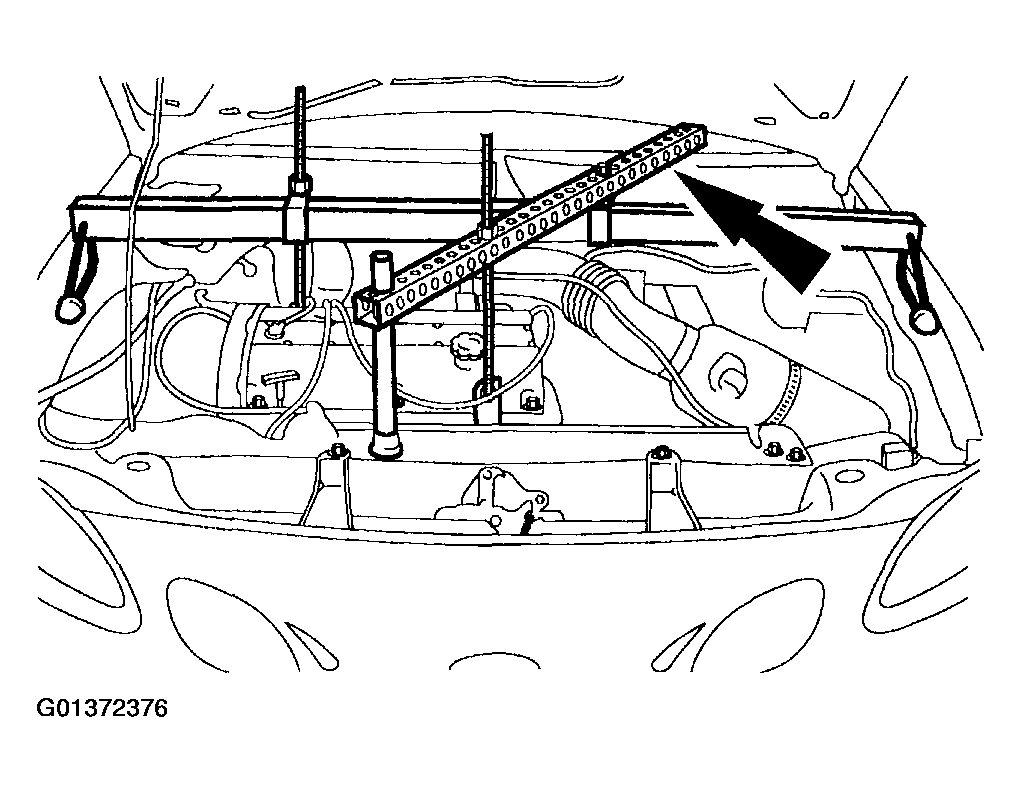

    Fig 1: Installing Three-Bar Engine Support
    G01372376Courtesy of FORD MOTOR CO.
  3. Remove the wiring harness from the LH support insulator and position aside.

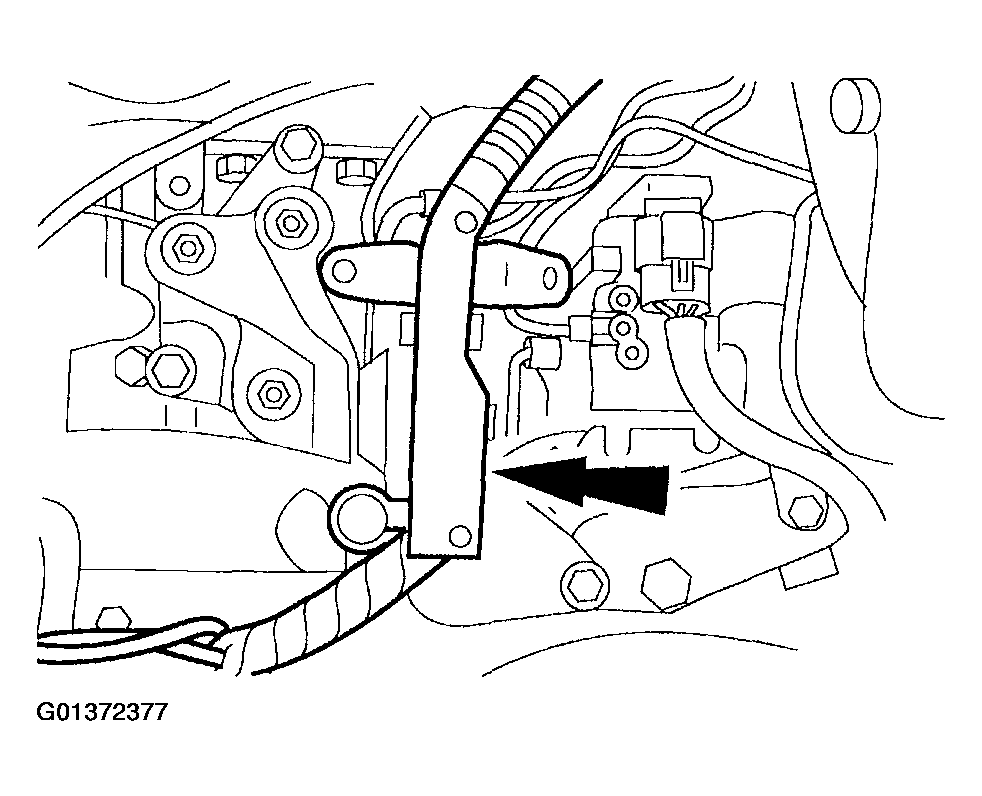

    Fig 2: Removing Wiring Harness From LH Support Insulator
    G01372377Courtesy of FORD MOTOR CO.
  4. If equipped with the 2.0L SPI, disconnect the clutch slave cylinder tube and hose from the LH insulator.
    1. Remove the retaining clip.
    2. Position the clutch slave cylinder tube and hose aside.

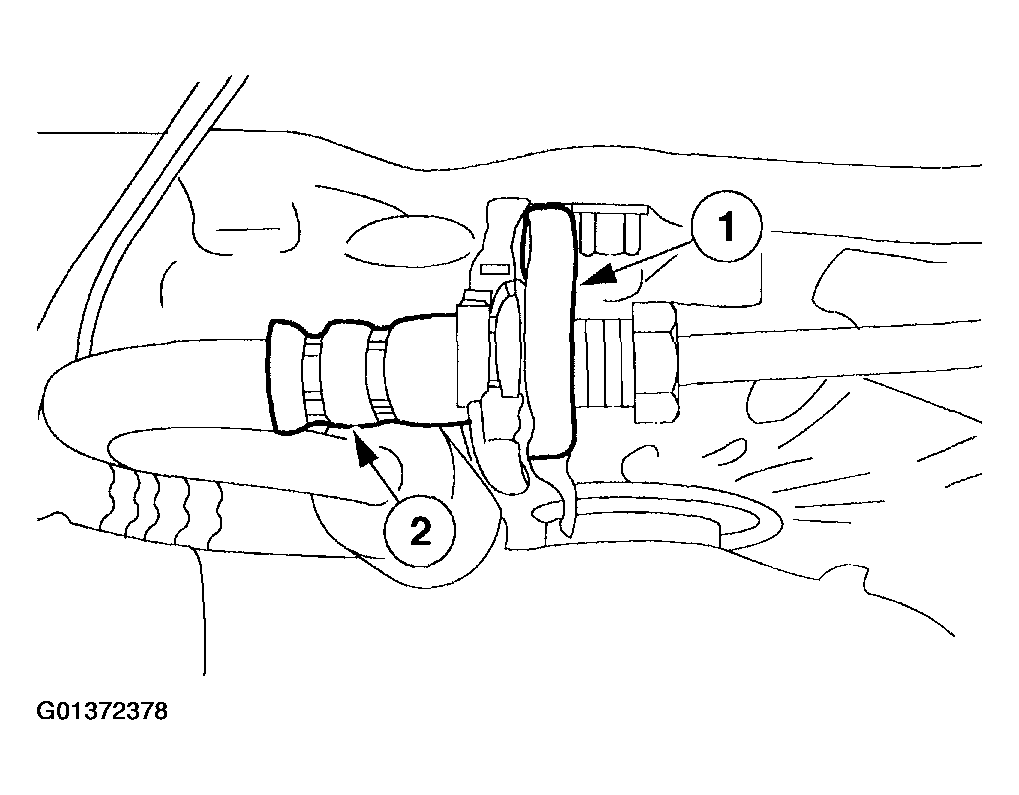

    Fig 3: Moving Clutch Slave Cylinder Tube - 2.0L SPI
    G01372378Courtesy of FORD MOTOR CO.
  5. Remove the LH support insulator to transaxle nuts and washers.

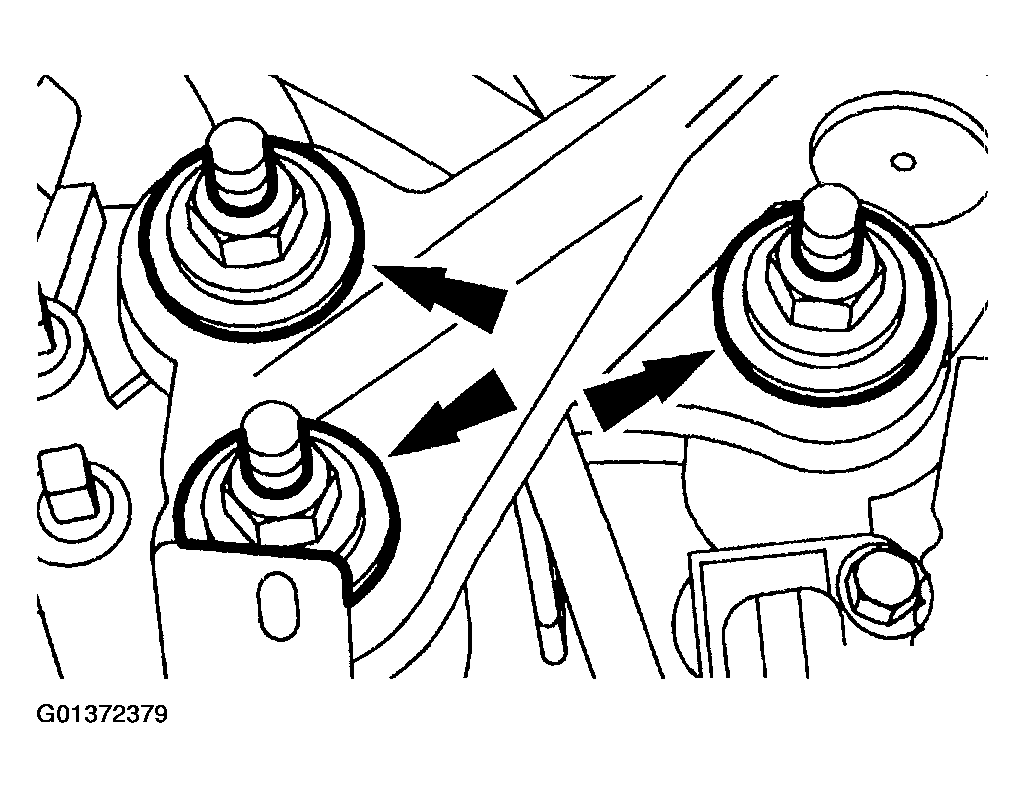

    Fig 4: Removing LH Support Insulator Nuts & Washers
    G01372379Courtesy of FORD MOTOR CO.
  6. Remove the LH support insulator.
    1. Remove the nuts.
    2. Remove the bolts.
    3. Remove the LH support insulator.

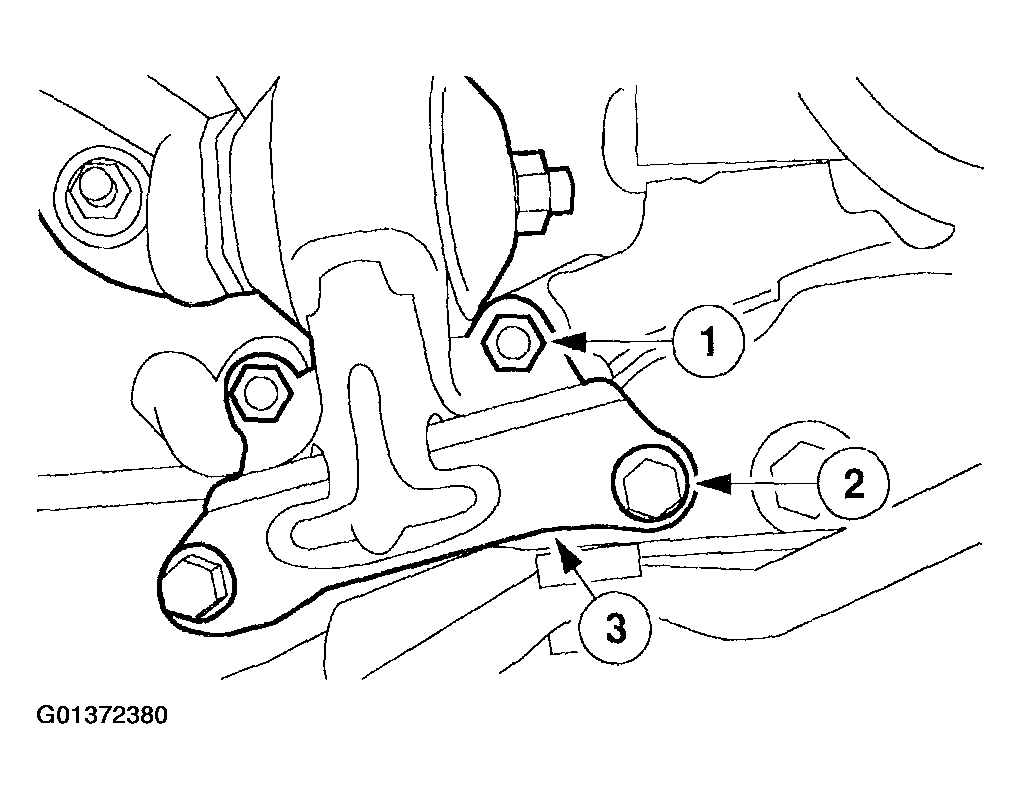

    Fig 5: Removing LH Support Insulator
    G01372380Courtesy of FORD MOTOR CO.
