Seal - Differential: Installation

  1. Use Differential Seal Replacer to install the new differential oil seal.

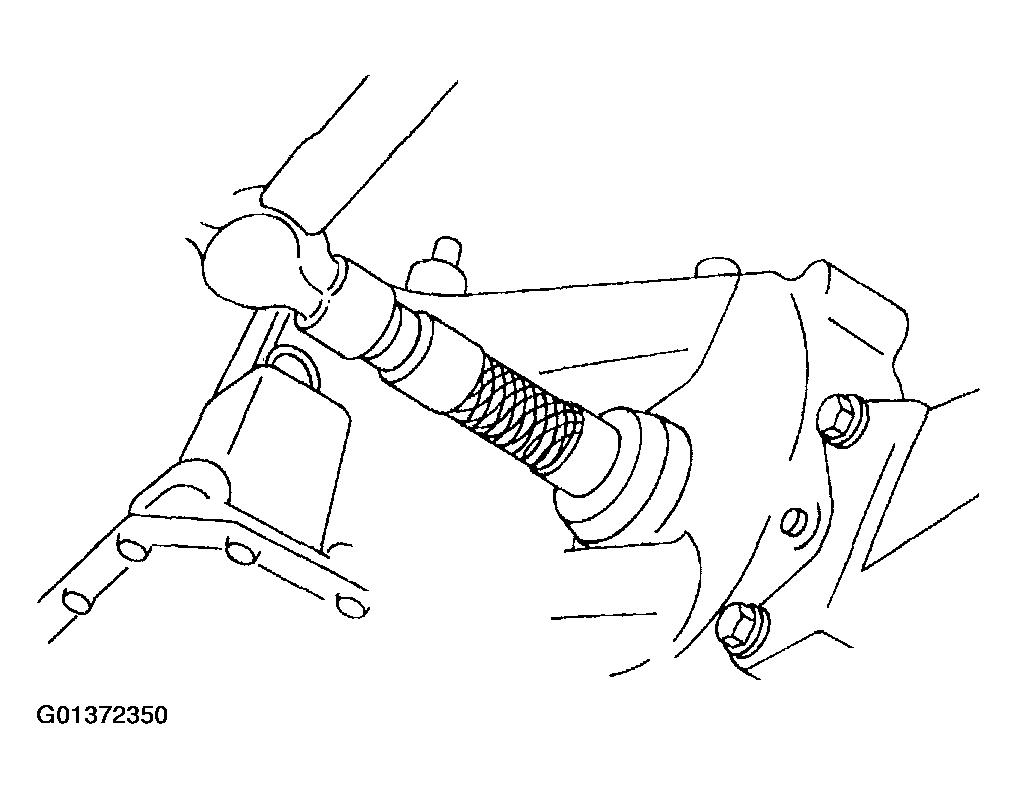

    Fig 1: Installing Differential Oil Seal
    G01372350Courtesy of FORD MOTOR CO.
  2. Install the halfshaft; refer to AXLE SHAFTS .
  3. Fill the transaxle; refer to FILL PROCEDURE .
