Shift Linkage: Notes

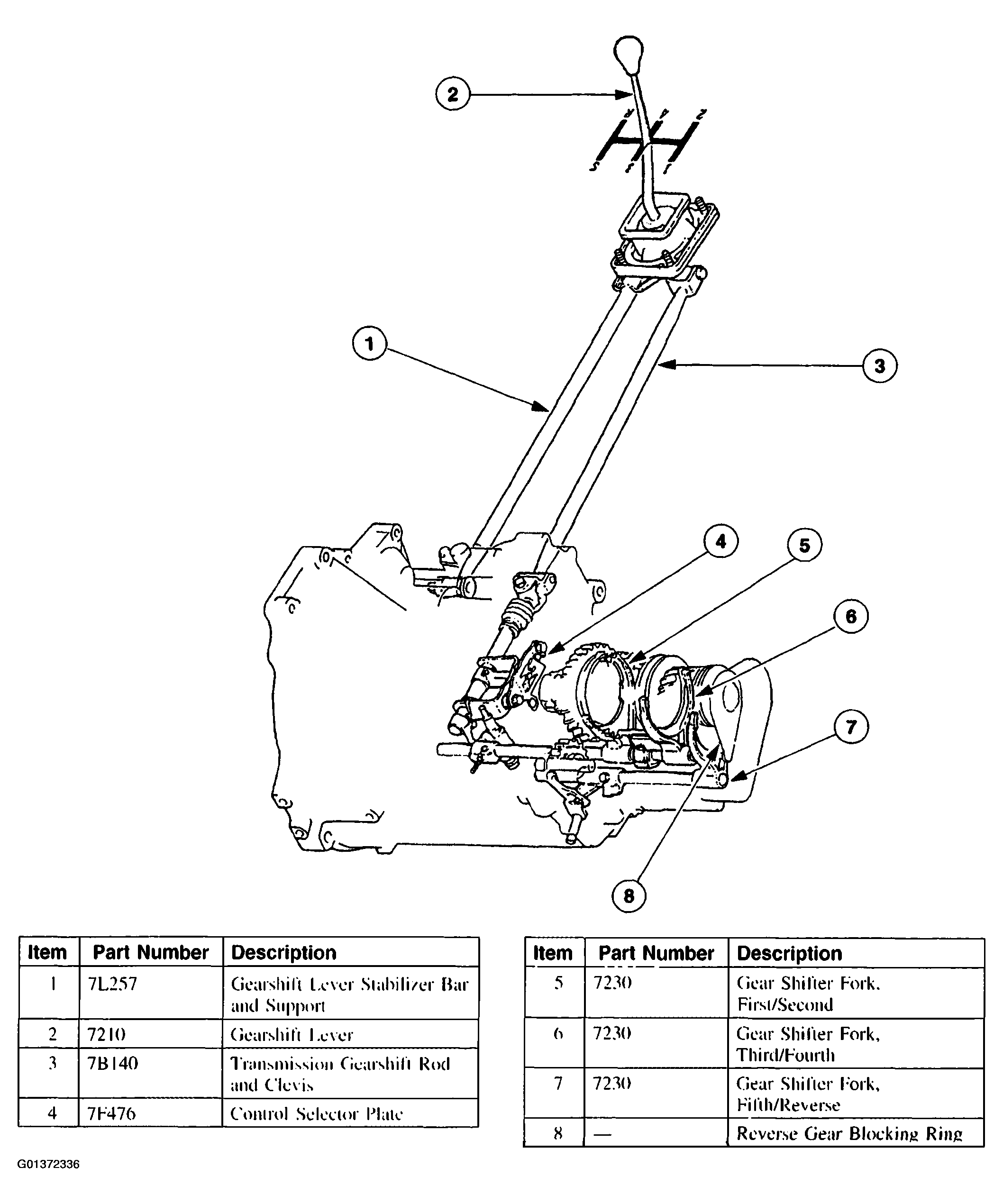

Fig 1: Identifying Shift Linkage Components

G01372336

Courtesy of FORD MOTOR CO.
