Slave Cylinder: Installation
To install, reverse the removal procedure.
Bleed the air from the system; refer to
MANUAL TRANSMISSION, CLUTCH & TRANSFER CASE - GENERAL INFORMATION
.

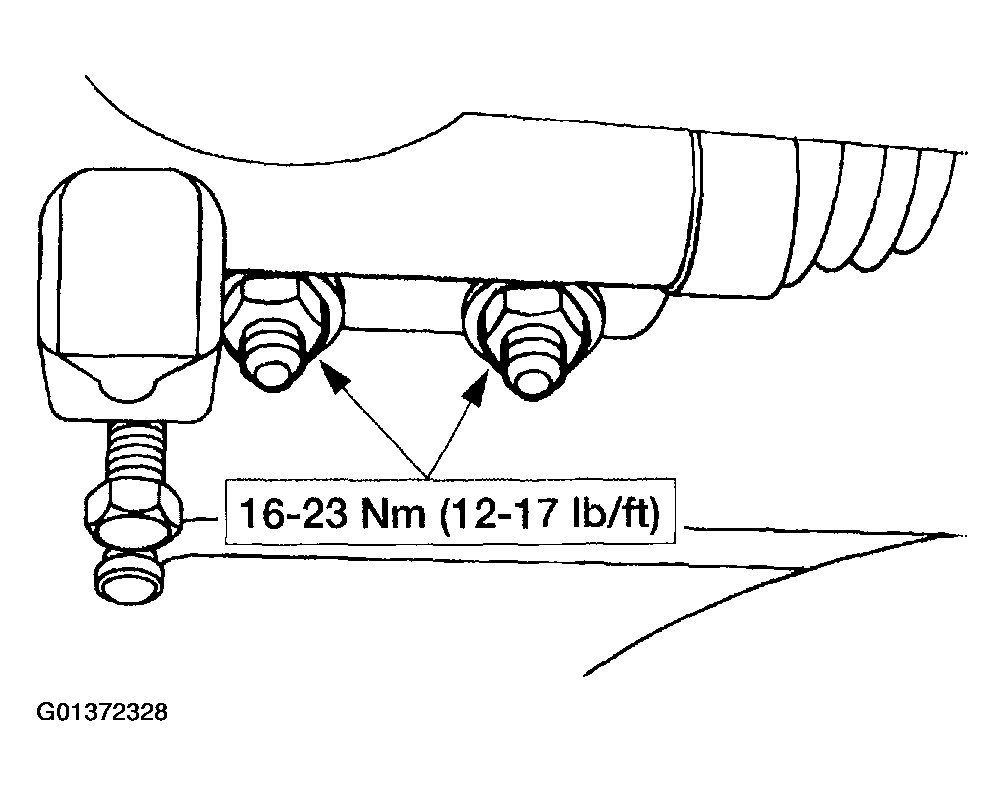

Fig 1: Installing Clutch Slave Cylinder Nuts
Courtesy of FORD MOTOR CO.
Fig 2: Connecting Lower Clutch Slave Cylinder Tube
Courtesy of FORD MOTOR CO.
