Subwoofer Amplifier

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY DISCONNECT .
Remove the RH rear quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

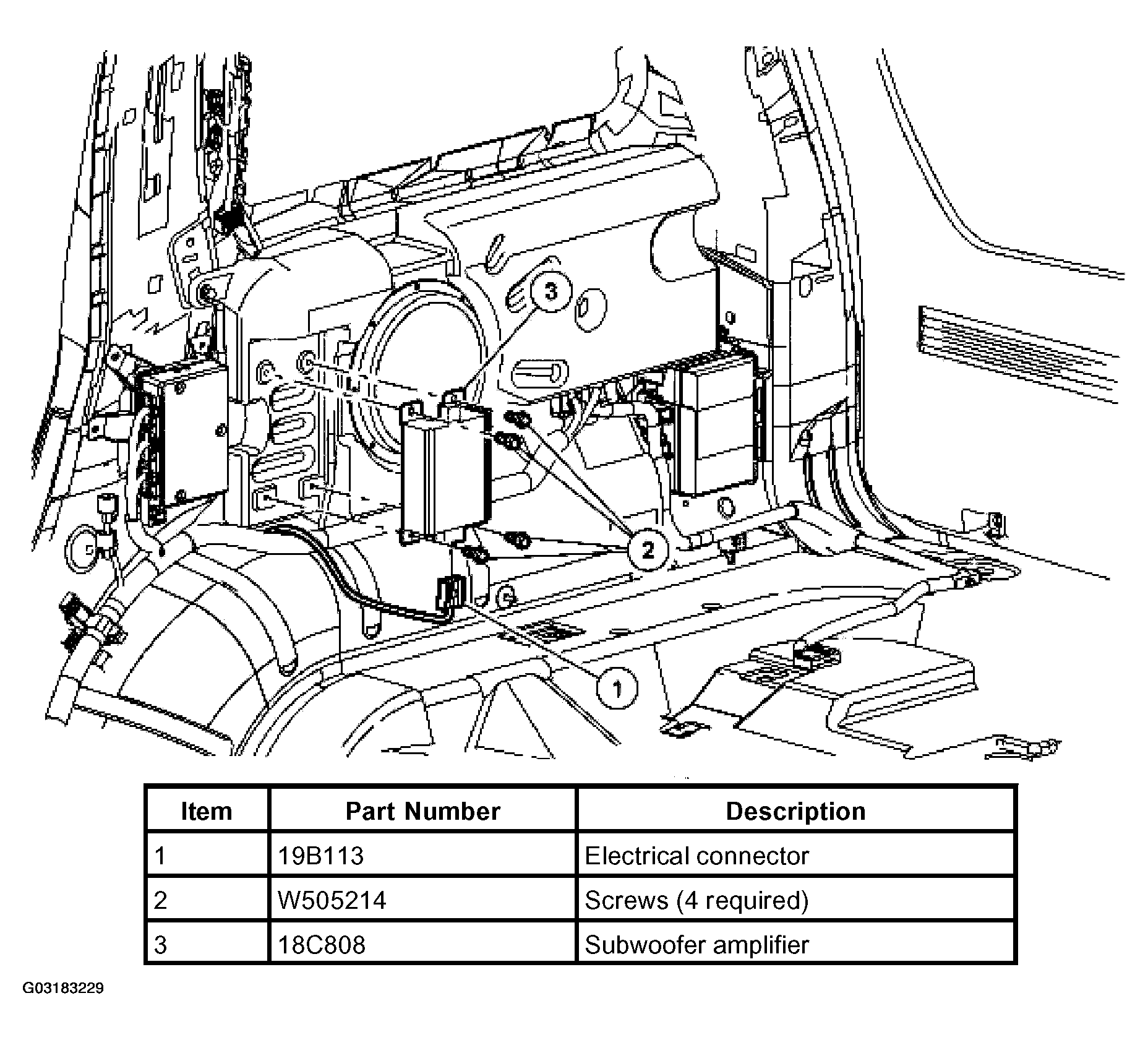

Fig 1: Identifying Removal Sequence Of Subwoofer Amplifier
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
