Pinpoint Test B: The Key-In-Ignition Chime Is Inoperative
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

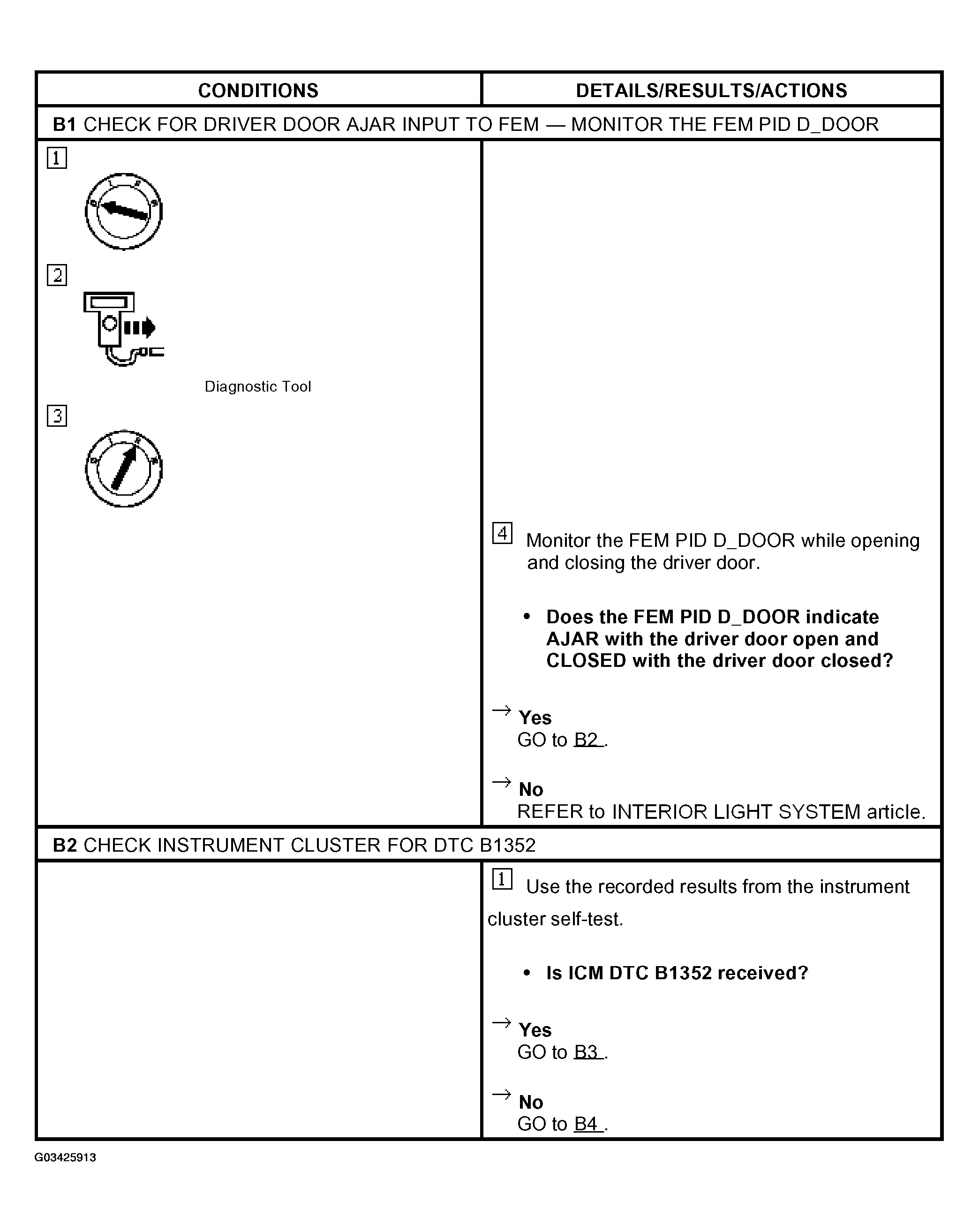

Fig 1: Pinpoint Test B Chart - Key-In-Ignition Chime Is Inoperative (B1 & B2)
Courtesy of FORD MOTOR CO.

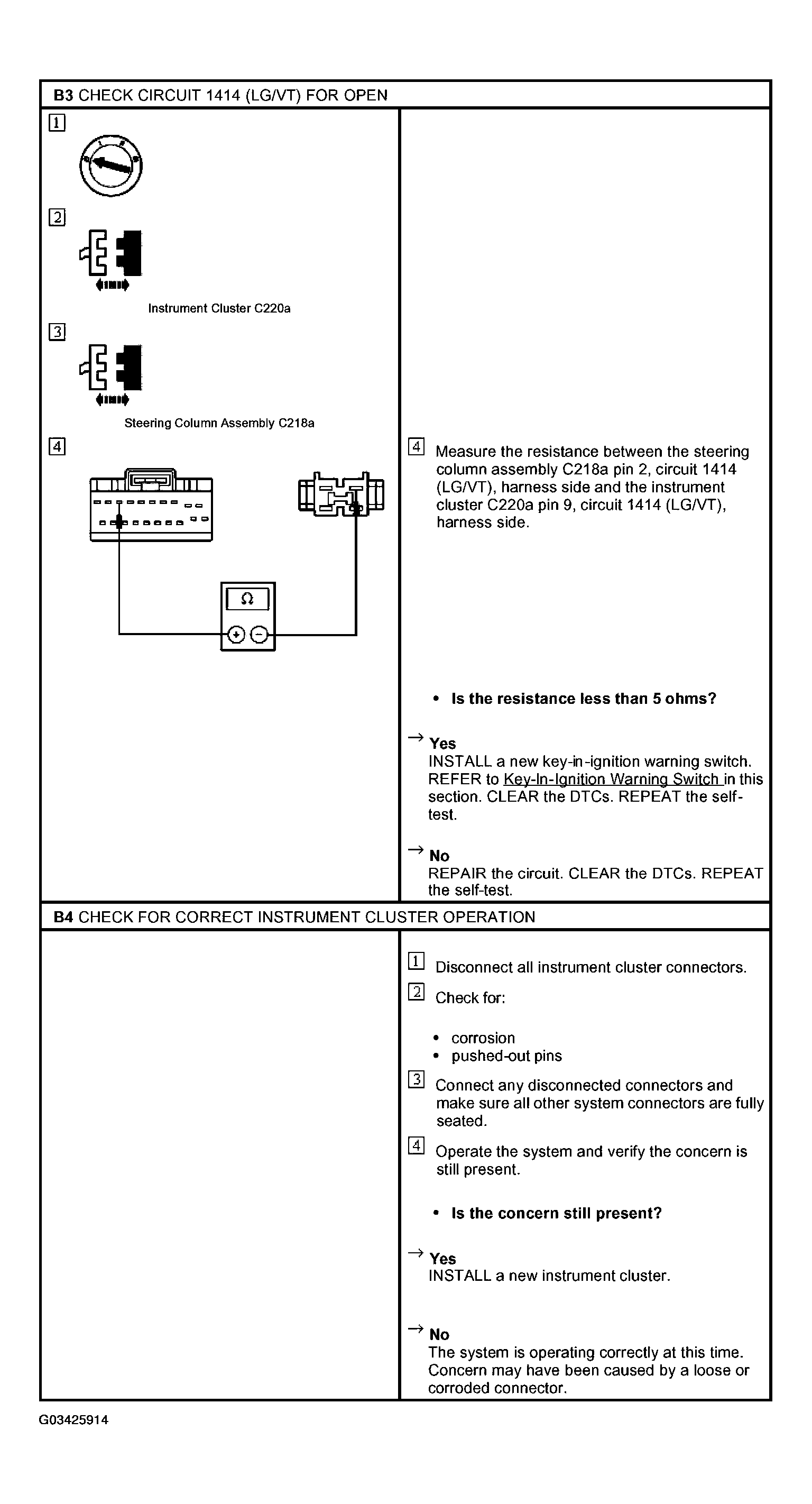

Fig 2: Pinpoint Test B Chart - Key-In-Ignition Chime Is Inoperative (B3 & B4)
