Steering Wheel Audio Controls

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag module. For additional information, Refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the components in the order indicated in Fig 1.

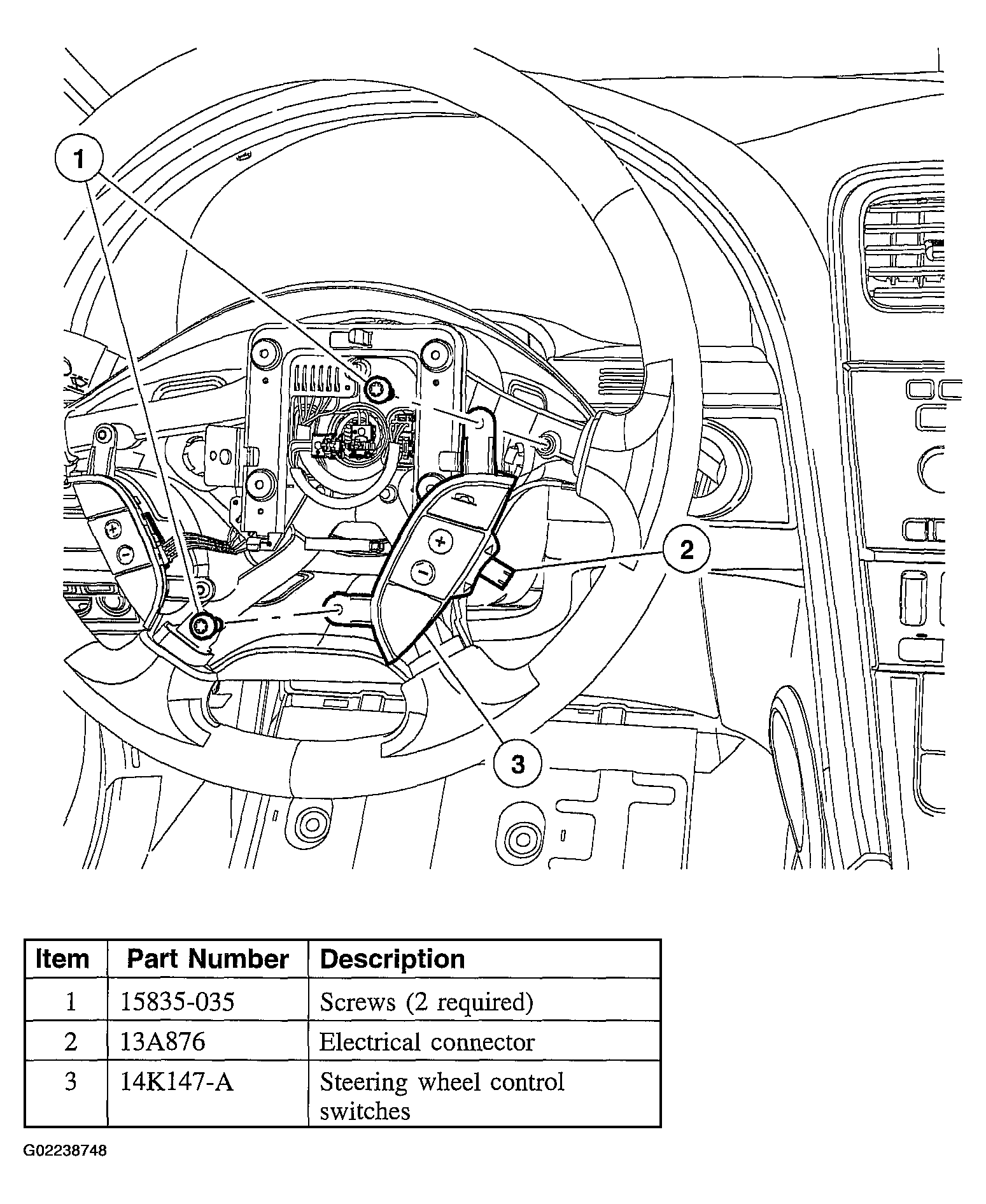

    Fig 1: Removing Sequence Of Steering Wheel Audio Controls Components
    G02238748Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
