Item 4: Inner Bellows Clamp Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the clamps.

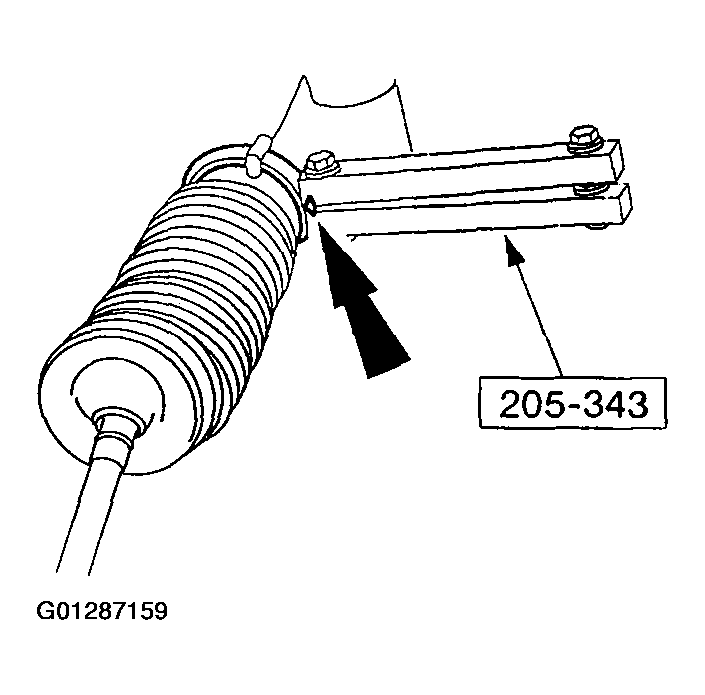

    Fig 1: Installing Clamps
    G01287159Courtesy of FORD MOTOR CO.
