Power Steering Fluid Cooler: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

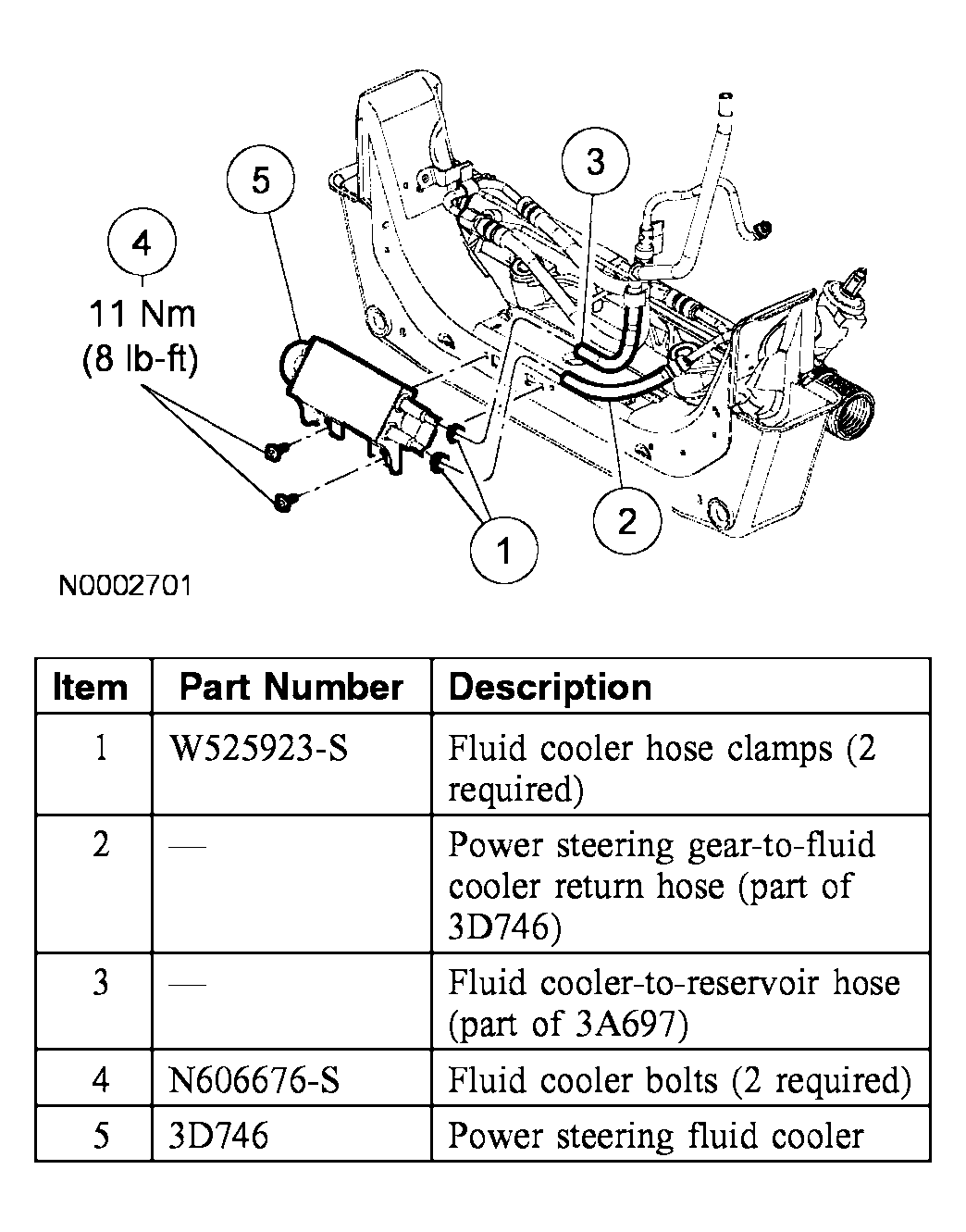

Fig 1: Removal And Installation Of Power Steering Fluid Cooler
G03945473Courtesy of FORD MOTOR CO.
