Oil Pump Screen And Pickup Tube: Removal

  1. Remove the oil pan (6675). For additional information, refer to OIL PAN .
  2. Remove the oil pump screen cover and tube (6622).
    • Remove the bolts.
    • Remove the oil pump screen cover and tube.
    • Remove and discard the oil pump inlet tube gasket (6626).

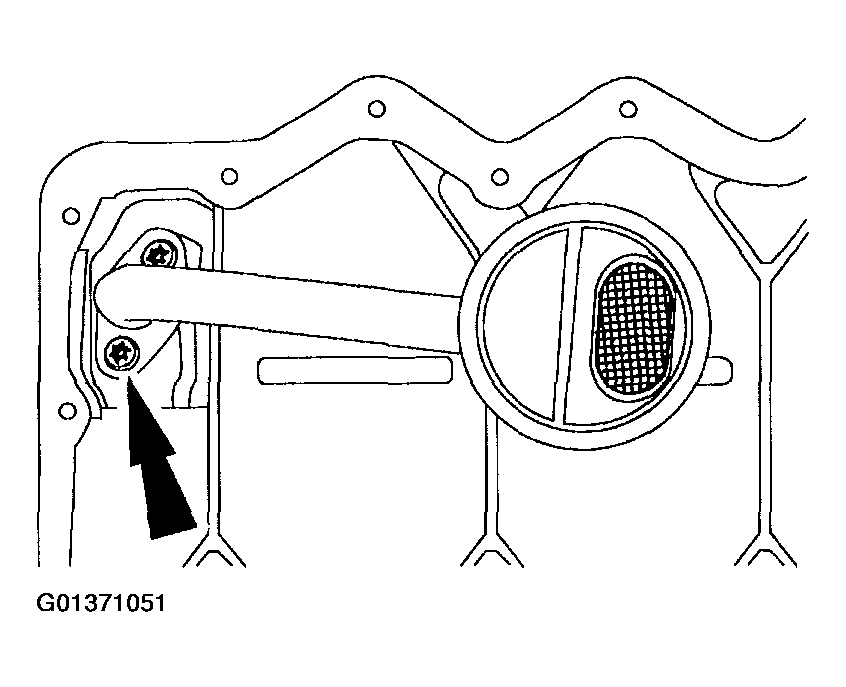

    Fig 1: Removing Bolts
    G01371051Courtesy of FORD MOTOR CO.
