Removal And Installation: Motor: Installation

  1. Connect the motor electrical connector.

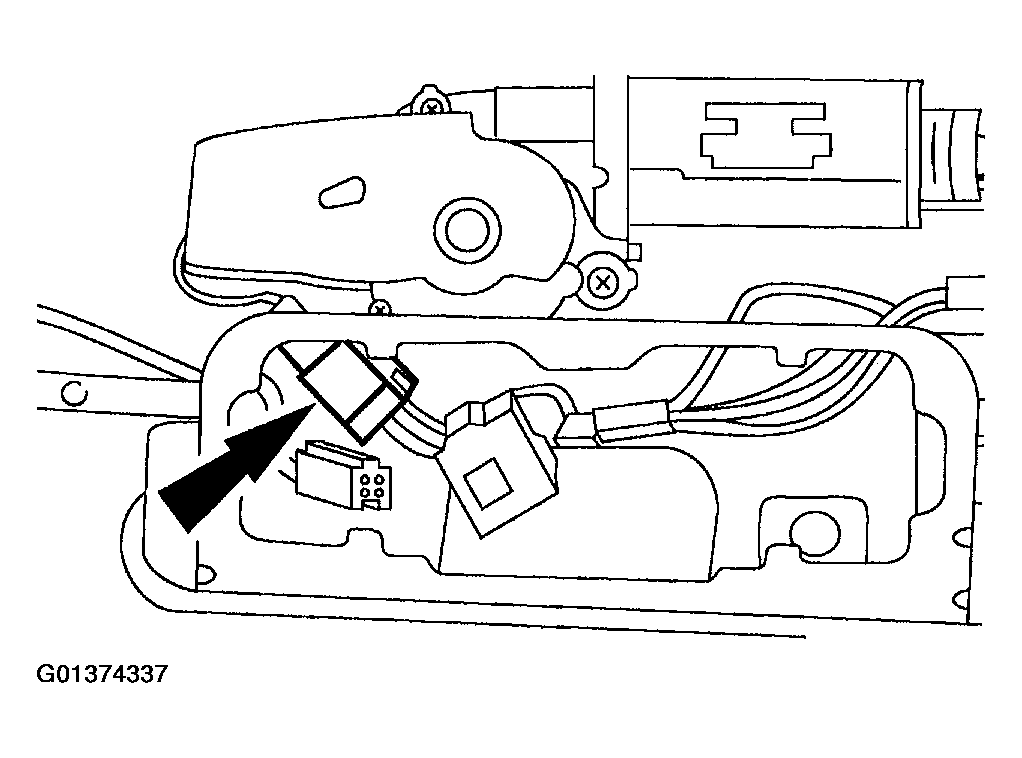

    Fig 1: Connecting Motor Electrical Connector
    G01374337Courtesy of FORD MOTOR CO.
  2. Connect the sliding roof panel switch connectors.

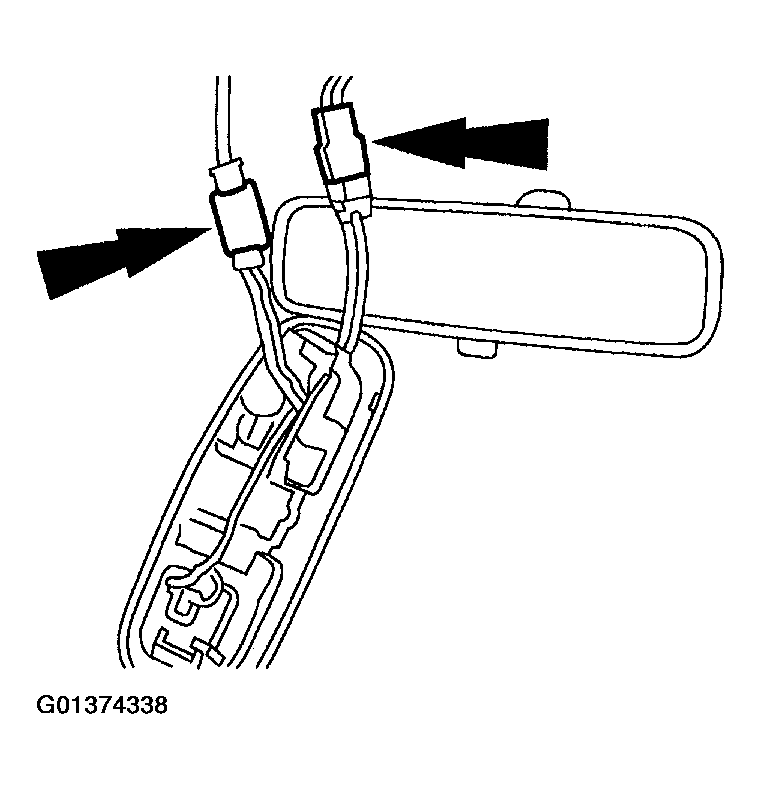

    Fig 2: Connecting Sliding Roof Panel Switch Connectors
    G01374338Courtesy of FORD MOTOR CO.
  3. Press the CLOSE side of the sliding roof panel switch until the motor stops.
  4. Install the motor.
    1. Position the motor.
    2. Install the screws.

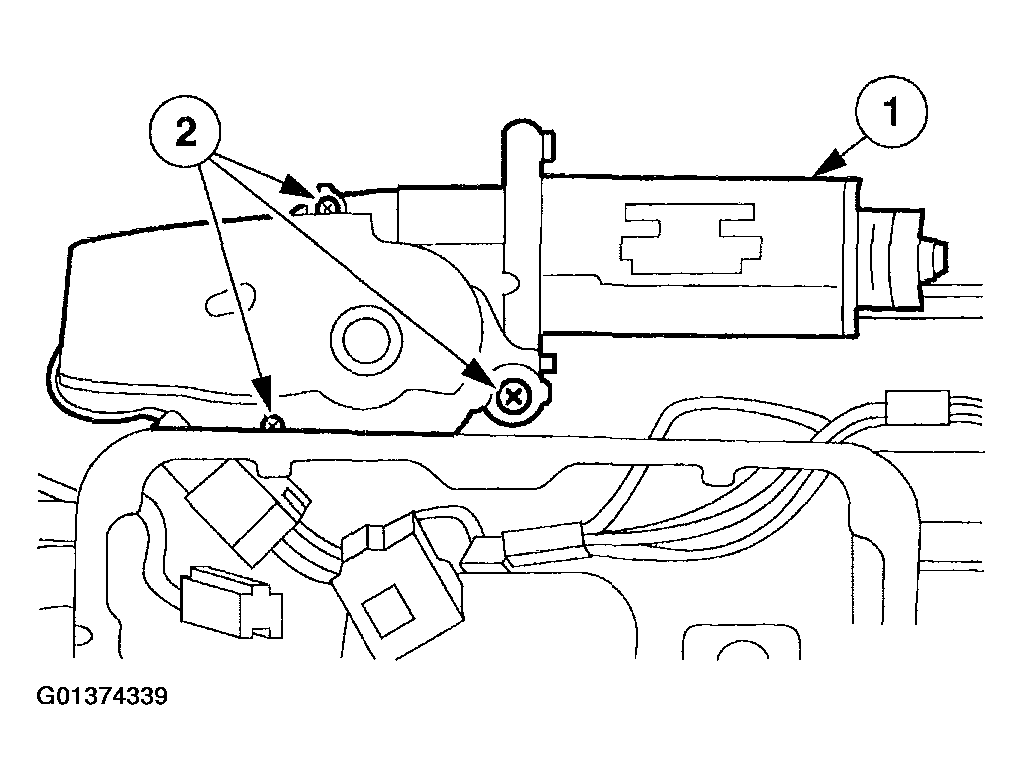

    Fig 3: Installing Motor
    G01374339Courtesy of FORD MOTOR CO.
  5. Install the headliner; refer to INTERIOR TRIM AND ORNAMENTATION .
