Home >> Ford >> 2003 >> ZX2 Standard >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Roof Opening Panel >> Removal And Installation >> Drain Hose-Rear >> Removal

Drain Hose-Rear: Removal

  1. Remove the headliner; refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Position the trunk side trim aside.
  3. Remove the rear drain hose.
    1. Remove the rear drain hose from the clips.
    2. Remove the rear drain hose.

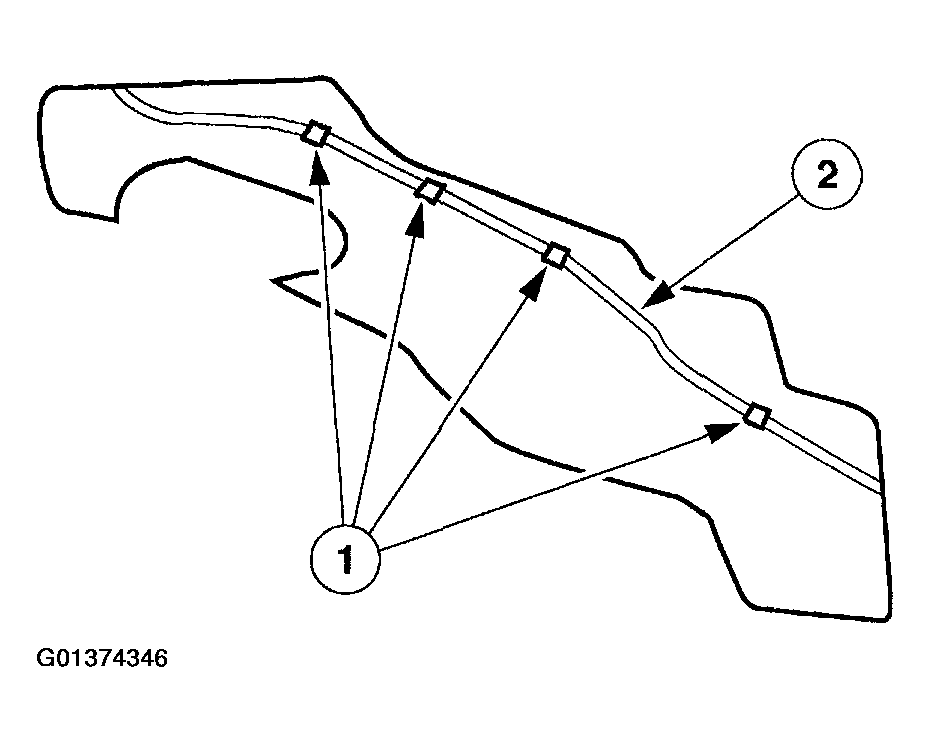

    Fig 1: Removing Rear Drain Hose
    G01374346Courtesy of FORD MOTOR CO.
