Removal And Installation: Seat-Front: Removal

NOTE: Driver side seat shown, passenger side seat similar.
  1. Slide the seat to its rearward position.
  2. Remove the front seat track to floor front bolts.
    Fig 1: Removing Front Seat Track To Floor Front Bolts
    G01373871Courtesy of FORD MOTOR CO.
  3. Slide the seat to the forward position.
  4. Remove the front seat track to floor rear bolts.

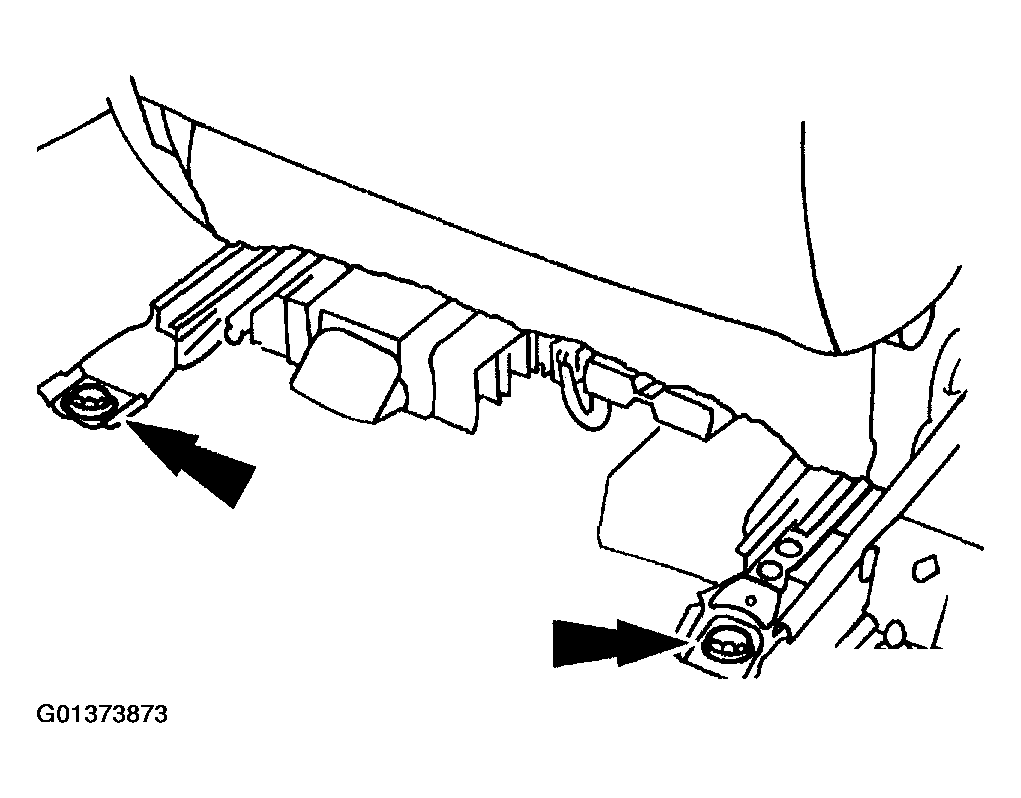

    Fig 2: Locating Bolts
    G01373873Courtesy of FORD MOTOR CO.
  5. Disconnect the safety belt warning indicator switch electrical connector.
    Fig 3: Disconnecting Safety Belt Warning Indicator Switch Electrical Connector
    G01373874Courtesy of FORD MOTOR CO.
  6. Remove the front seat.
