Mirror-Outside Rear View: Removal

Disconnect the battery ground cable (14301).

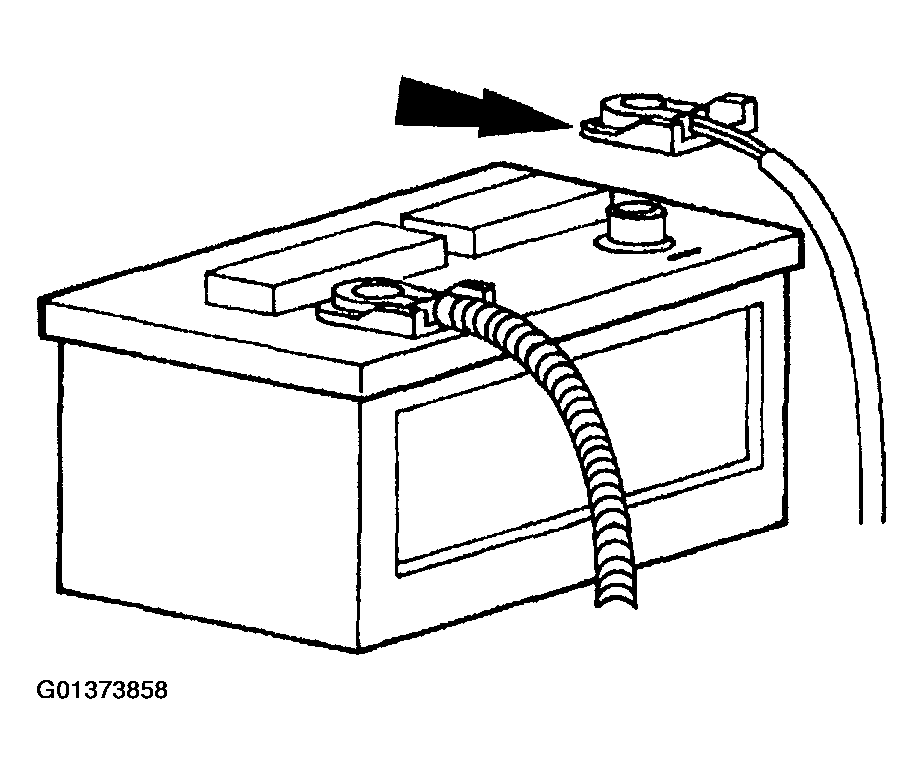

Fig 1: Disconnecting Battery Ground Cable (14301)
Courtesy of FORD MOTOR CO.
Remove the front door trim panel (23942); refer to INTERIOR TRIM AND ORNAMENTATION .
- Peel back the watershield.
Remove the rear view mirror mounting hole cover (17K709).

Fig 2: Removing Rear View Mirror Mounting Hole Cover
Courtesy of FORD MOTOR CO.
Disconnect the power mirror electrical connector.

Fig 3: Disconnecting Power Mirror Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the outside rear view mirror (17682).
1. Remove the screws.
2. Remove the outside rear view mirror.

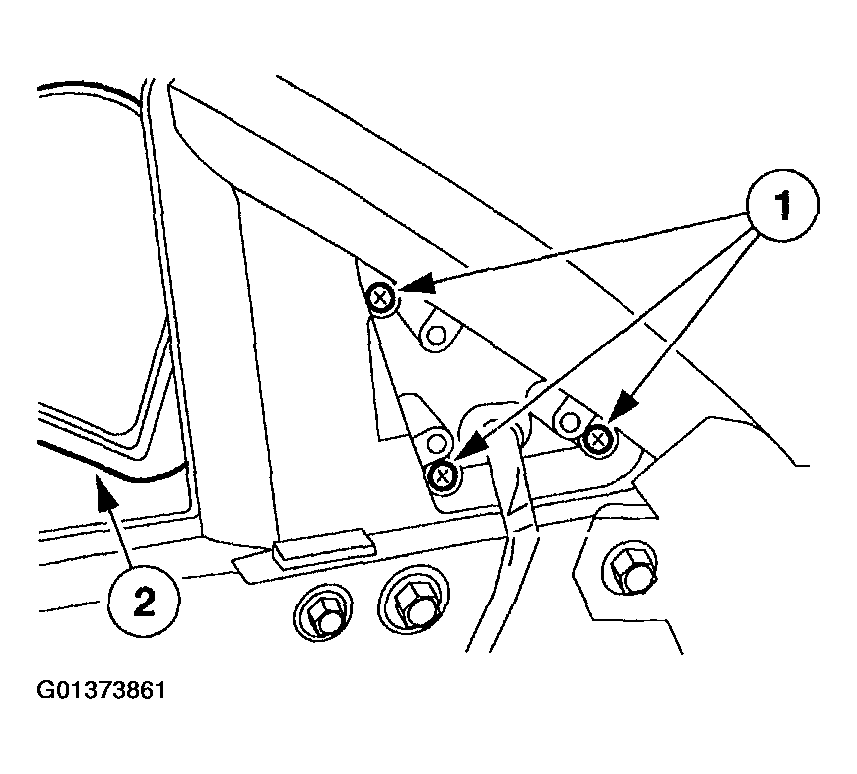

Fig 4: Removing Outside Rear View Mirror
Courtesy of FORD MOTOR CO.
