Wipers And Washers
>>
Specifications
>>
Torque Specifications
Torque Specifications

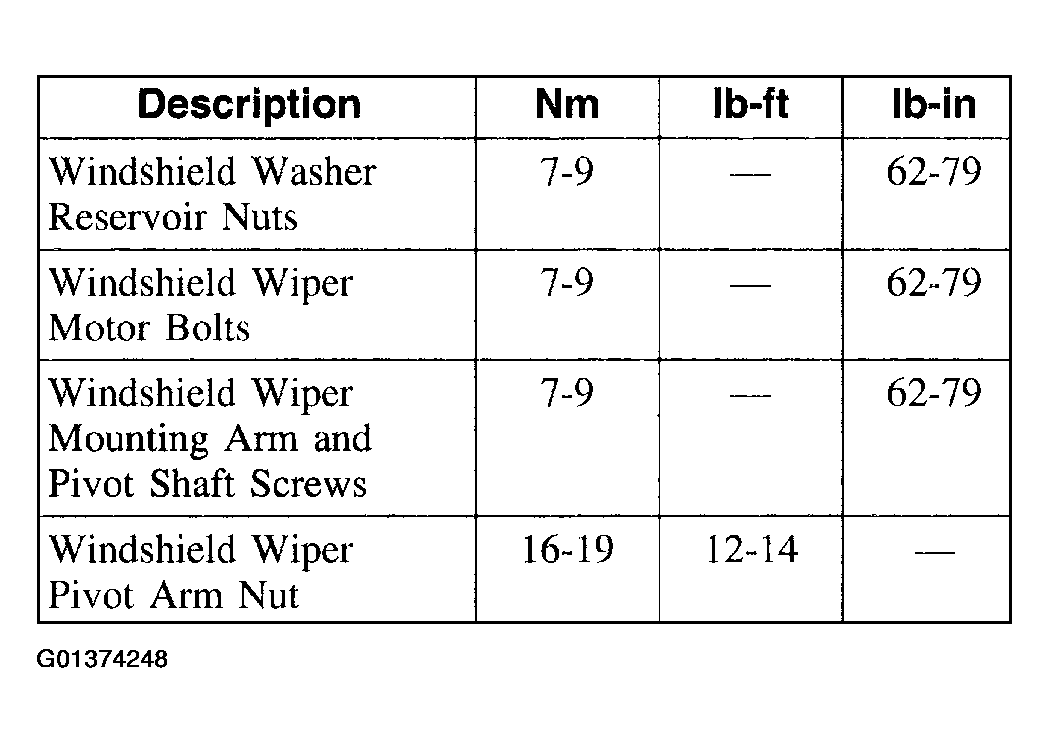

Fig 1: Wipers And Washers Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Wipers And Washers Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
