Cable Adjustment - 2.0L SPI

Disconnect the speed control actuator cable from the throttle control lever.
Remove the (A) speed control actuator cable adjuster clip from the (B) speed control actuator cable adjuster.

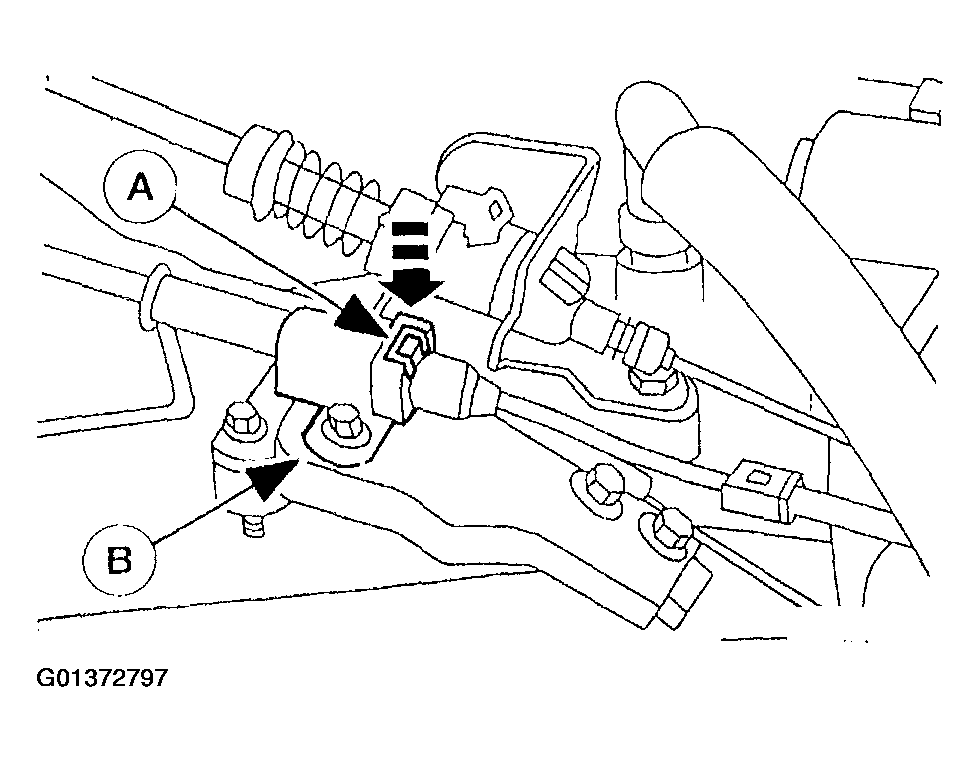

Fig 1: Removing Speed Control Actuator Cable Adjuster Clip
Courtesy of FORD MOTOR CO.
Adjust the speed control actuator cable until freeplay is within specifications.

Fig 2: Identifying Speed Control Actuator Cable Adjustment Specifications
Courtesy of FORD MOTOR CO.
Install the (A) speed control actuator cable adjuster clip into the (B) cable adjuster.

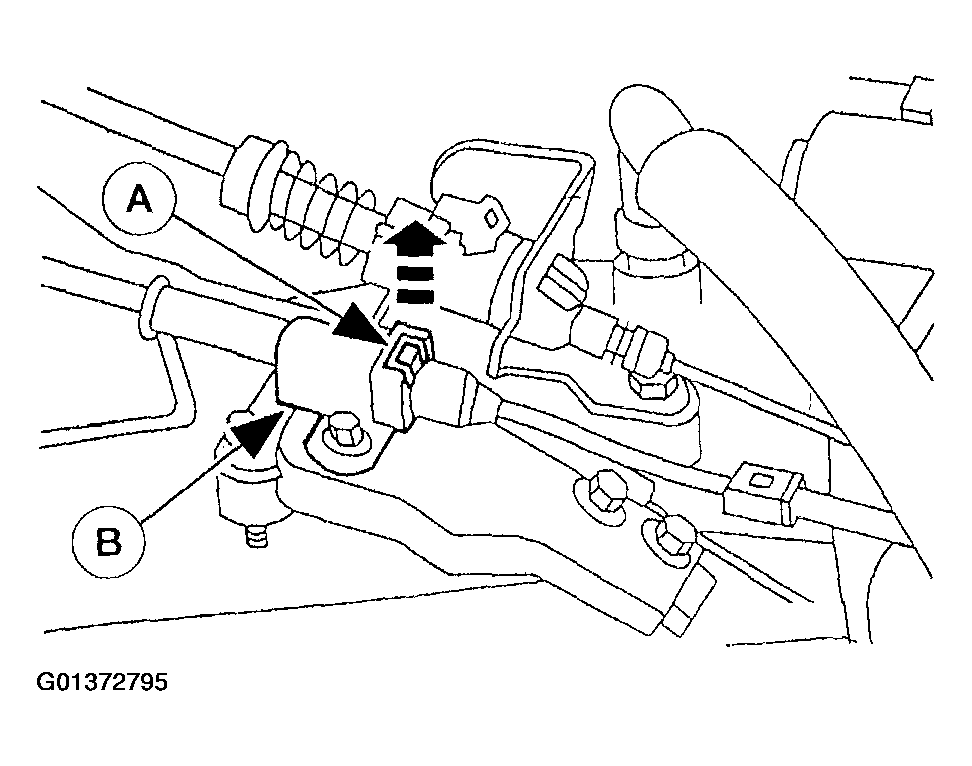

Fig 3: Installing Speed Control Actuator Cable Adjuster Clip Into Cable Adjuster
Courtesy of FORD MOTOR CO.
