Steering Gear Bushing/Preload

  1. Raise and support the vehicle so the wheels are just above the ground; for additional information, refer to JACKING & HOISTING .

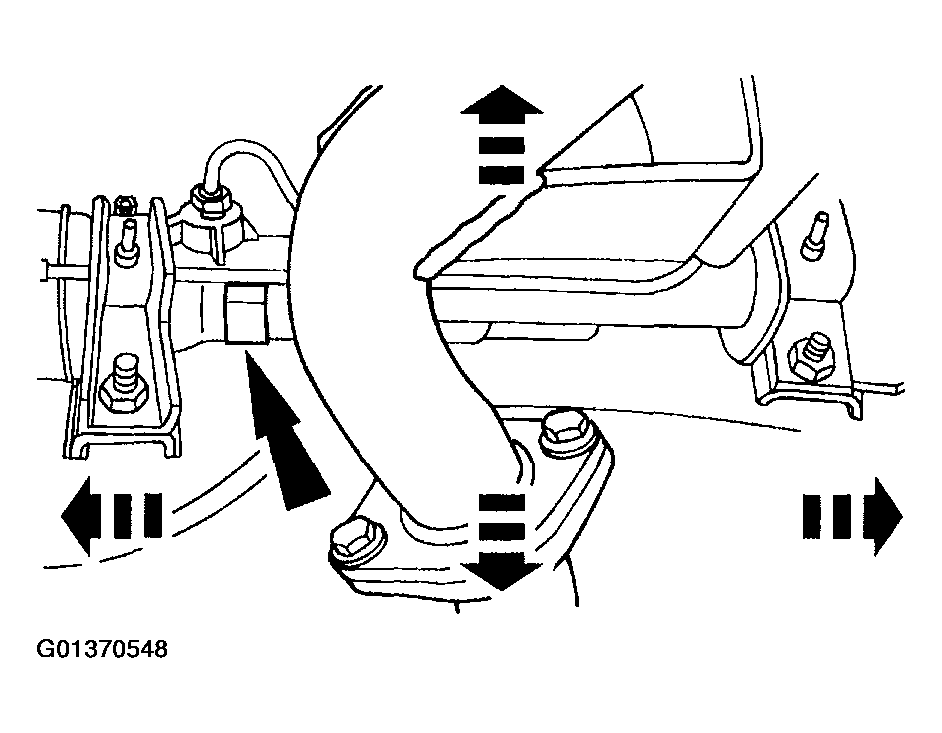

    Fig 1: Checking Steering Gear For Looseness
    G01370548Courtesy of FORD MOTOR CO.
  2. Check for looseness (clatter) in the steering gear by moving it up, down, fore and aft.
  3. If the steering gear is excessively loose, replace the steering gear; for additional information, refer to GEAR in POWER STEERING article.
