Clutch/Band Application Charts

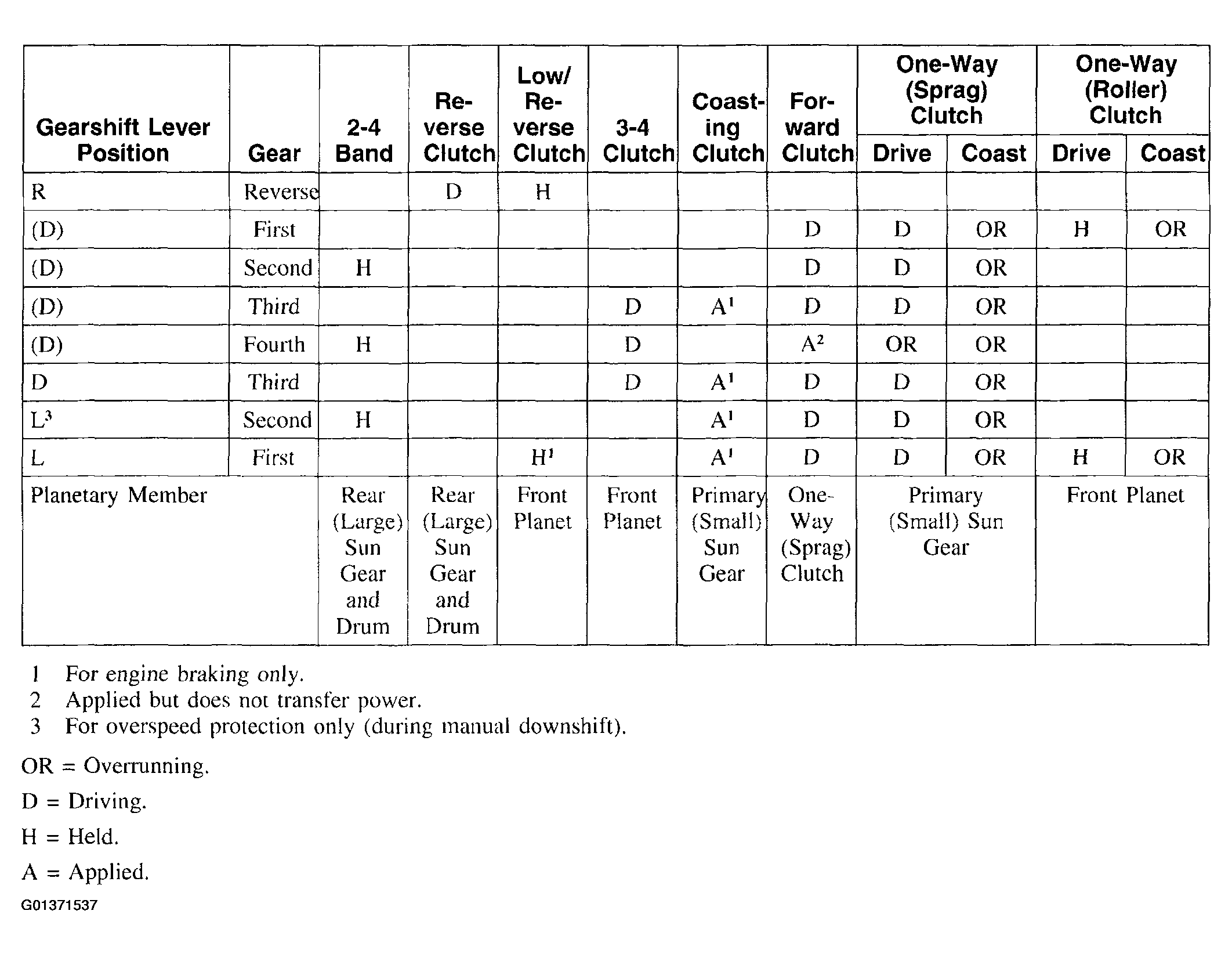

Fig 1: Clutch/Band Application Charts
G01371537Courtesy of FORD MOTOR CO.
