Differential Fluid Seals: Removal

  1. Remove the transmission case plug and washer and drain the transmission fluid. Discard the washer.

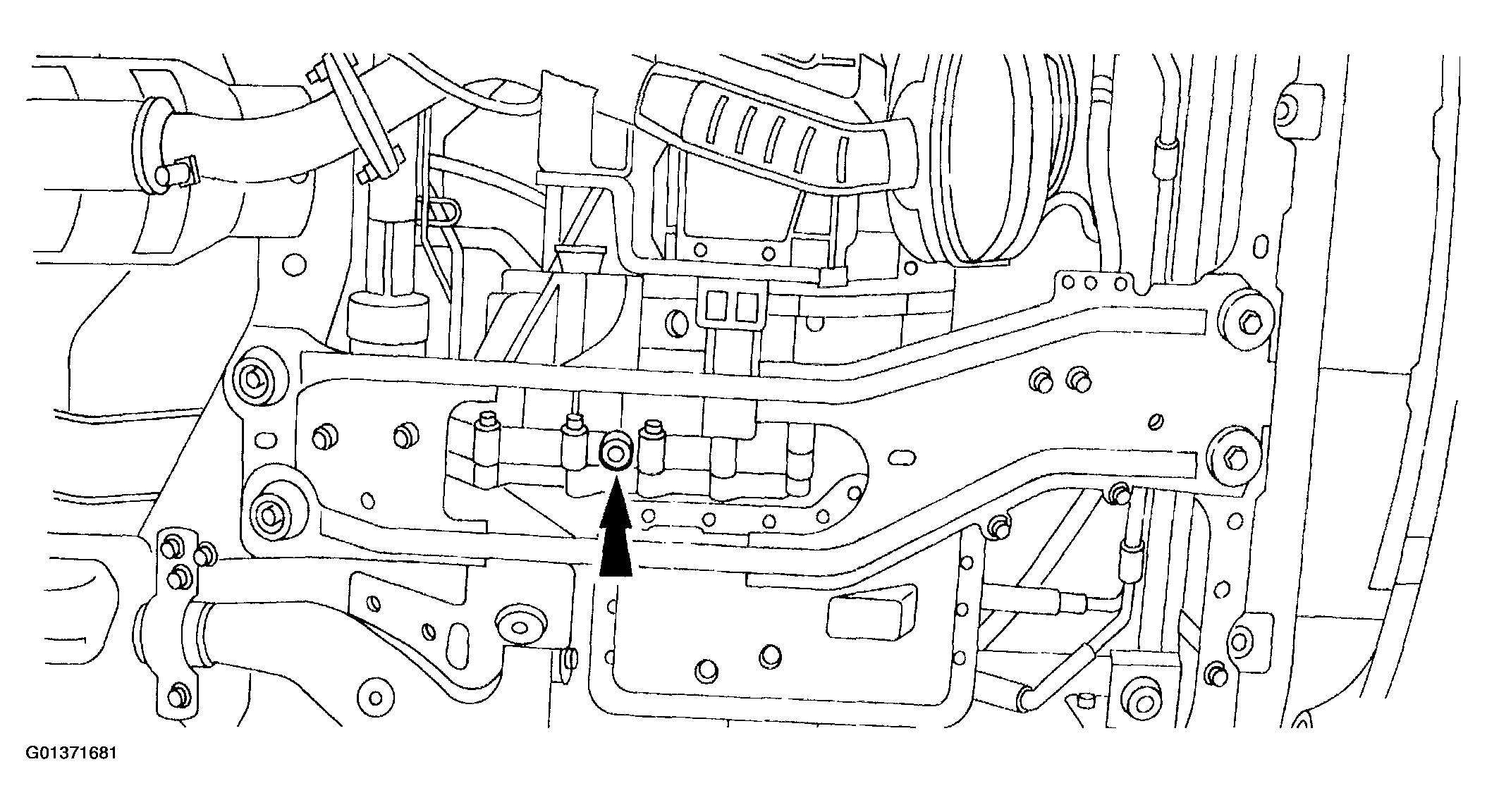

    Fig 1: Removing Transmission Case Plug And Washer
    G01371681Courtesy of FORD MOTOR CO.
  2. Remove the halfshafts; refer to AXLE SHAFTS .
  3. Carefully pry the differential seal from the transmission case.
    Fig 2: Identifying Differential Seal
    G01371682Courtesy of FORD MOTOR CO.
