Automatic Transaxle/Transmission
>>
Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body - Assembly
>>
Upper and Main Control Valve Bodies
Upper and Main Control Valve Bodies

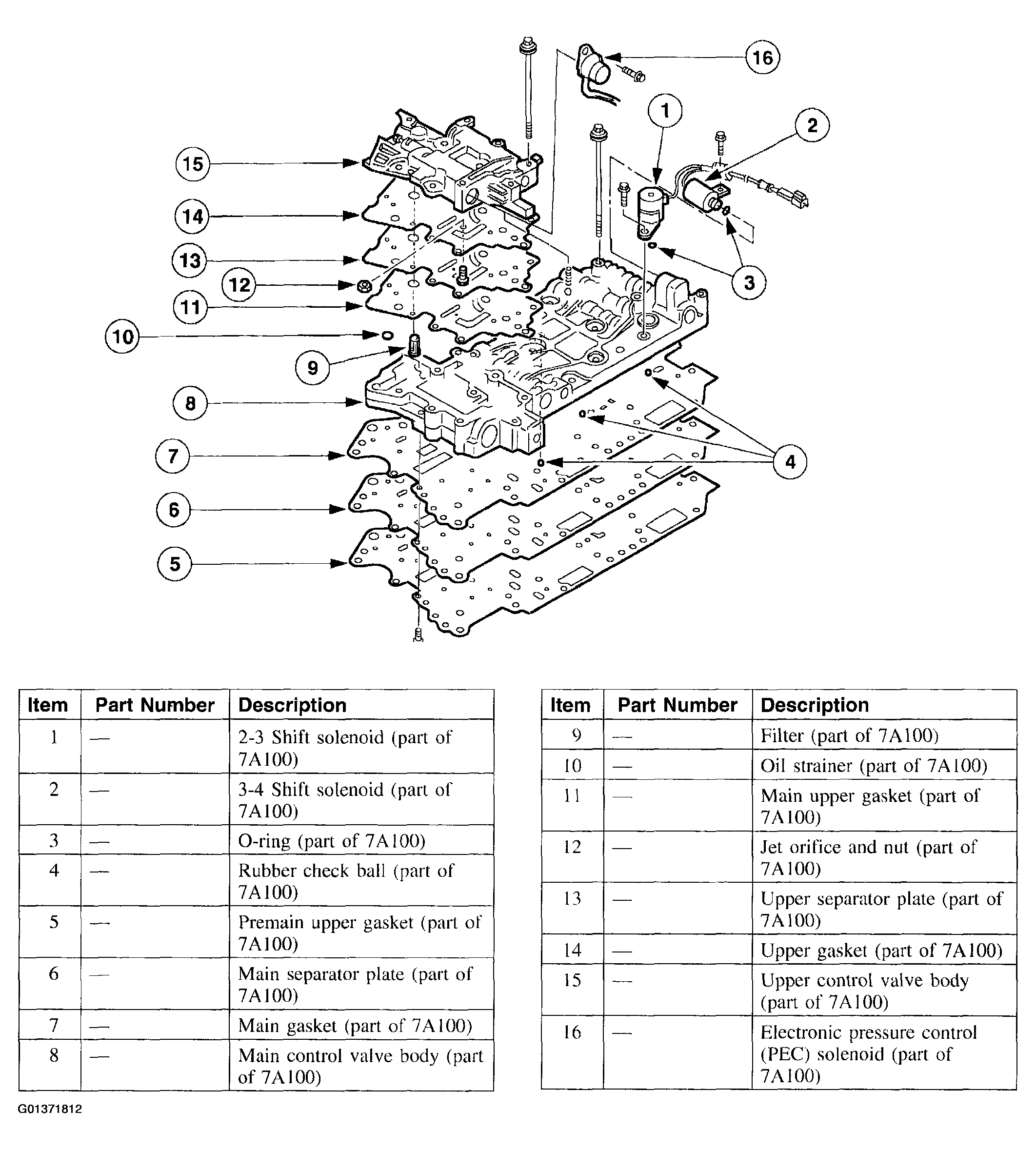

Fig 1: Disassembled View Of Upper And Main Control Valve Bodies
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
