Low/Reverse Clutch Piston Assembly - Clutch: Notes

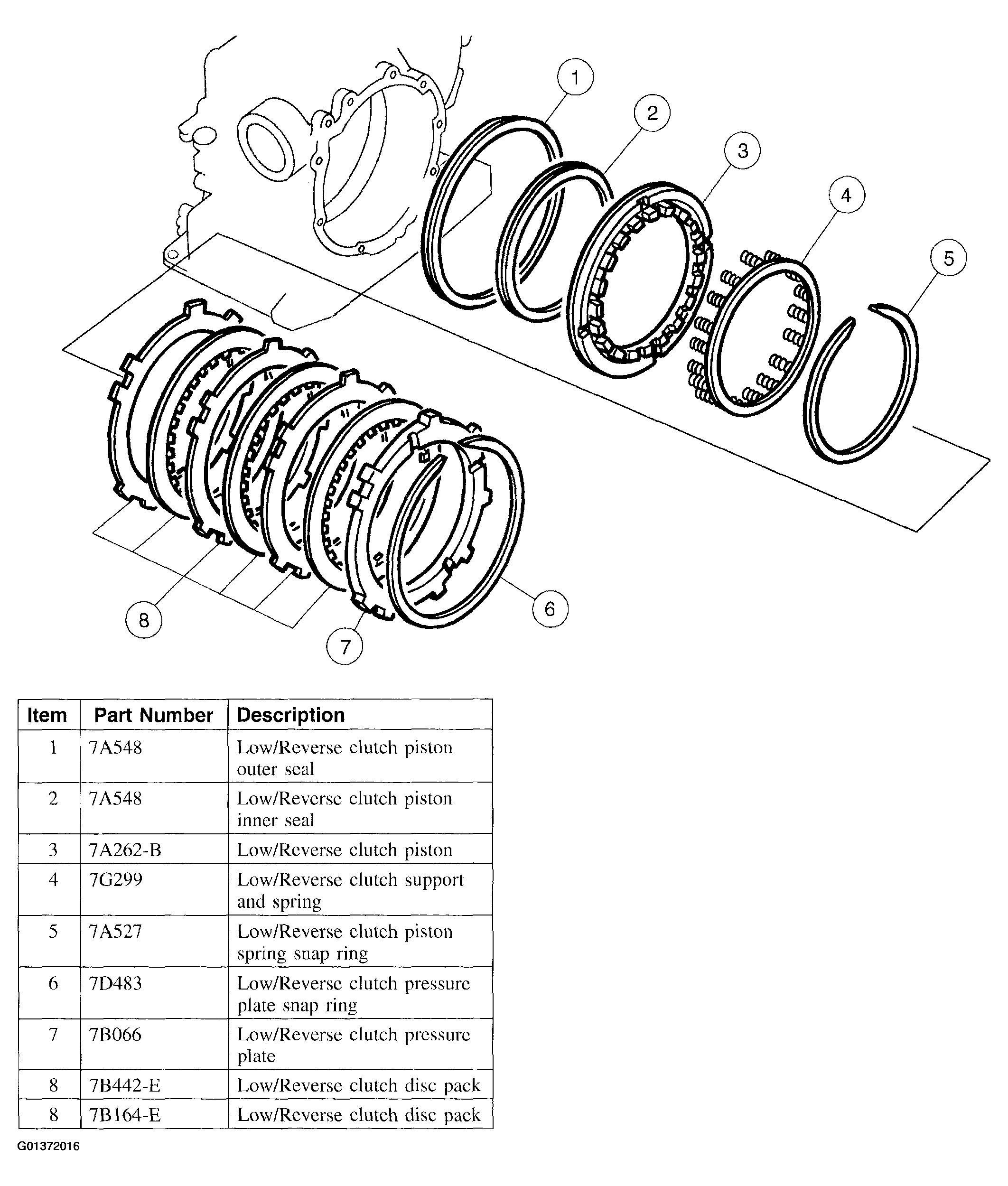

Fig 1: Exploded View Of Low/Reverse Clutch Piston Assembly - Clutch

G01372016

Courtesy of FORD MOTOR CO.
