Time Lag Evaluation Chart

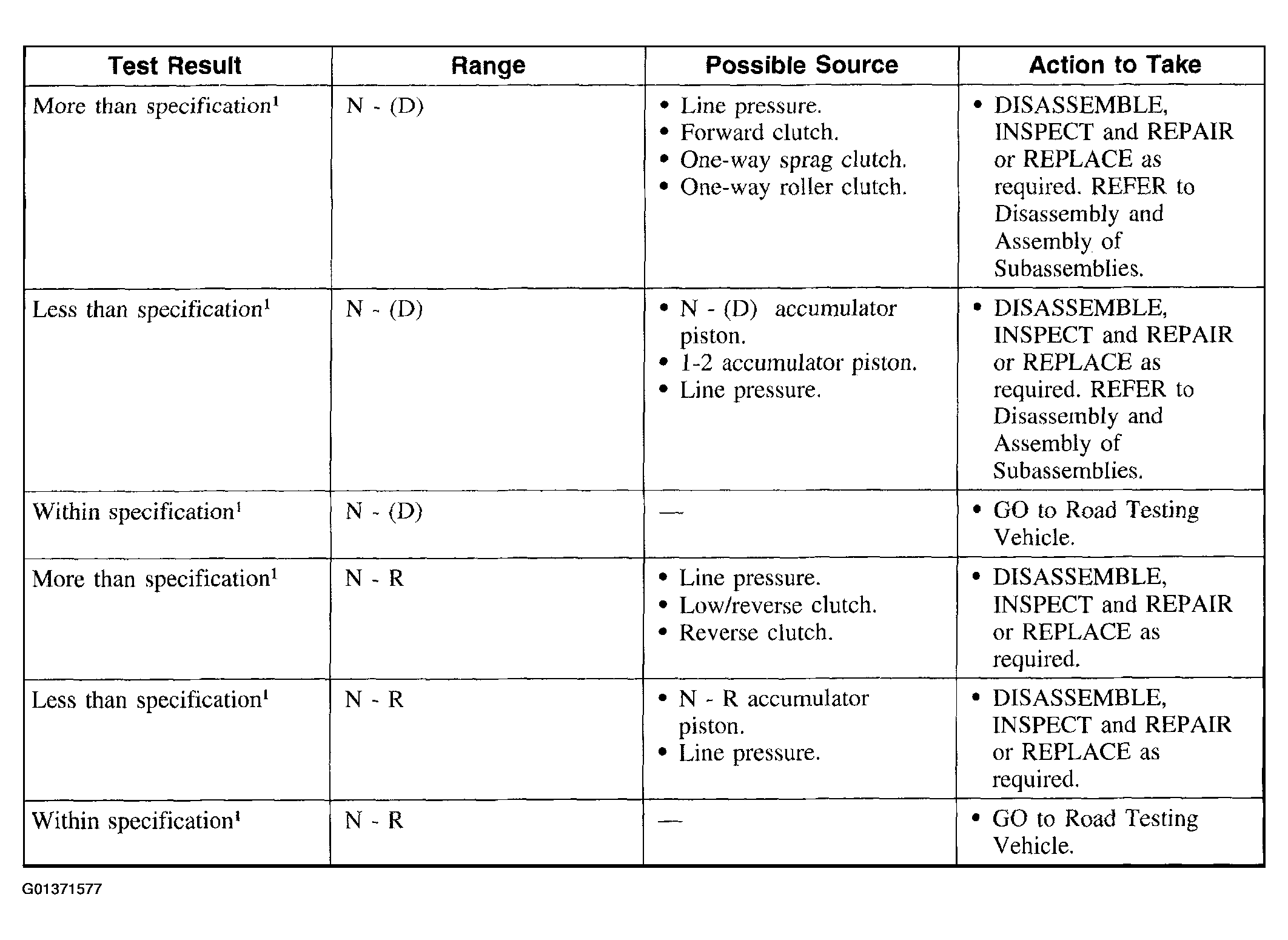

Fig 1: Time Lag Evaluation Chart
G01371577Courtesy of FORD MOTOR CO.

1 Specified Time Lag: N to (D) range below approximately 0.9 second

N to R range below approximately 1.1 second
