Removal And Installation: Pulley-2.0L: Installation

    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

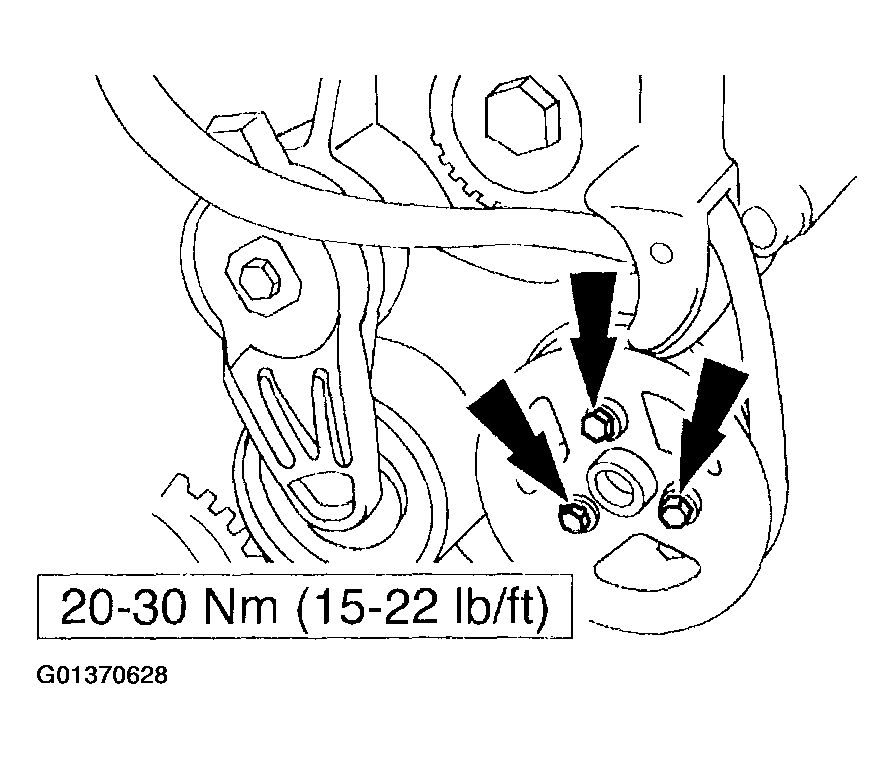

    Fig 1: Installing Power Steering Pump Pulley
    G01370628Courtesy of FORD MOTOR CO.

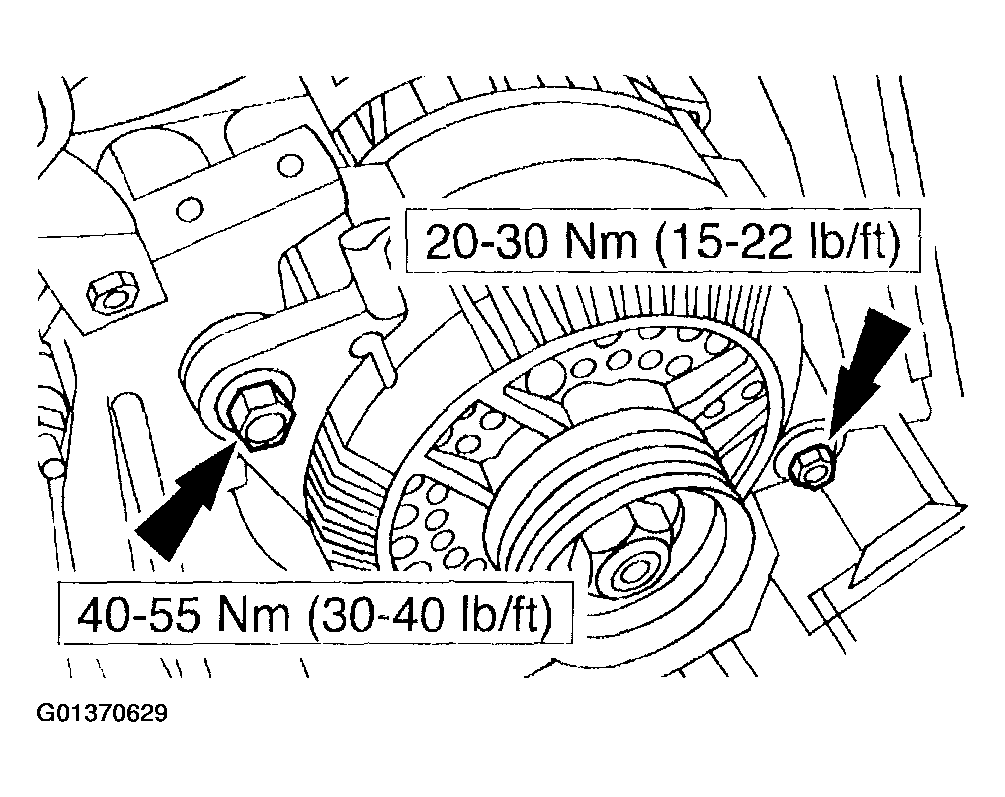

    Fig 2: Installing Generator
    G01370629Courtesy of FORD MOTOR CO.

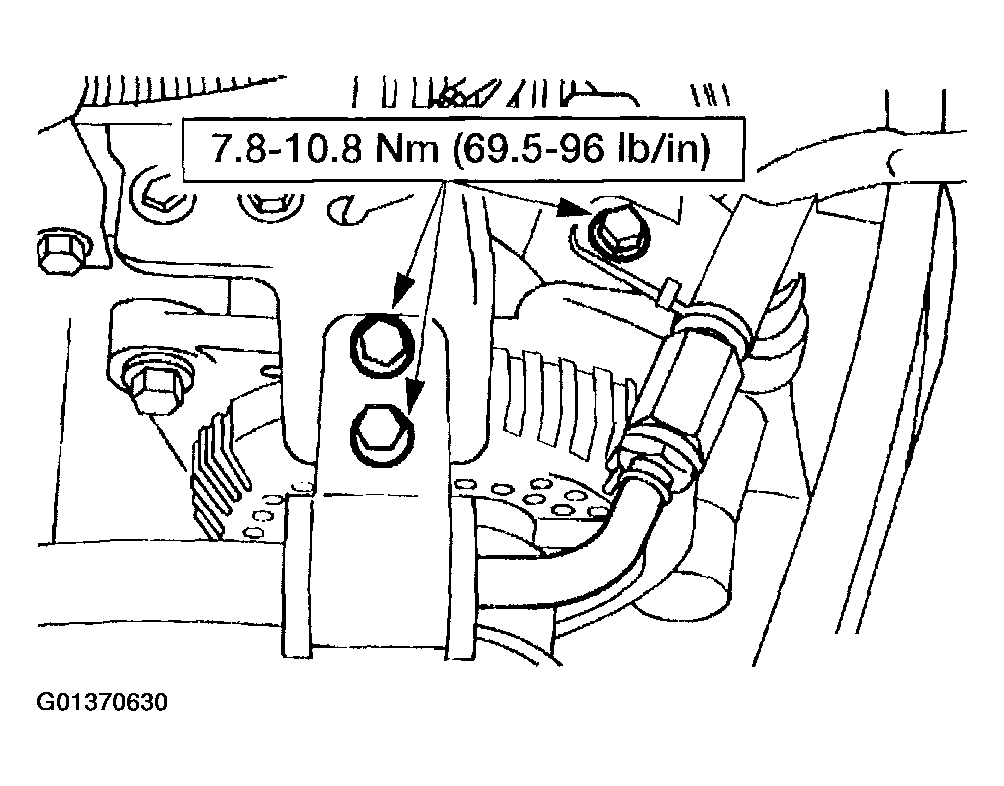

    Fig 3: Installing Power Steering Pressure Hose Bolts
    G01370630Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
