Removal And Installation: Flywheel: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Apply Threadlock and Sealer E0AZ-19554-AA or equivalent meeting Ford specifications WSK-M2G315-A5 to flywheel-to-crankshaft bolt threads before installation.

Fig 1: Positioning Flywheel Onto Crankshaft

Courtesy of FORD MOTOR CO.

Position the (A) flywheel onto the crankshaft and install the (B) flywheel-to-crankshaft bolts.
Torque the flywheel-to-crankshaft bolts in sequence to specification.

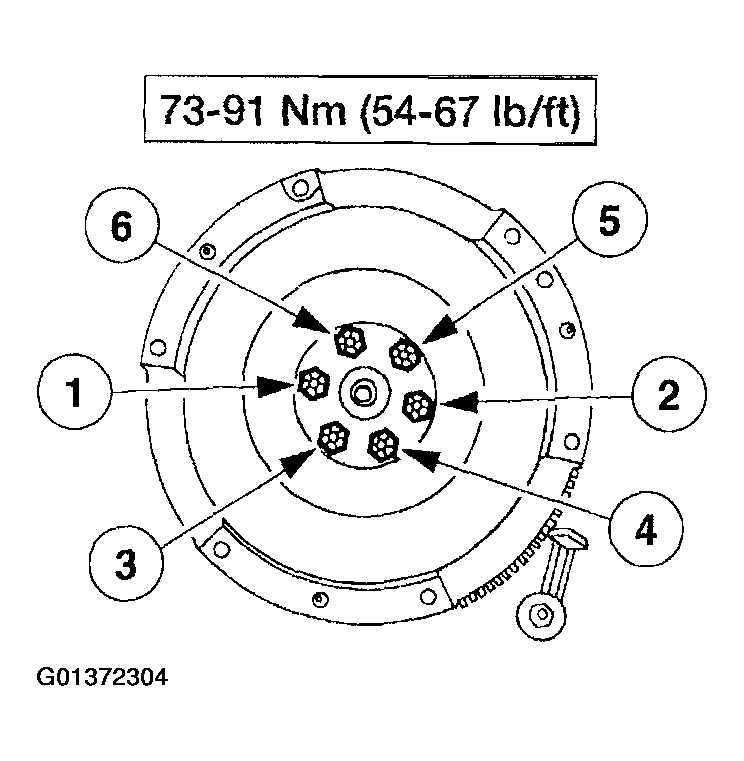

Fig 2: Flywheel-To-Crankshaft Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.
Install the clutch disc; refer to DISC AND PRESSURE PLATE .
