Removal And Installation: Switch-Deactivator: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the engine air cleaner assembly .
Disconnect the deactivator switch electrical connector.

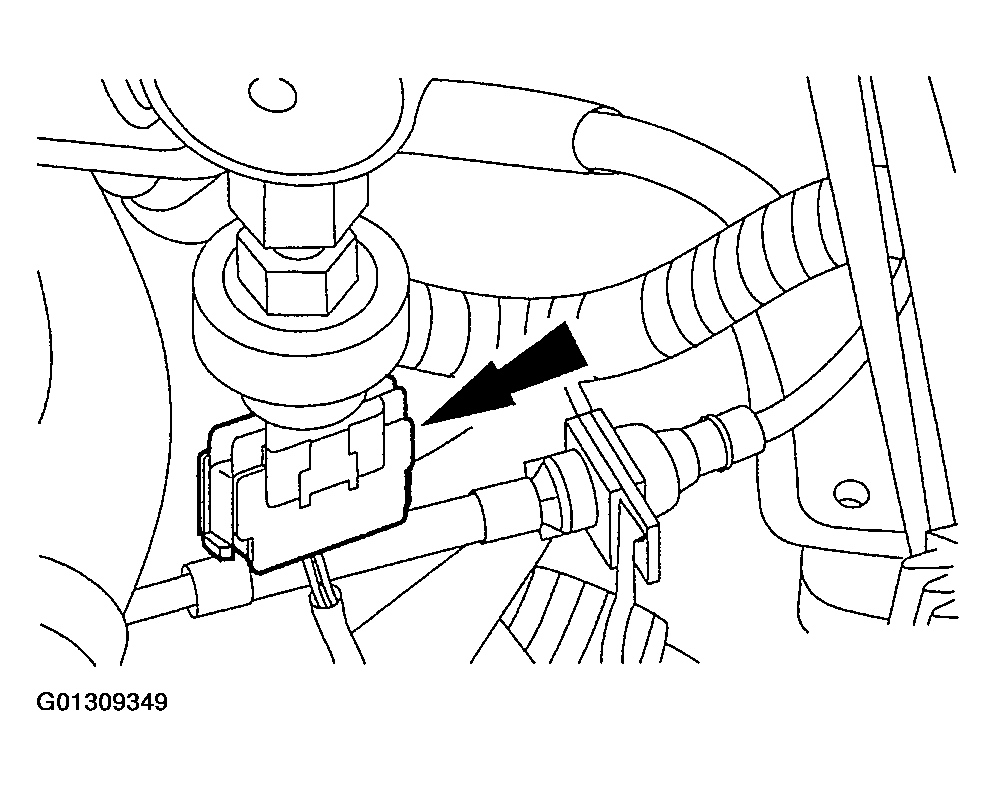

Fig 1: Disconnecting Deactivator Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the deactivator switch.

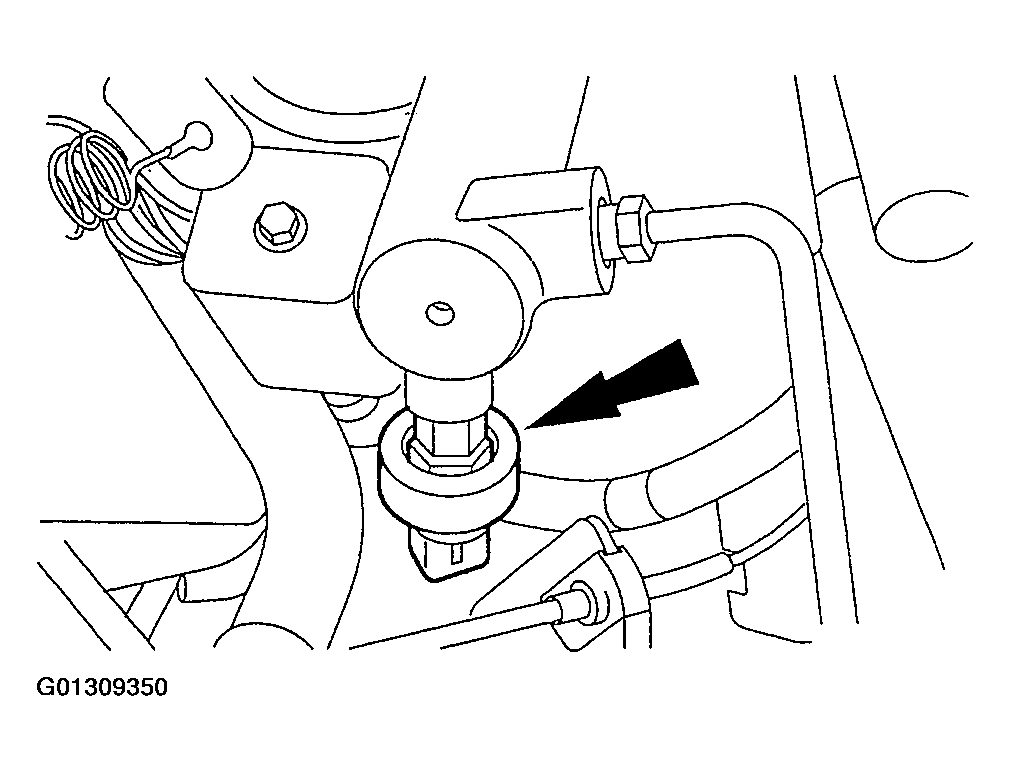

Fig 2: Removing Deactivator Switch
Courtesy of FORD MOTOR CO.
