Valve Springs: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check that there is no dirt or particles within the valve stem grooves. Check the seating of the valve collets.

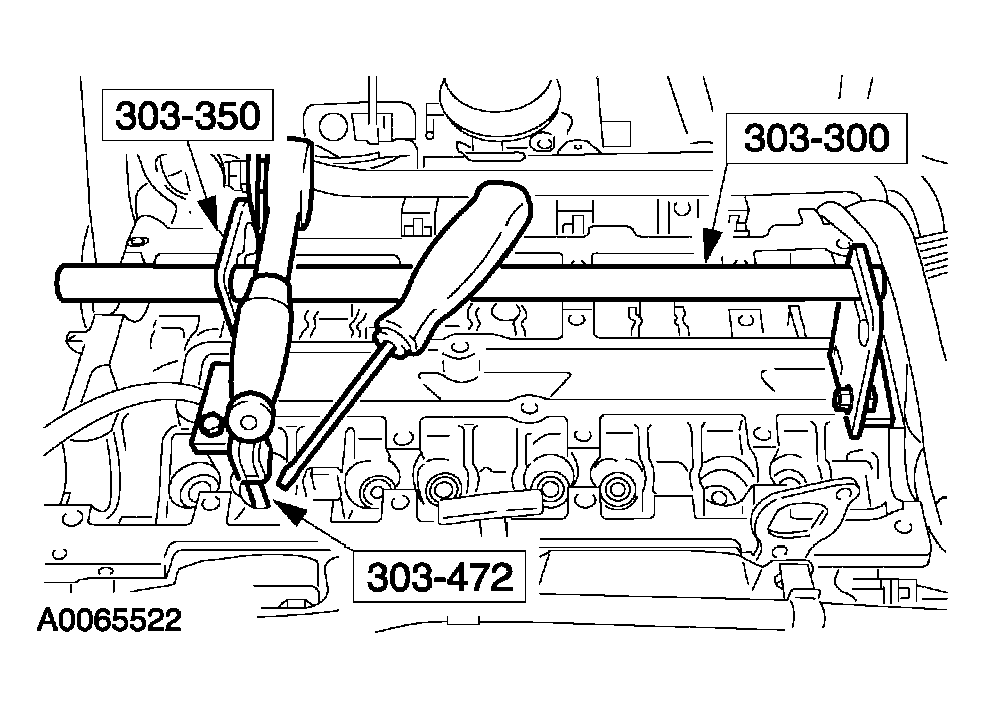

Fig 1: Installing Valve Springs

Courtesy of FORD MOTOR CO.

Using special tools install the valve springs.
- Insert the valve springs and the valve spring retainers.
- Compress the valve springs and install the valve collets.
- Disconnect and remove the air supply.
Install the valve tappets.
