Push Rod Engines

  1. Inspect the hydraulic valve tappet and roller for damage. If any damage is found, inspect the camshaft lobes and valves for damage.

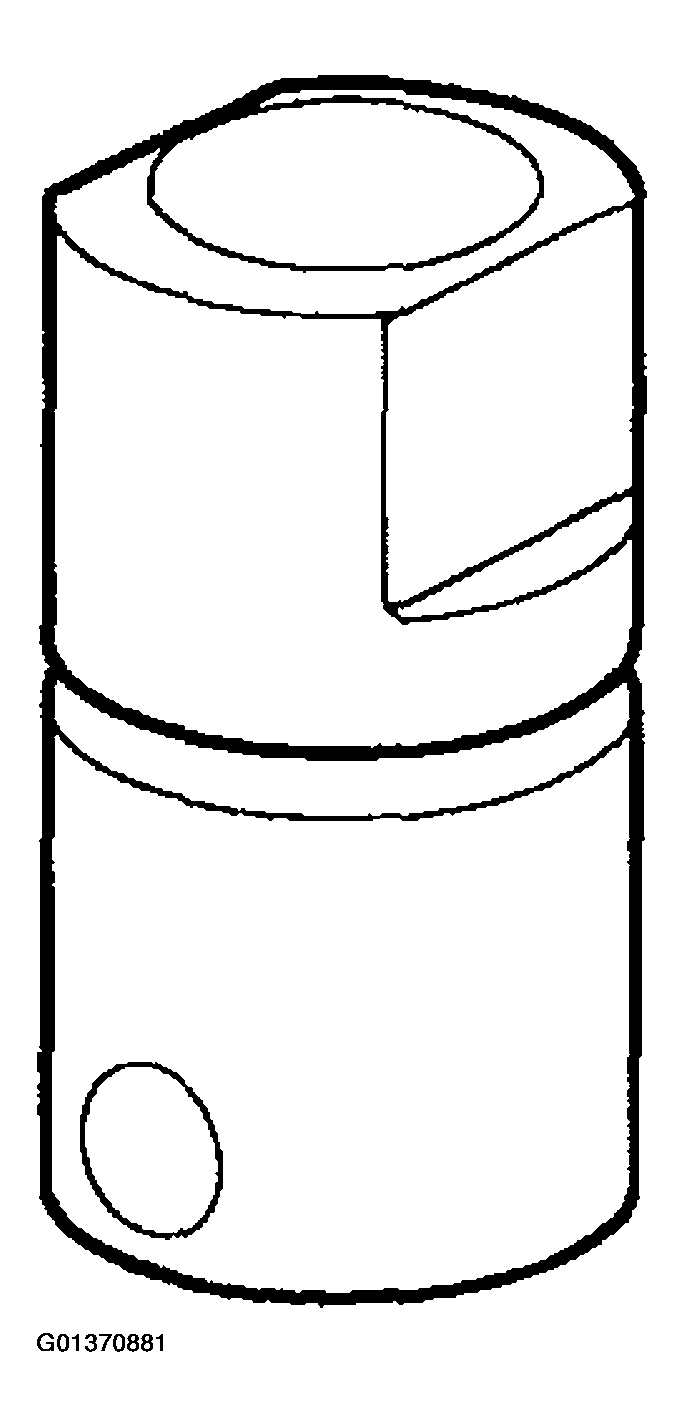

    Fig 1: Inspecting Hydraulic Valve Tappet - Push Rod Engines
    G01370881Courtesy of FORD MOTOR CO.
