Valve Seat RUNOUT

  1. Use the Valve Seat Runout Gauge to check valve seat runout.

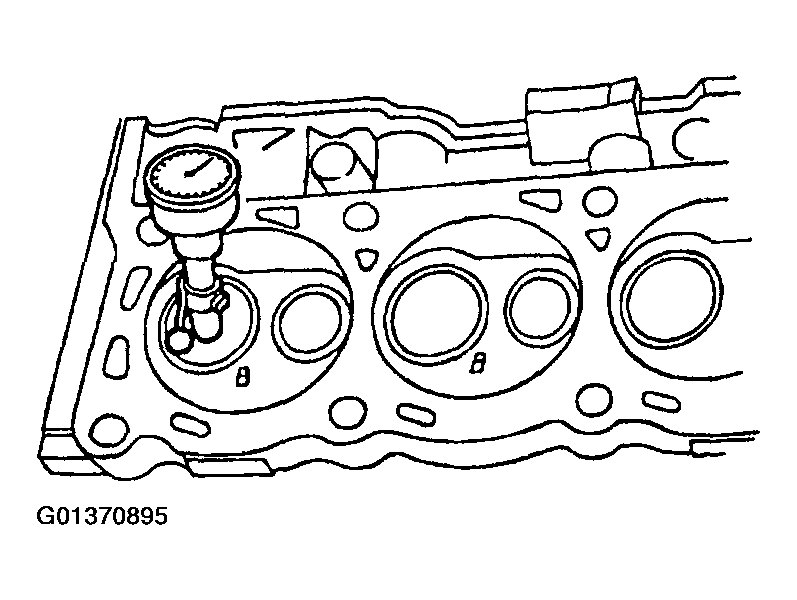

    Fig 1: Measuring Valve Seat Runout
    G01370895Courtesy of FORD MOTOR CO.
