Removal And Installation: Console-Floor: Removal

Move both front seats forward.
Remove the two screws from the parking brake console panel (one each side).

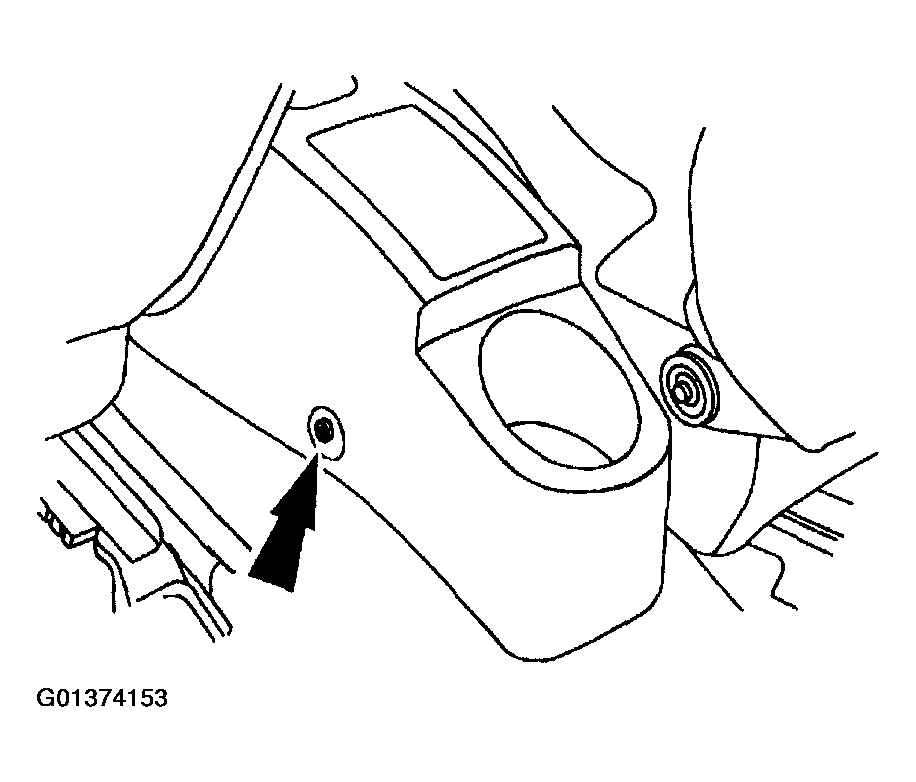

Fig 1: Removing Parking Brake Console Panel
Courtesy of FORD MOTOR CO.
Engage the parking brake.
Pull upward and remove the parking brake console panel.

Fig 2: Removing Parking Brake Console Panel
Courtesy of FORD MOTOR CO.
Position both front seats rearward.
Remove the shift console panel screws.

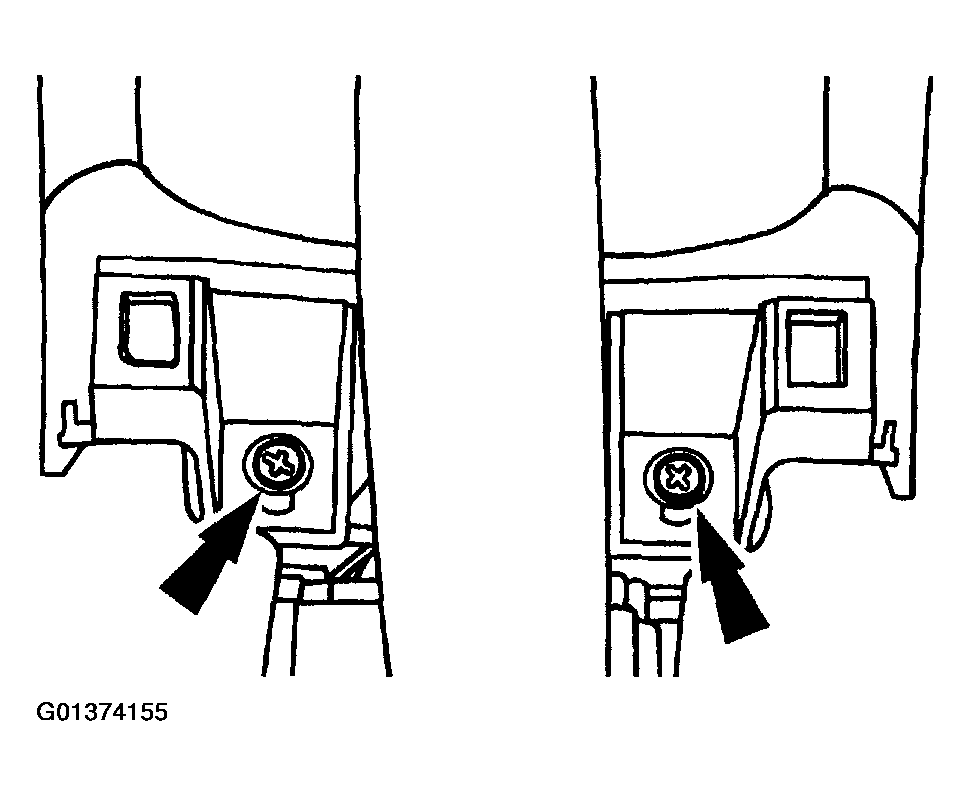

Fig 3: Removing Shift Console Panel Screws
Courtesy of FORD MOTOR CO.
Remove the four pushpins (two each side).

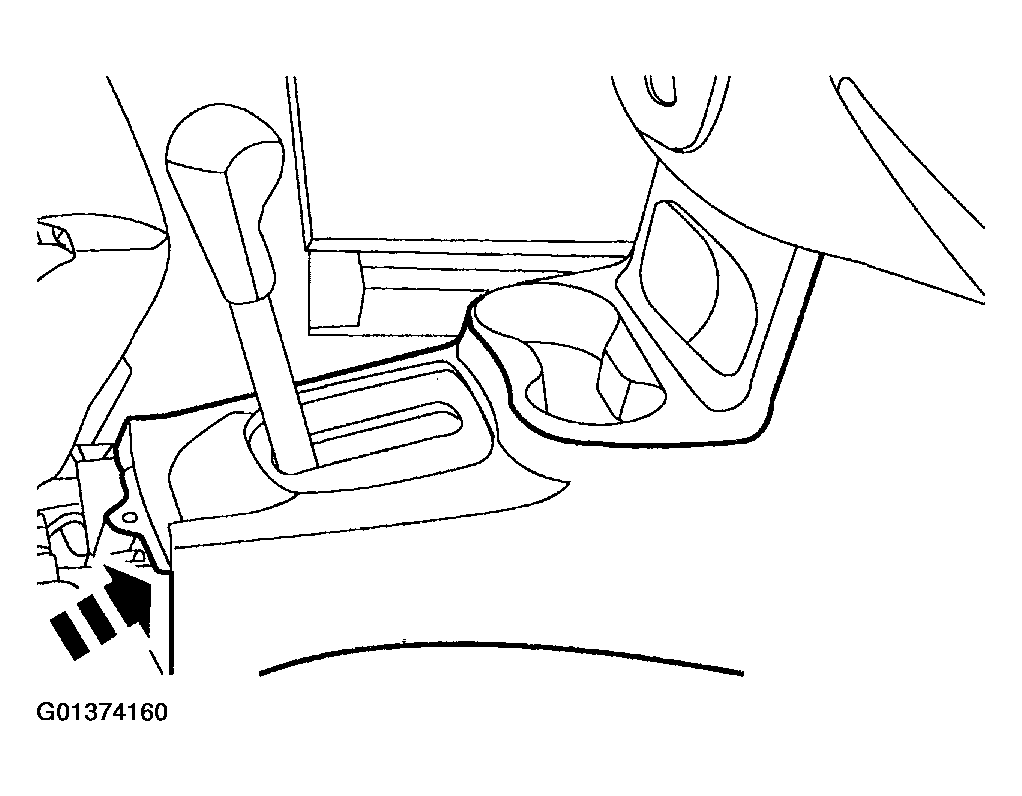

Fig 4: Removing Four Pushpins
Courtesy of FORD MOTOR CO.
Place the gearshift lever into the low (L) gear position.

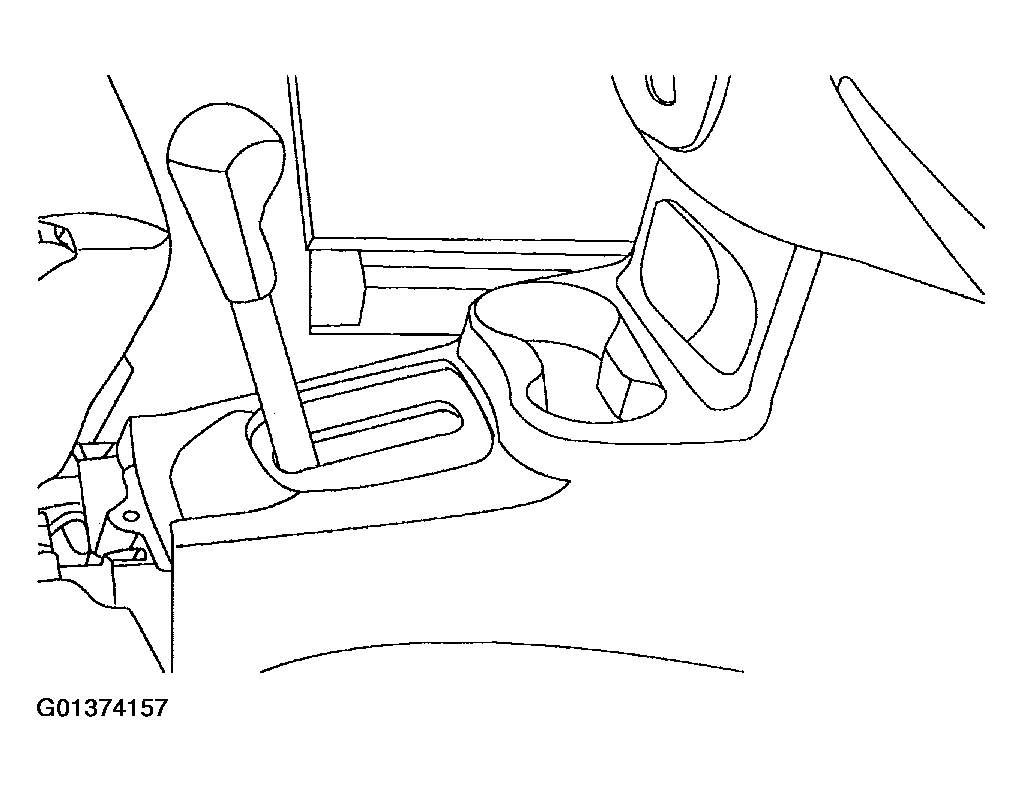

Fig 5: Placing Gearshift Lever Into The Low (L) Gear Position
Courtesy of FORD MOTOR CO.
On vehicles equipped with manual transaxle, remove the gearshift lever knob.

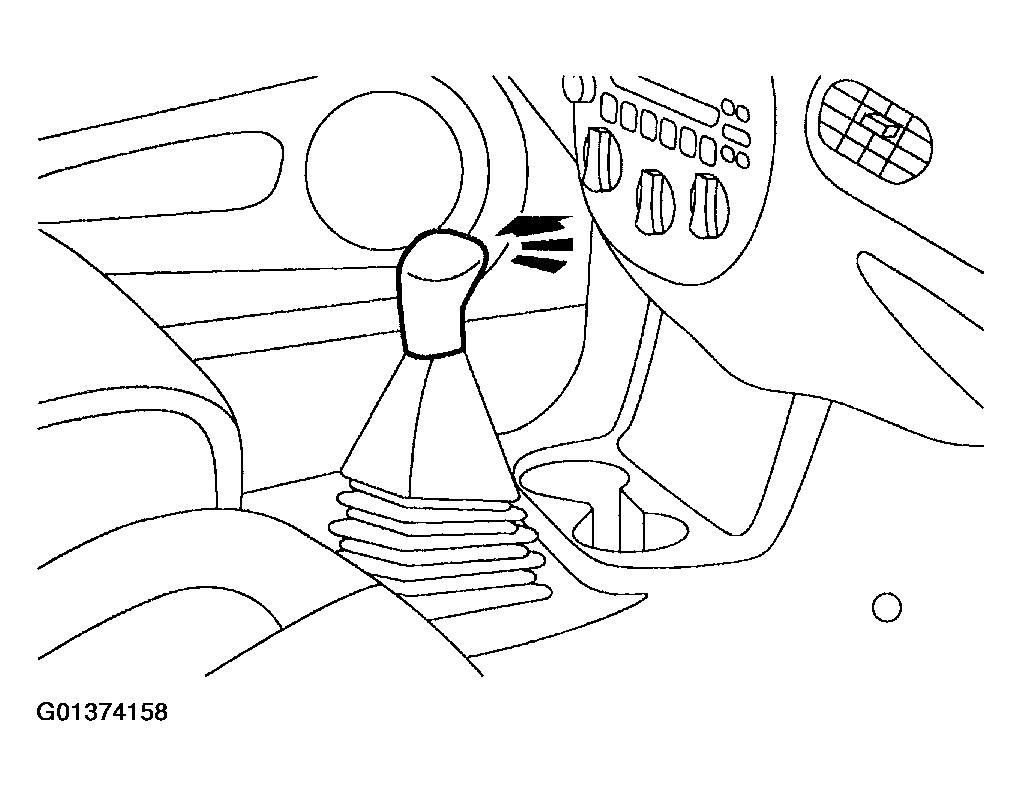

Fig 6: Removing Gearshift Lever Knob
Courtesy of FORD MOTOR CO.
Remove the beverage holder from the shift console base.

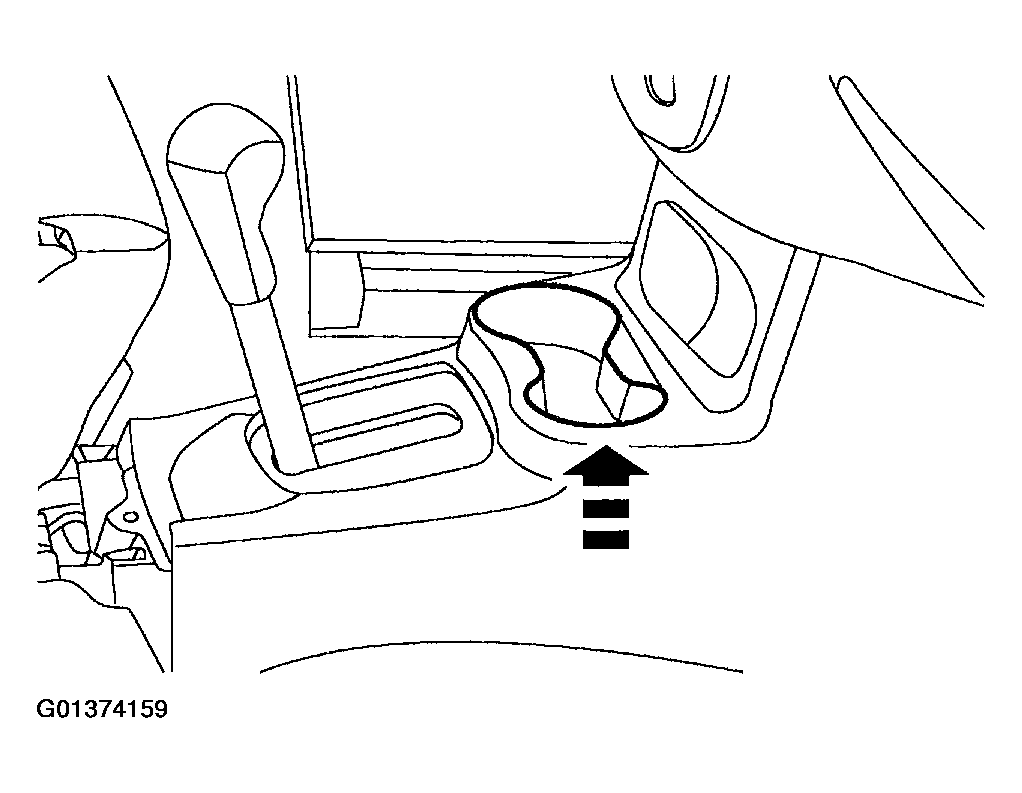

Fig 7: Removing Beverage Holder From Shift Console Base
Courtesy of FORD MOTOR CO.
Lift upward and remove the shift console panel.

Fig 8: Lifting Upward And Remove Shift Console Panel
Courtesy of FORD MOTOR CO.
Place the gearshift lever in the PARK (P) position.
