Switch-Window Regulator Control, Coupe: Removal

  1. Remove the front door pull handle applique.
    1. Remove the screw covers.
    2. Remove the screws.
    3. Remove the pushpin.

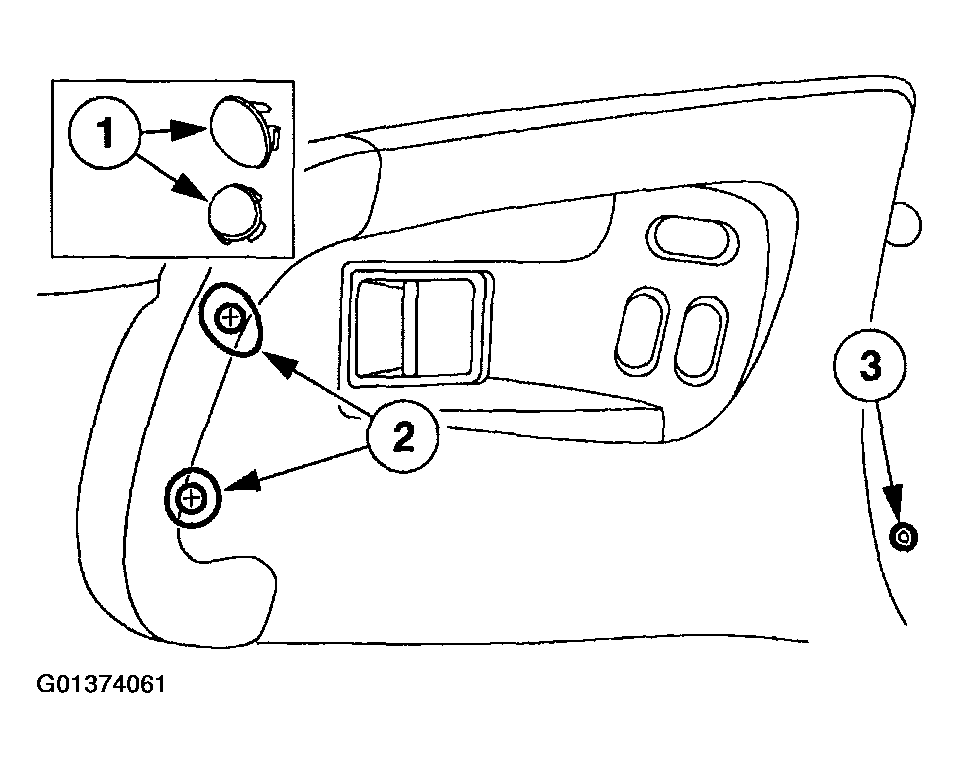

    Fig 1: Removing Front Door Pull Handle Applique
    G01374061Courtesy of FORD MOTOR CO.
  2. Disconnect the window regulator control switch electrical connector.

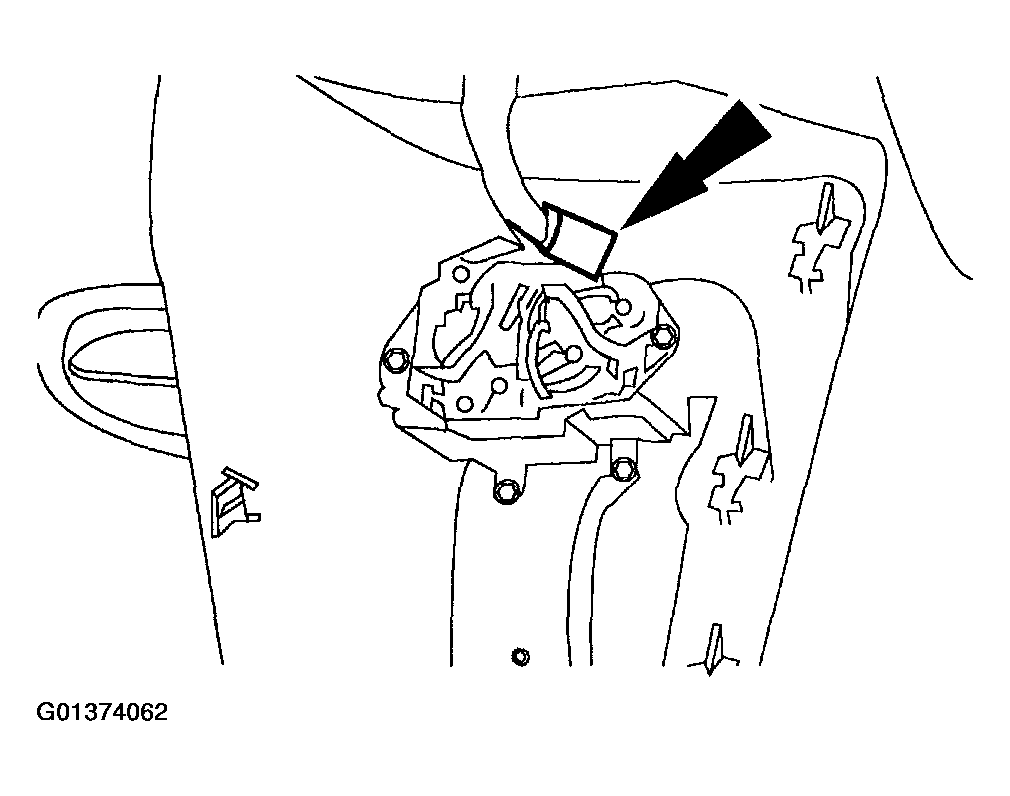

    Fig 2: Disconnecting Window Regulator Control Switch Electrical Connector
    G01374062Courtesy of FORD MOTOR CO.
  3. Remove the screws and remove the front window regulator control switch (14529).

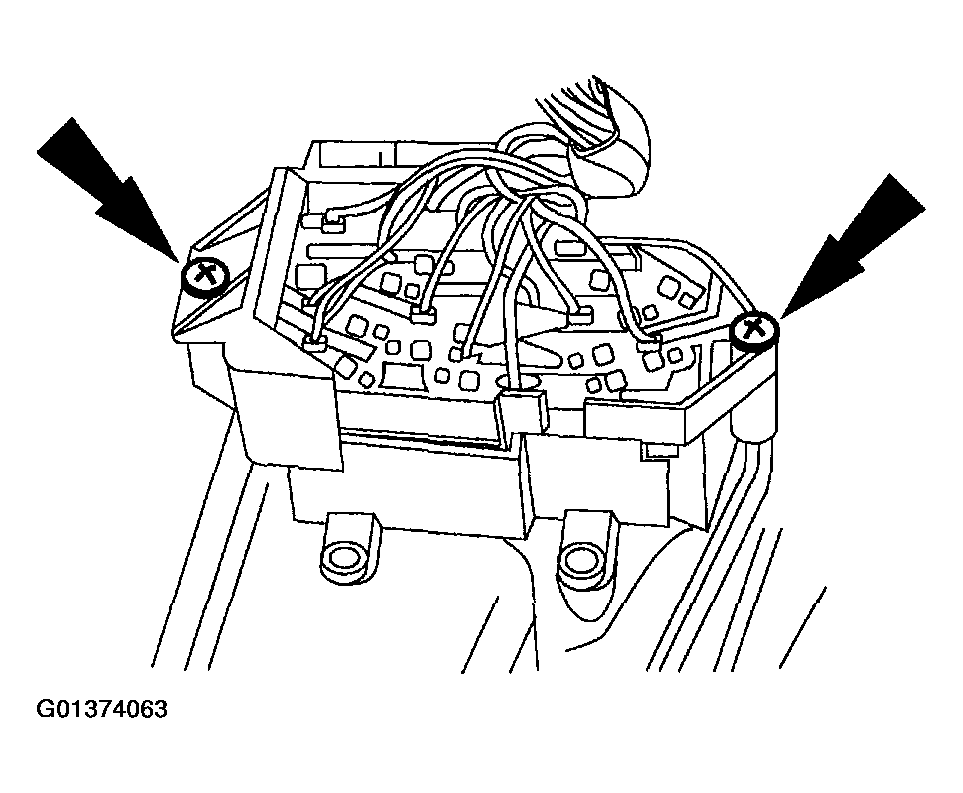

    Fig 3: Removing Front Window Regulator Control Switch
    G01374063Courtesy of FORD MOTOR CO.
