Horizontal Adjustment

  1. Verify that the sliding roof panel front gap is within specification.
    Fig 1: Verifying Sliding Roof Panel Front Gap Is Within Specification
    G01374328Courtesy of FORD MOTOR CO.
  2. Remove the lower panel cover.

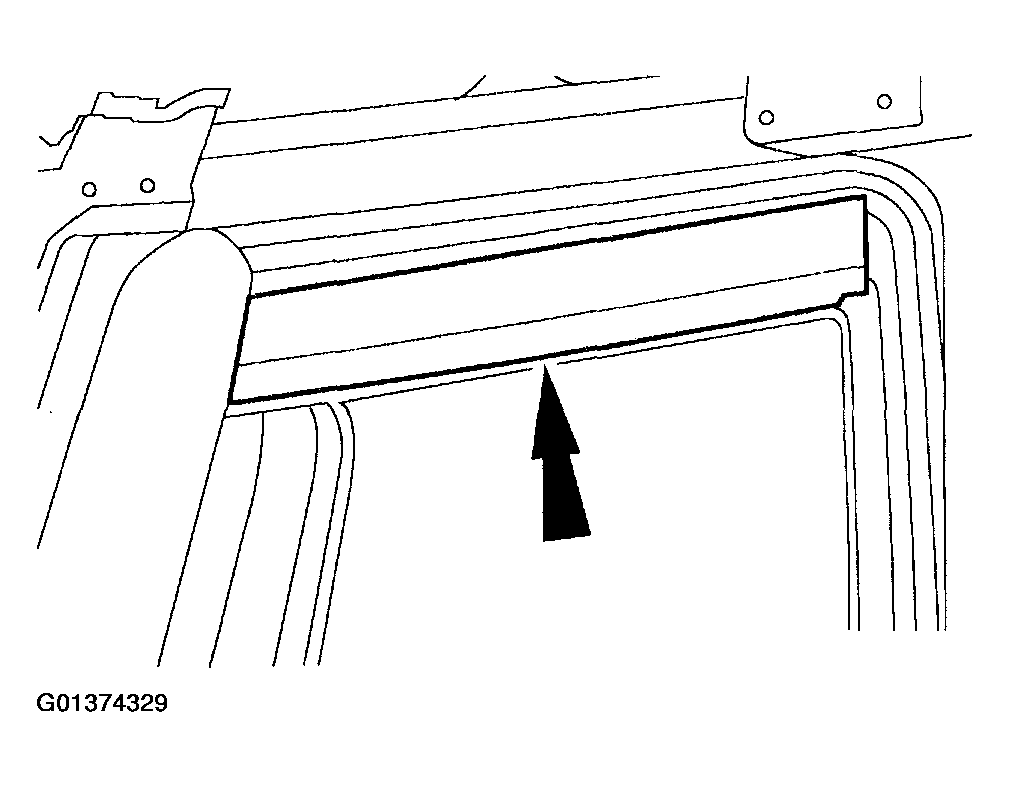

    Fig 2: Removing Lower Panel Cover
    G01374329Courtesy of FORD MOTOR CO.
